5. Assembly
44 PNEG-750-G2 16" Series II Sweep 131' and 135' Diameter
C. Connect the 3/4" x 48" liquid-tight flex conduit to the drive end of the 3/4" rigid conduit using one
3/4" conduit coupling and one 3/4" liquid-tight flex conduit coupling. (See Figure 5AB.)
1. Thread a 3/4" conduit coupling onto the 3/4" rigid conduit. (See Figure 5AB.)
2. Thread a 3/4" flex conduit coupling body onto the 3/4" conduit coupling. (See Figure 5AB.)
3. Slide a 3/4" flex conduit coupling cap onto the 3/4" flex conduit followed by a plastic ring.
(See Figure 5AB.)
4. Thread a steel ring into the 3/4" flex conduit. (See Figure 5AB.)
5. Thread the 3/4" flex conduit coupling cap onto the 3/4" flex conduit coupling body.
(See Figure 5AB.)

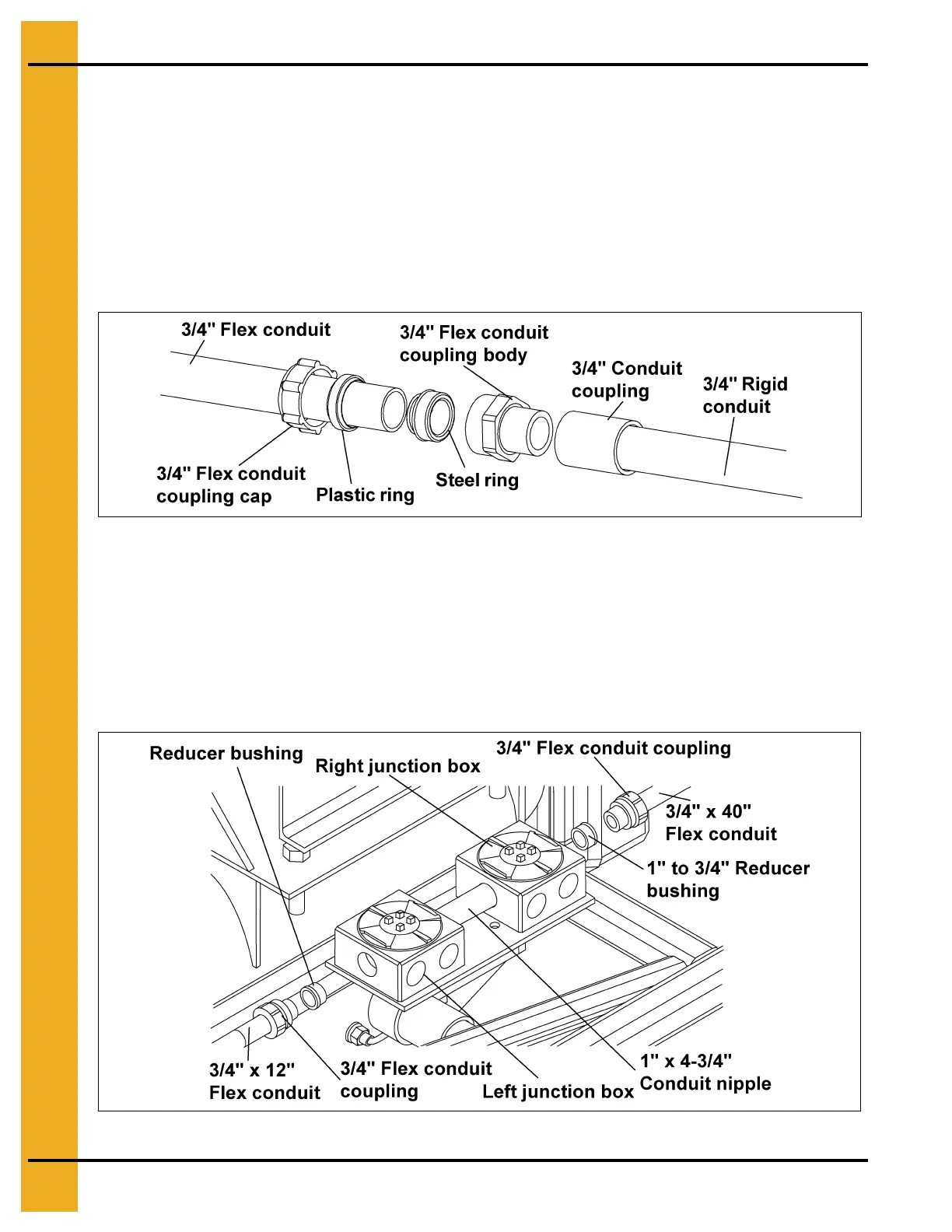

Figure 5AB
D. Attach the 3/4" x 12" liquid-tight flex conduit to the other end of the rigid conduit using one 3/4"
conduit coupling and one 3/4" liquid-tight flex conduit coupling. (See Figure 5AC.)
E. Connect the two (2) junction boxes together using the 1" x 4-3/4" conduit nipple. (See Figure 5AC.)
F. Connect the 3/4" x 12" liquid-tight flex conduit to the left junction box using one 3/4" liquid-tight flex
conduit coupling and one 1" to 3/4" reducer bushing. (See Figure 5AC.)
G. Attach the 3/4" x 40" liquid-tight flex conduit to the right junction box using one 3/4" liquid-tight flex
conduit coupling and one 1" to 3/4" reducer bushing. (See Figure 5AC.)
Figure 5AC
