GST100 Intelligent Fire Alarm Control Panel
Installation and Operation Manual
Page 2

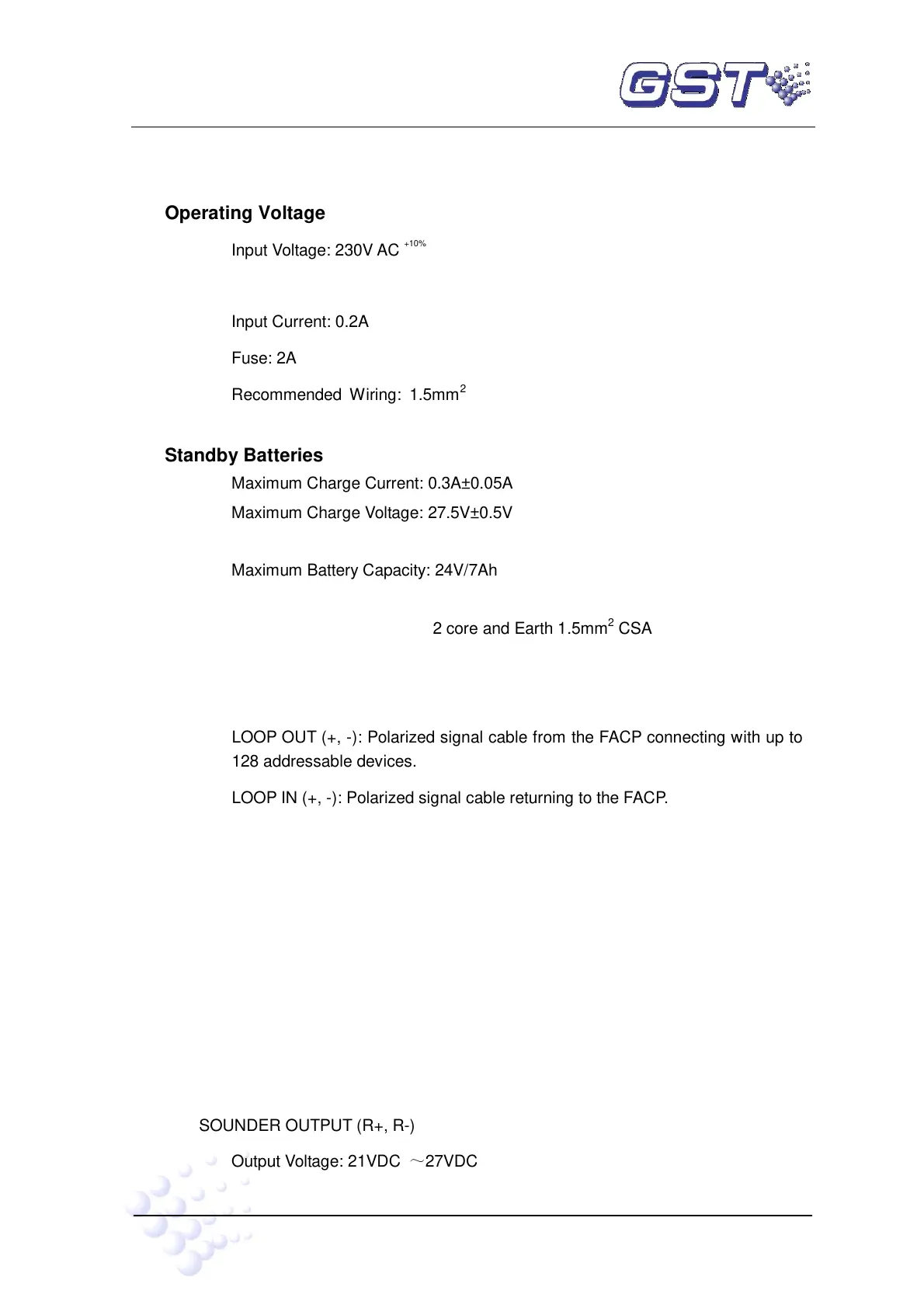

Chapter 2 Technical Specifications
2.1 Operating Voltage
 Input Voltage: 230V AC
+10%
-15%
 Frequency: 50Hz
 Input Current: 0.2A
 Fuse: 2A
 Recommended Wiring: 1.5mm
2
or above shield cable, complying with local
installation code.
2.2 Standby Batteries
 Maximum Charge Current: 0.3A±0.05A
 Maximum Charge Voltage: 27.5V±0.5V
 Type: Sealed lead acid batteries
 Maximum Battery Capacity: 24V/7Ah
 Recommended Wiring:
GST FireCable ® 2E/1.5 2 core and Earth 1.5mm
2
CSA
Pirelli Cable Limited FP200 FLEX 2 core and Earth 1.5mm
2
CSA
2.3 Detecting Loop Parameters
 LOOP OUT (+, -): Polarized signal cable from the FACP connecting with up to
128 addressable devices.
 LOOP IN (+, -): Polarized signal cable returning to the FACP.
 Type of loop: Class A
 Recommended Wiring:
GST FireCable ® 2E/1.0 2 core and Earth 1mm
2
CSA
Pirelli Cable Limited FP200 FLEX 2 core and Earth 1mm
2
CSA
2.4 Output Loop Parameters
Recommended Wiring:
GST FireCable ® 2E/1.0 2 core and Earth 1mm
2
CSA
Pirelli Cable Limited FP200 FLEX 2 core and Earth 1mm
2
CSA
1 SOUNDER OUTPUT (R+, R-)
 Output Voltage: 21VDC ～27VDC
