GTO 2002XLS - Installation Tools and Materials

GTO 2002XLS Instruction Manual © 01.12.12 5

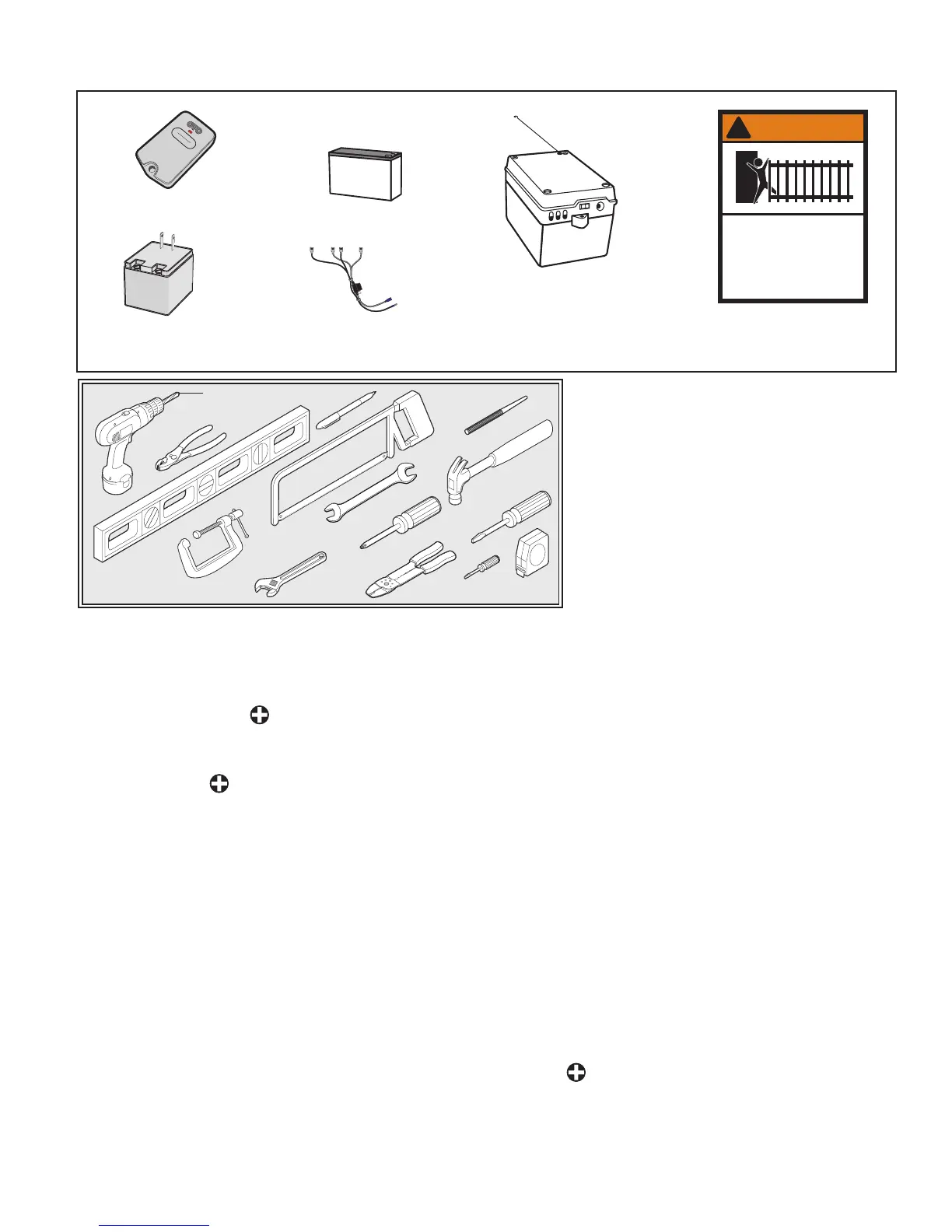

Transformer (1)
Warning Signs (4)
GTO Transmitter(1)
1. KEEP CLEAR! Gate may move at any time.
2. Do not allow children to operate gate or
play in gate area.
3. This gate is for vehicles only. Pedestrians
must use a separate entrance.
Moving Gate Can Cause
Injury Or Death
WARNING
!
Wire Harness (1)
Battery (1)
Control Box w/
Battery Box (1)
7. Materials You may Need for the Installation:
Depending on the type of gate and post, you may need some additional materials/hardware.
 •Lowvoltagewire
[RB509]. Length depends upon the distance between the transformer power
supply and the control box. (Page 15)
 •Ifthegateismorethan1000’awayfromanACpowersourceyouwillneedtouseatleastone5watt
Solar Panel
[FM122] to trickle charge the battery. (Page 2)
 •PVCConduit.(Page6)
 •Thediameterofthepostshouldbeatleast6”inordertomountthepostbracket.(Page9)
 •Dependinguponthediameterofthepost,youmayneedlongerboltsthanthoseprovided.Bolts
should be at least 1” longer than the diameter of the post. (Page 9)
 •Metalplateforwoodenposts.(Page9)
 •Ahorizontalorverticalcrossmemberormountingplatemaybeneededtomounttheoperatortothe
gate. (Page 3)
 •SometypesofinstallationsrequireU-Bolts.(Page11)
 •Surgeprotectionfortransformer.(Page17)
 •Weatherproofcoverfortransformerifinstalledoutside.(Page17)
 •Forpush-to-openapplicationsyoumusthavePTOBracket
[347IH). (Page 20)
Drill Bit
Drill
Pliers
Level
Small, Medium, Large
Clamps
Adjustable
Wrench
Pen
Center
Punch
Hammer
Tape
Measure
Small
Flat Head
Phillips Head
Screwdriver
Flat Head
Screwdriver
Wire
Stripper
Hack Saw
Open End Wrenches
6. Tools Needed
•PowerDrill •Pliers
•Level •TapeMeasure
•WireStrippers •CenterPunch
•OpenEndWrenches:9/16”and1/2”
•DrillBits:3/8”
•HacksaworHeavyDutyBoltCutters
•Small(FlatHead)Screwdriver
•PhillipsScrewdriver
•C-Clamps:small,medium,andlarge
•AdjustableWrench
•Extrapersonwillbehelpful
