GDS-800 Series Digital Storage Oscilloscope Operation Manual
25

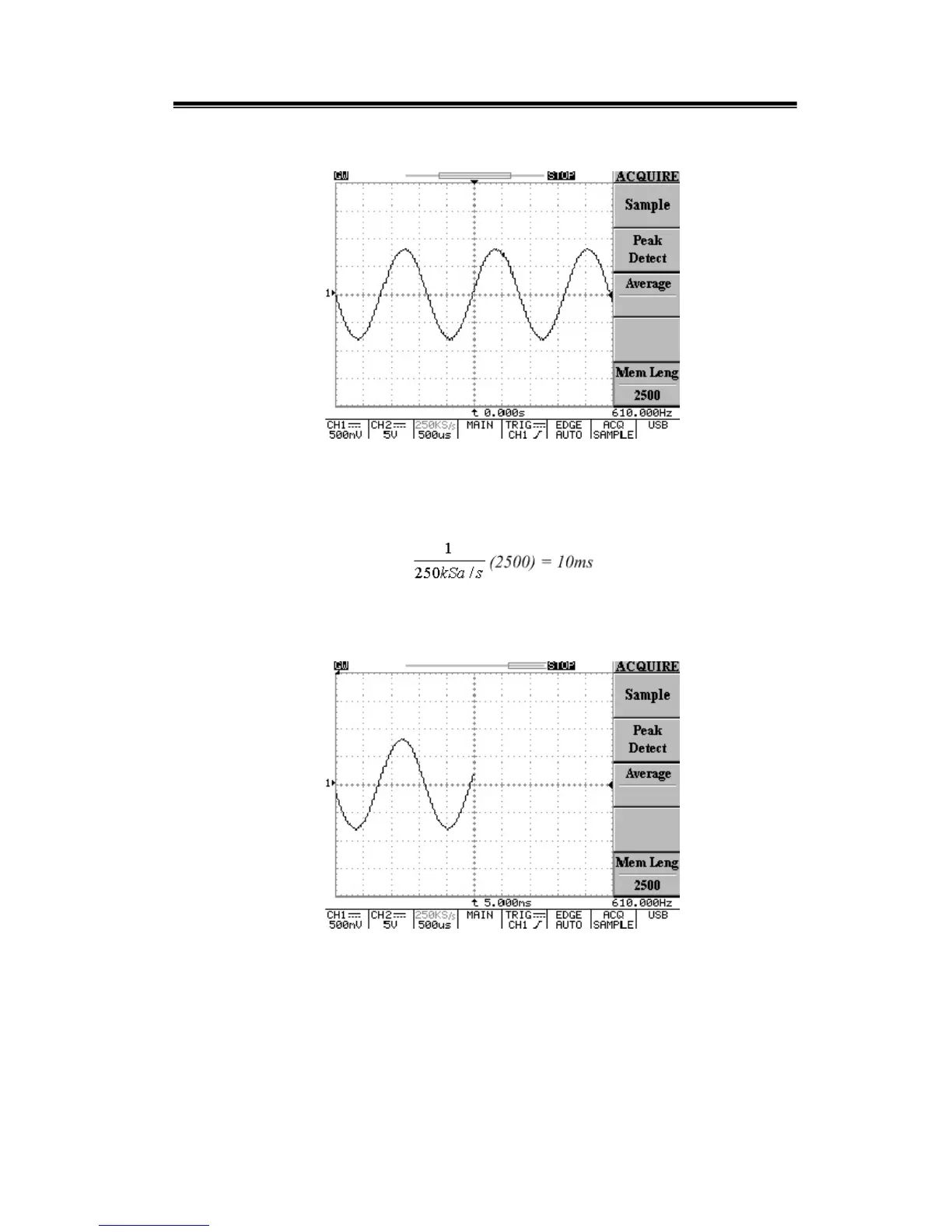

For example, a signal is display on the screen as figure 5-8.
Figure 5-8: The stopped waveform
The sample rate is 250kS/s and the record length is 2500, according the formula we
have
There are 10ms of data in the waveform record. Users may change the “delay
trigger indicator” to observe the total waveform record.
Figure 5-9: Increasing “delay trigger indicator” shifts the waveform to the left
