GW Instek GPT-12004 - GPT-10000 Series Overview

GPT-10000 Series Quick Guide
10

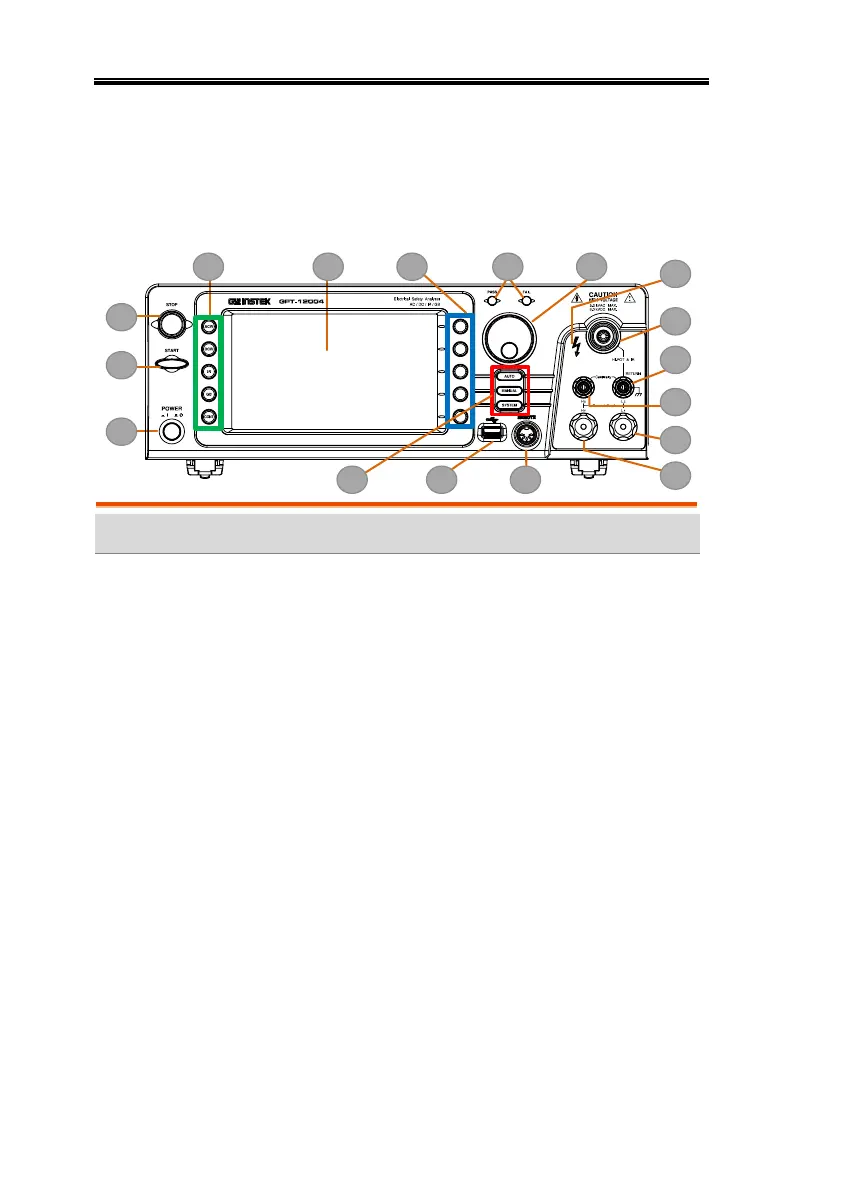

Front Panel Overview
GPT-12001/12002/12003/12004
1
2
3
4 5
6
7
8
9
0
A
B
C
D
E
F
G
Item
Description
1
STOP Button
2
START Button
3
POWER Switch
4
Test Function Keys (Green Zone)
5
Display
6
Mode Keys (AUTO, MANUAL, SYSTEM in Red Zone)
7
Soft Keys (Blue Zone)
8
USB A-Type Host Port
9
PASS/FAIL Indicators
0
REMOTE Terminal
A
Scroll Wheel
B
HIGH VOLTAGE Indicator
C
HIGH VOLTAGE Output Terminal
D
SENSE L & RETURN Terminal
E
SENSE H & Output Terminal
F
SOURCE L (GPT-12004 only)
G
SOURCE H (GPT-12004 only)
