GW Instek GPT-12004 Quick Start Guide

GPT-10000 Series Quick Guide
14
CONT Connection
Background

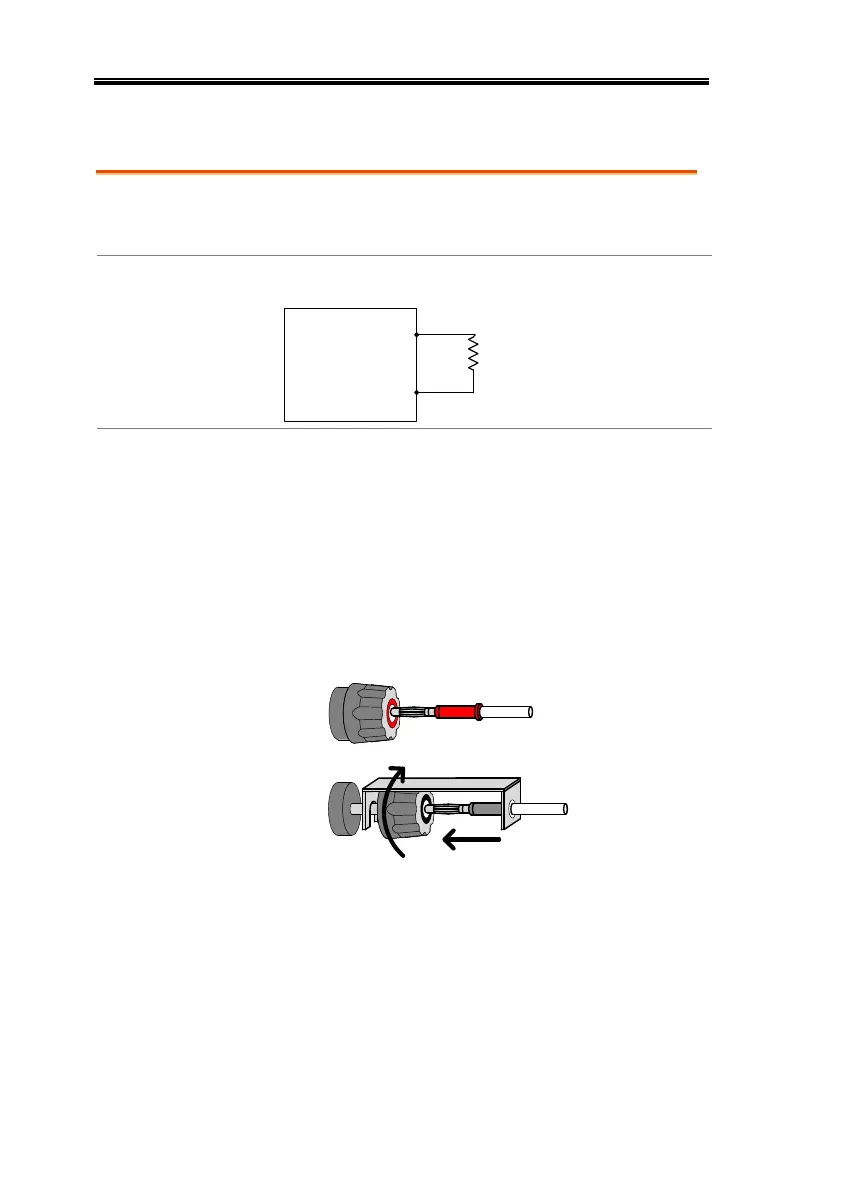

CONT tests use the OUTPUT and RETURN
terminals with the GTL-115 test leads.
GONT
Connection
DUT
GPT-12000
Return terminal
Output
Steps
1. Turn the power off on the safety tester.
2. Connect the OUTPUT test lead (red) to the
OUTPUT terminal.
3. Connect the RETURN test lead (black) into the
RETURN terminal and screw the protector bar
into place, as shown below.
OUTPUT
Terminal
RETURN
Terminal
