OPERATION
15
OPERATION
This section describes the overview of the operation modes along
with statuses for the GPT-12000 safety testers. The testers have two
main testing modes (MANU, AUTO), one system mode (SYSTEM)
and 5 main operation statuses (READY, TEST, PASS, FAIL and
STOP).

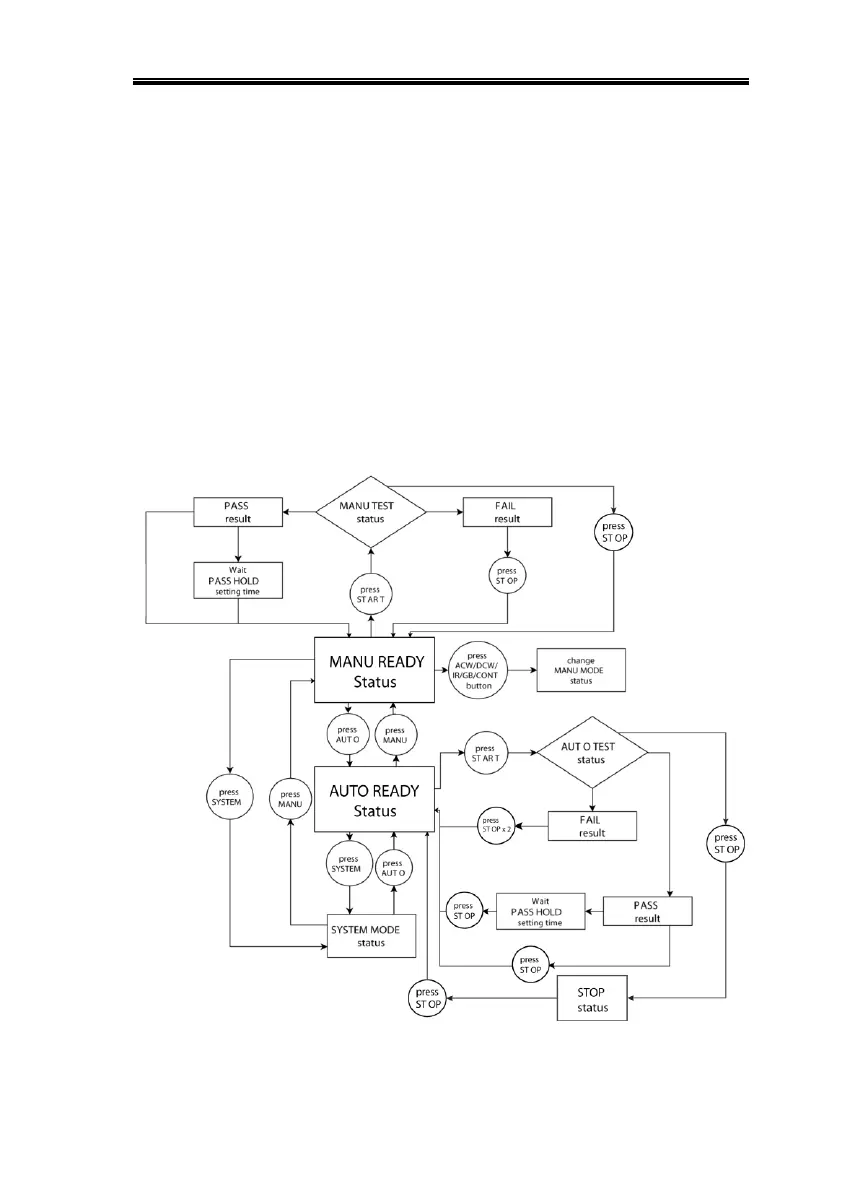

Operation Flow Chart
