GW Instek GPT-12004 Quick Start Guide

GPT-10000 Series Quick Guide
12

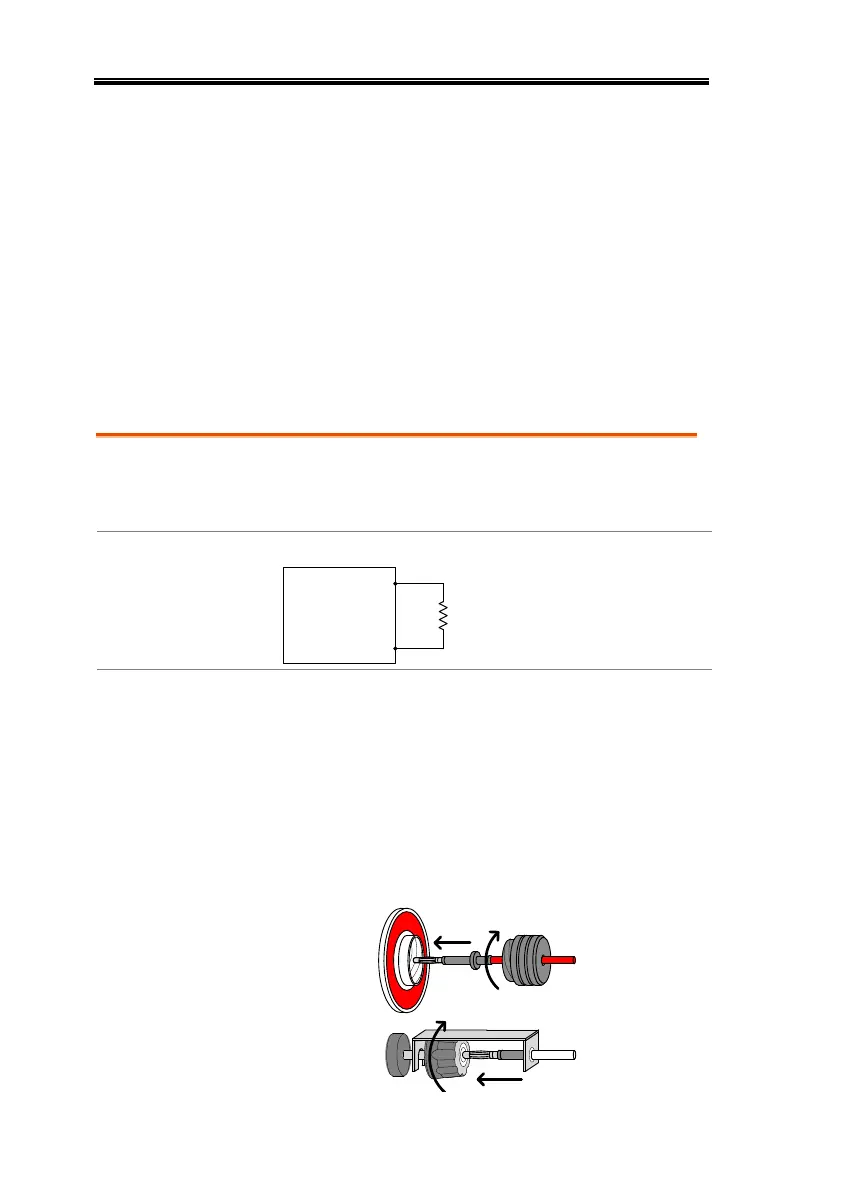

TEST LEAD CONNECTION
This section describes how to connect the GPT-12000 to a DUT for
AC/DC withstanding, insulation resistance, ground bond as well
as continuity testing.
ACW, DCW, IR Connection
Background
ACW, DCW and IR tests use the HIGH
VOLTAGE terminal and RETURN terminal
with the GHT-115 test leads.
ACW, DCW, IR
Connection
High Voltage
terminal
DUT
GPT-12000
Return
terminal
Steps
1. Turn the power off on the safety tester.
2. Connect the high voltage test lead (red) to the
HIGH VOLTAGE terminal and screw firmly
into place.
3. Connect the return test lead (white) into the
RETURN terminal and screw the protector bar
into place, as shown below.
HIGH
VOLTAGE
Terminal
RETURN
Terminal
