H3C S1200 Series - S1216; S1224

14

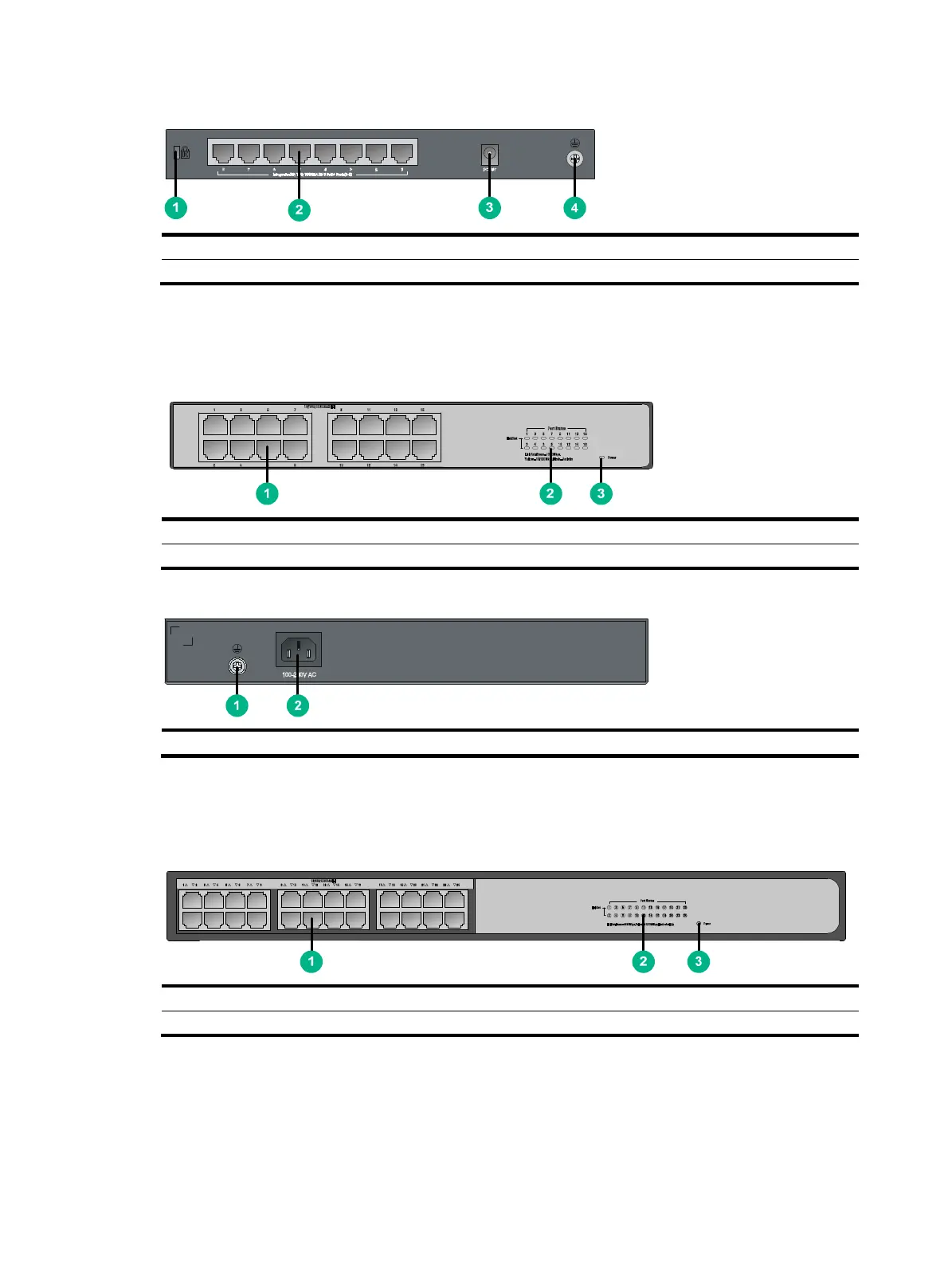

Figure 23 S1208-PWR rear panel
(1) Security slot (2) 10/100/1000BASE-T copper ports
(3) DC power receptacle (4) Grounding screw
S1216
Figure 24 S1216 front panel
(1) 10/100/1000BASE-T copper ports (2) Copper port LEDs
(3) Power LED
Figure 25 S1216 rear panel
(1) Grounding screw (2) AC power receptacle
S1224
Figure 26 S1224 front panel
(1) 10/100/1000BASE-T copper ports (2) Copper port LEDs
(3) Power LED
