47

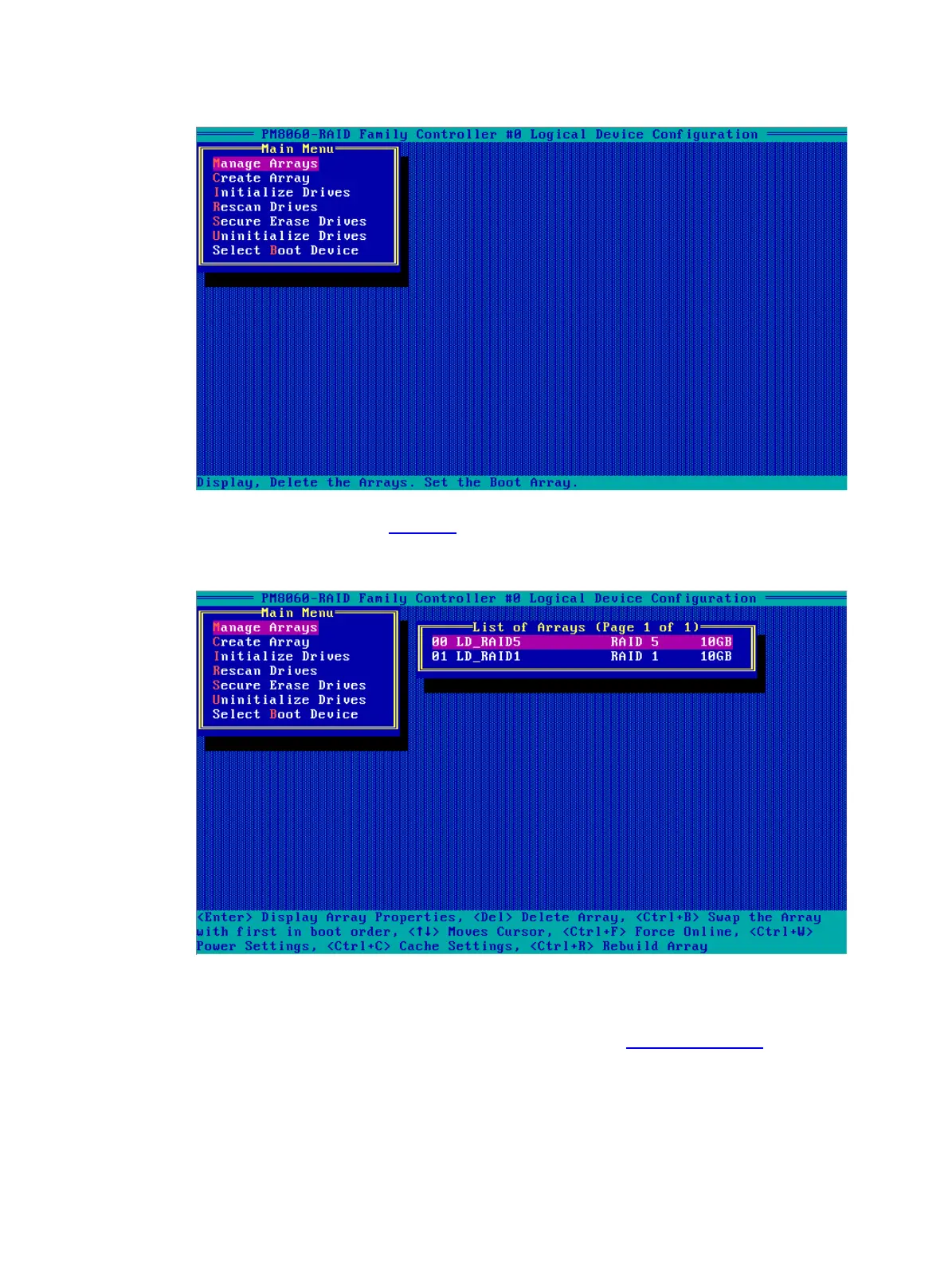

Figure 79 Logical Device Configuration screen
3. On the screen as shown in Figure 80, select a RAID array, and press Ctrl+B to configure it as
the first boot option.
Figure 80 Selecting the RAID array to be configured as the first boot option
Configuring a physical drive as the first boot option
Only a raw physical drive can be configured as the first boot option. To configure a physical drive in
any other state as the first boot option, you must first perform the Uninitializing drives operation for
the drive.
In legacy mode, after you configure the storage controller to operate in HBA mode, you must
configure a raw drive as the first boot option. Otherwise, the operating system cannot be installed or
started.
To configure a physical drive as the first boot option:
