10

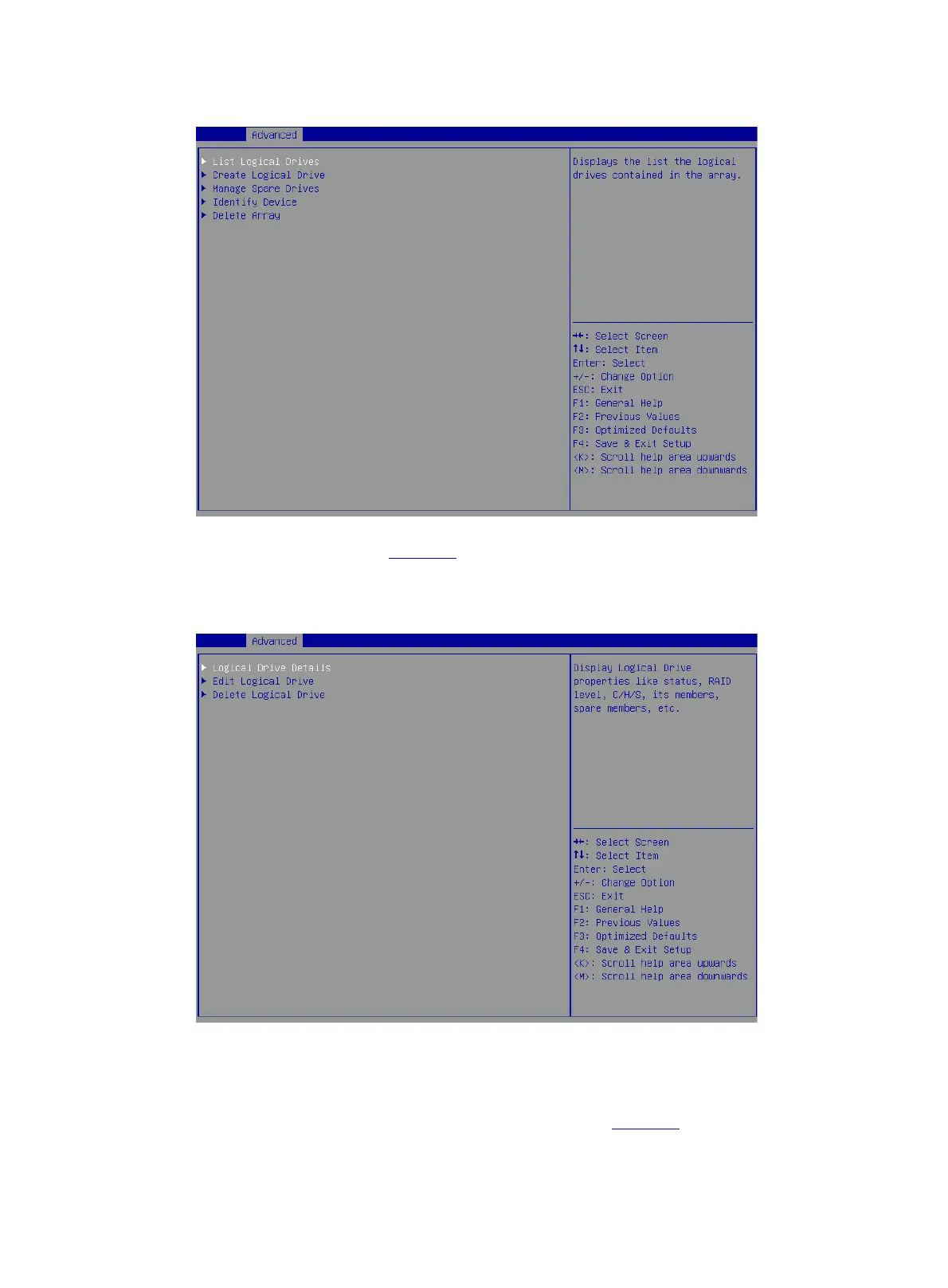

Figure 14 Selecting List Logical Drives
8. On the screen as shown in Figure 15, select Logical Drive Details and press Enter to view
detailed information about the RAID array (including RAID array name, level, and drive
information).
Figure 15 Selecting Logical Drive Details
Configuring hot spare drives
1. On the storage controller configuration screen as shown in Figure 16, select Array
Configuration and press Enter.
