H3C UniServer R4900 G3

29

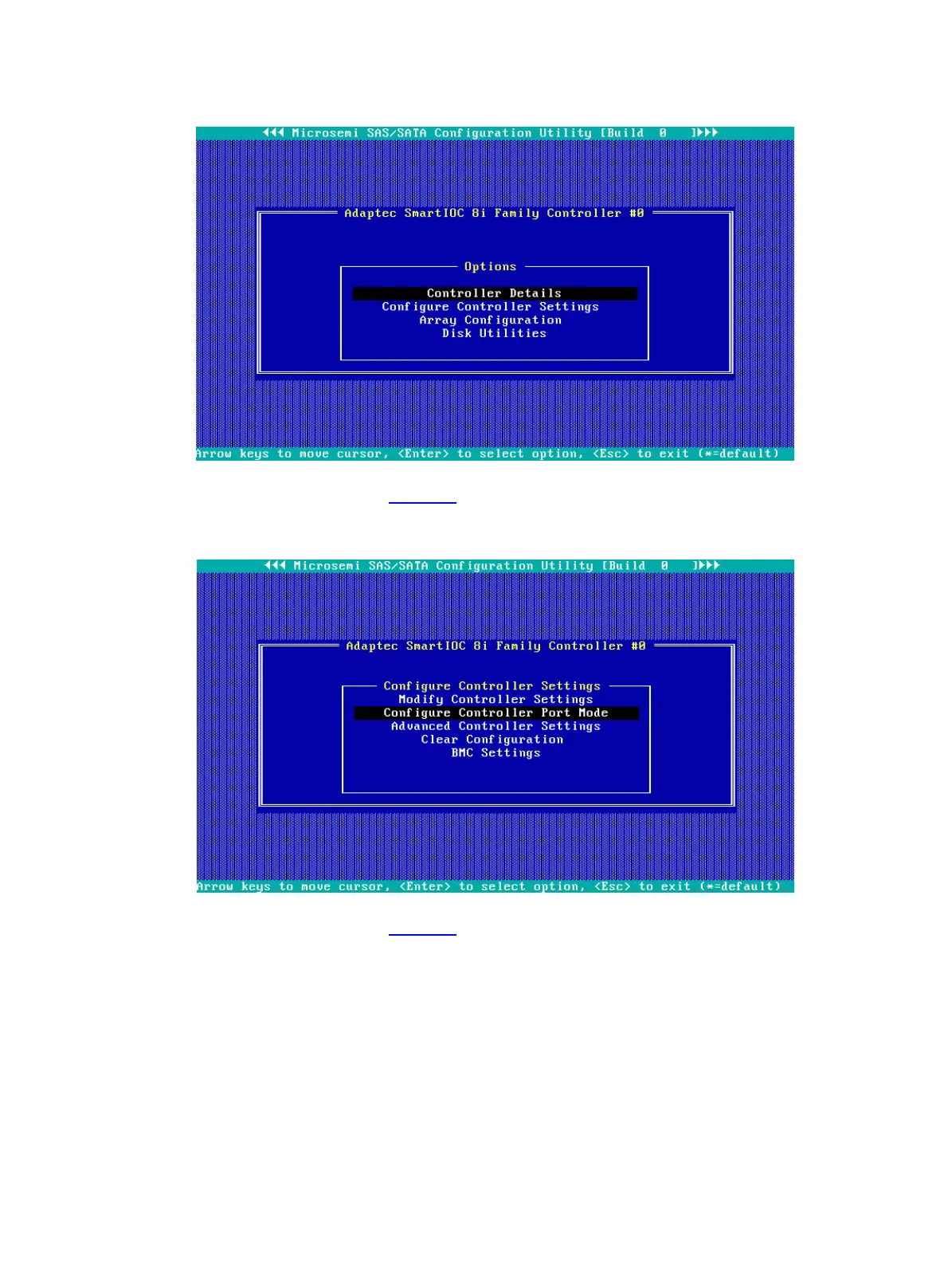

Figure 50 Storage controller configuration screen
2. On the screen as shown in Figure 51, select Configure Controller Port Mode and press
Enter.
Figure 51 Configure Controller Settings screen
3. On the screen as shown in Figure 52, change the operating mode for Connector CN0 and
Connector CN1 as needed.
