49

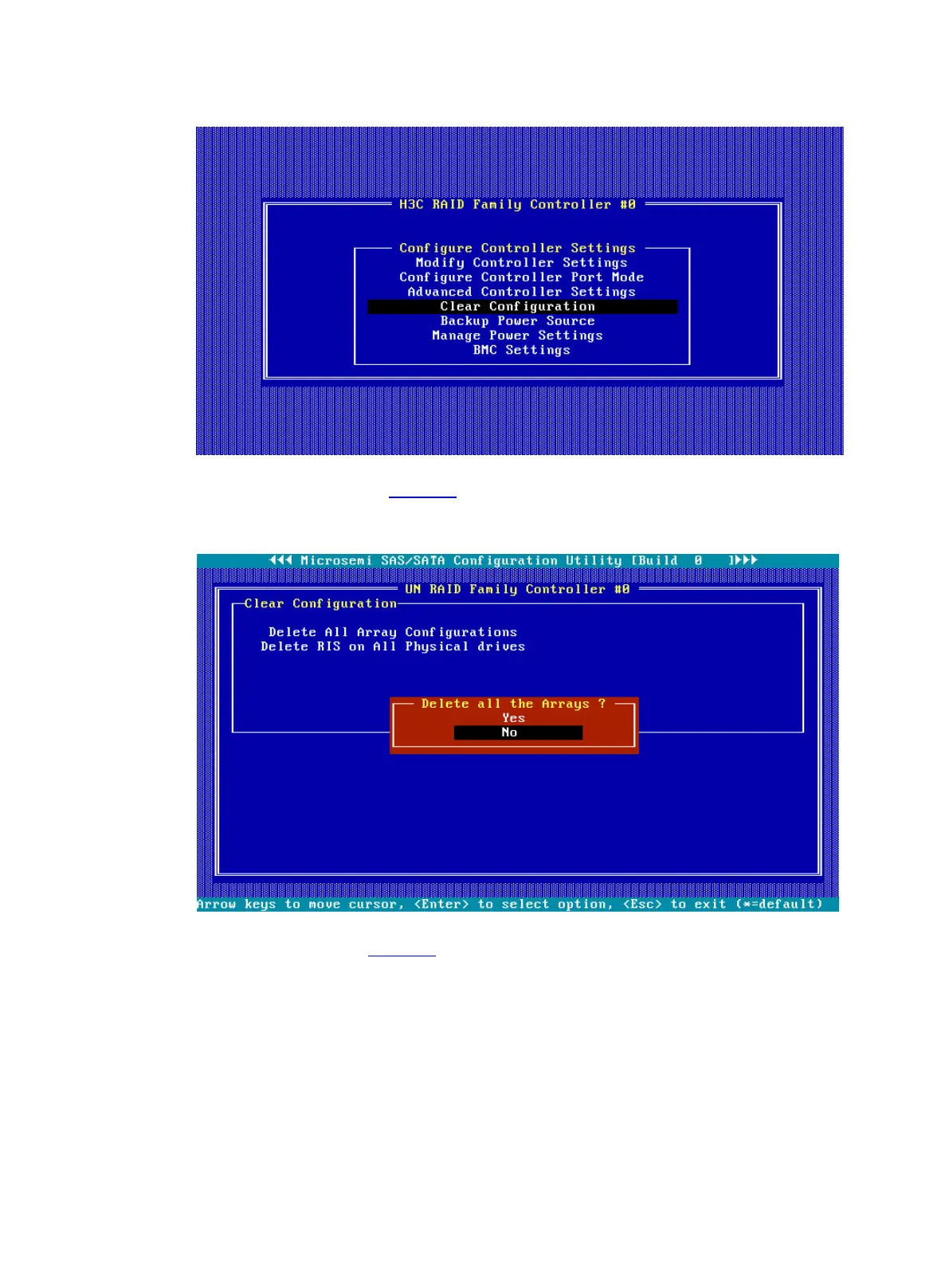

Figure 87 Configure Controller Settings screen
3. On the screen as shown in Figure 88, select Delete All Array Configurations and press
Enter. In the confirmation dialog box that opens, select Yes and press Enter.
Figure 88 Clearing storage controller configuration
The screen as shown in Figure 89 opens, indicating that the clearing operation is complete.
