216
4. Configure an authorization method for the ISP domain:
a. Click the Authorization tab.
b. Select the domain name bbb.
c. Select the Default AuthZ box and select the authorization mode RADIUS.
d. Select the RADIUS scheme system from the Name list to use it as the authorization scheme.
e. Click Apply.
A configuration progress dialog box appears.
f. After the configuration progress is complete, click Close.

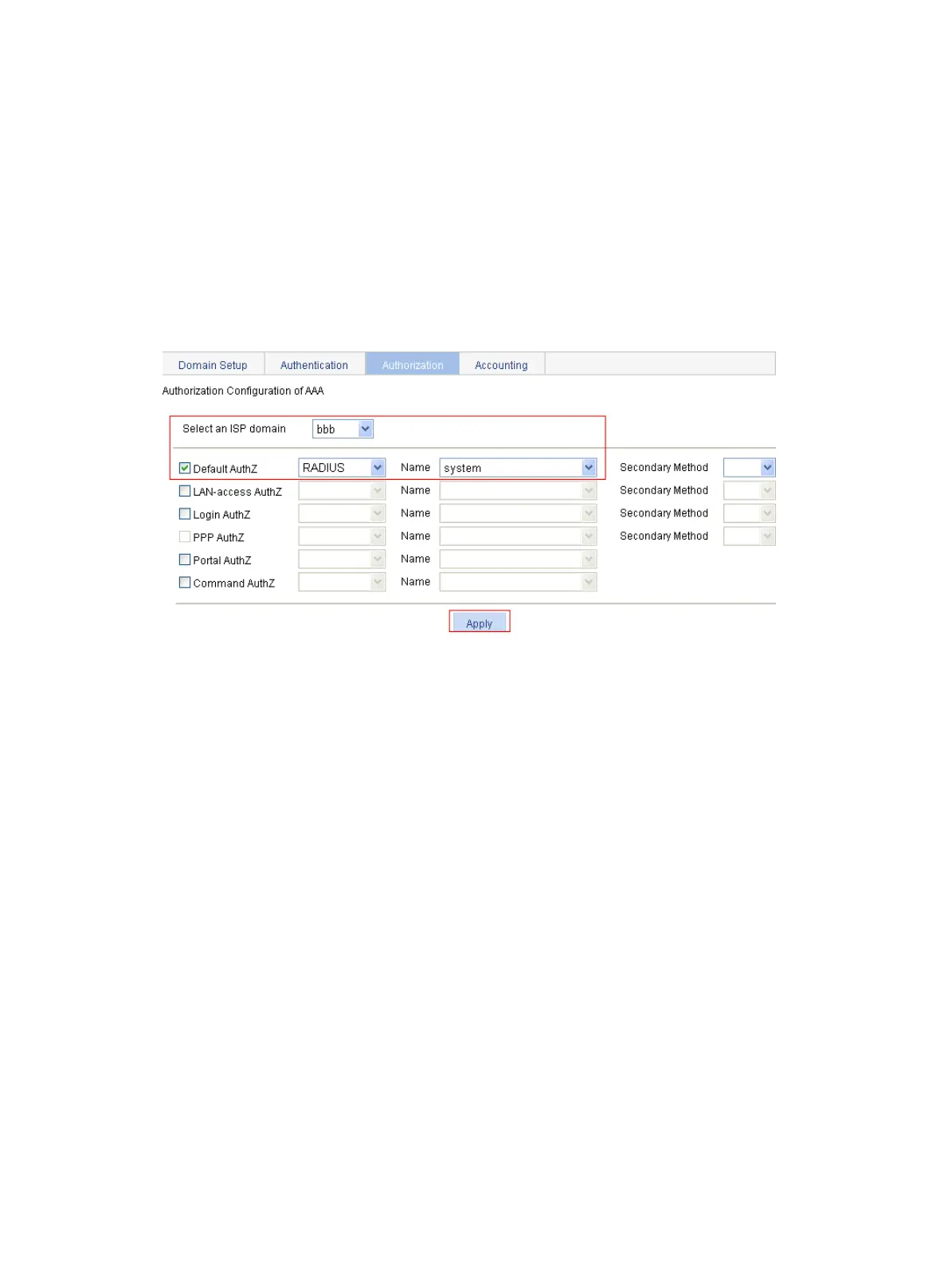

Figure 212 Configure an authorization method for the ISP domain
5. Configure an accounting method for the ISP domain, and enable accounting optional:
a. Click the Accounting tab.
b. Select the domain name bbb.
c. Select the Accounting Optional box and then select Enable.
d. Select the Default Accounting box and then select accounting mode RADIUS.
e. Select the RADIUS scheme system from the Name list to use it as the accounting scheme.
f. Click Apply.
A configuration progress dialog box appears.
g. After the configuration progress is complete, click Close.
