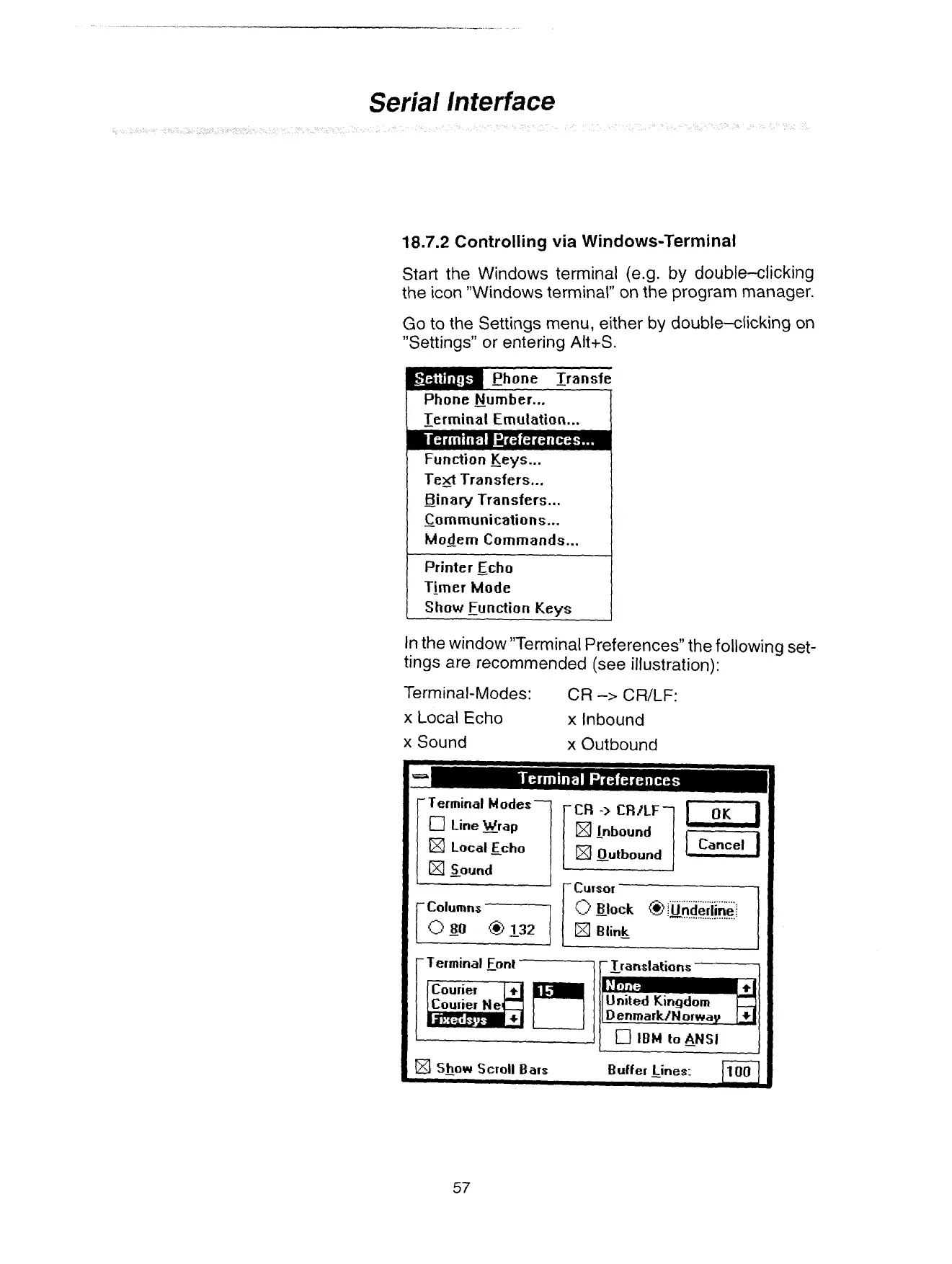

Serial interface
18.7.2 Controlling via Windows-Terminal
Start the Windows terminal (e.g. by double-clicking
the icon "Windows terminal" on the program manager.
Go to the Settings
menu, either by double-clicking on
"Settings" or entering Alt+S.
Phone Number ...
Terminal Emulation ...
Function Keys ...
Text Transfers ...
Binary Transfers ...
-
Communications ...
-
Modem Commands ...
Printer Echo
Timer Mode
Show Eunction Kevs
-
In the window "Terminal Preferences" the following set-
tings are recommended (see illustration):
Terminal-Modes:
CR -> CR/LF:
x Local Echo x Inbound
x Sound x Outbound
Courier Ne United Kingdom
DenmarklNorwa
@ Show Scroll Bars
Buffer
Cines: 1 00
