96-8000 181

G CODES

June 1999

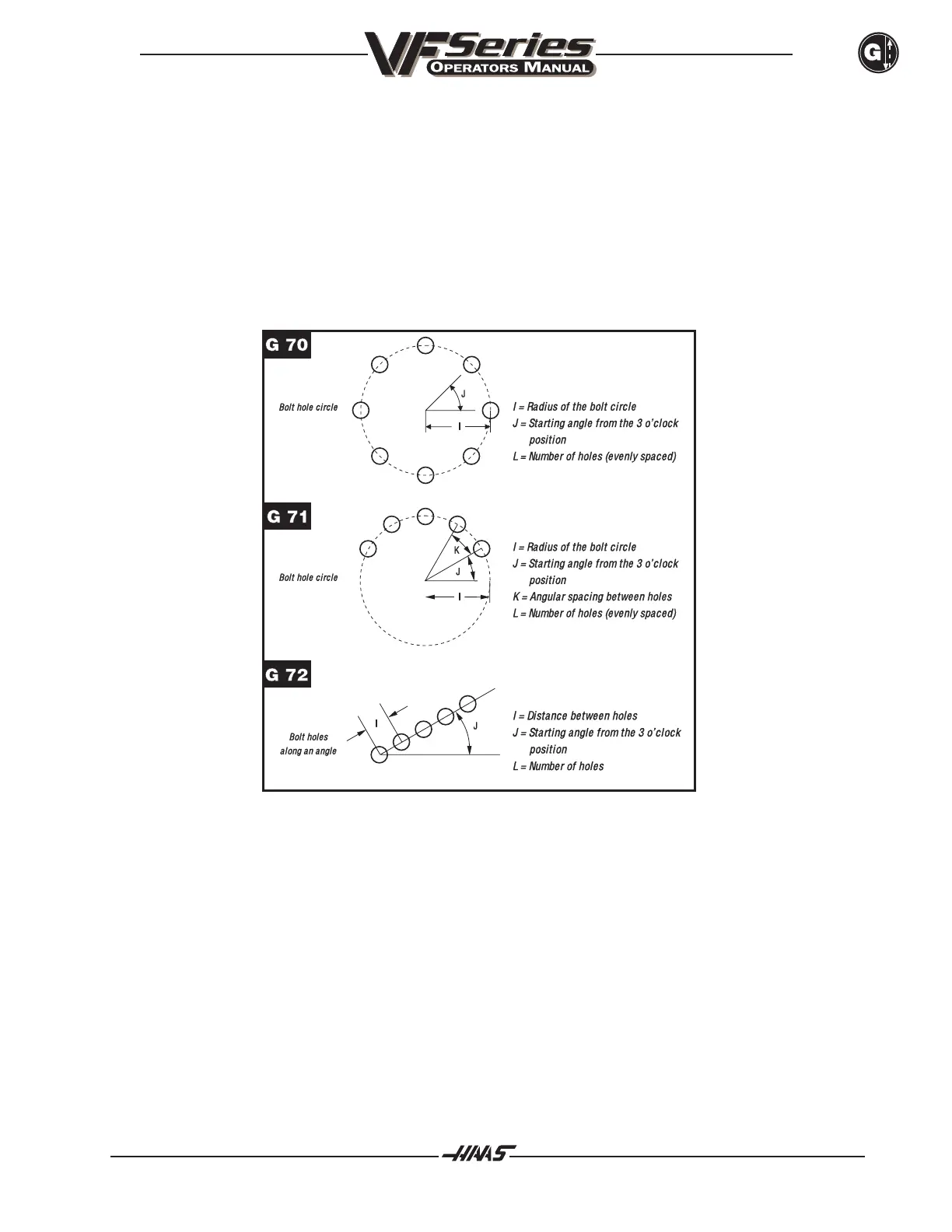

G72 Bolt Holes Along An Angle Group 00

I Distance between holes (Minus will reverse direction)

J Angle of line (Degrees CCW from horizontal)

L Number of holes

This G code drills L holes in a straight line at the specified angle. It operates similarly to G70 and G71. G72

belongs to Group zero and thus is non-modal. For a G72 to work correctly, a canned cycle should be active so

that at each of the positions, some type of drill or tap cycle is performed.
