434
OPTIONS
96-8000
June 1999
TECHNICAL R EFERENCE
PALLET S PECIFICATIONS
Weight 300 lbs.
Thickness 1
1
/
2
"
Bolt Holes 5 inch spacing, 1/2"-13 X 3/4 DP threads
CAUTION: Drilled holes in pallet should be less than 1" deep.

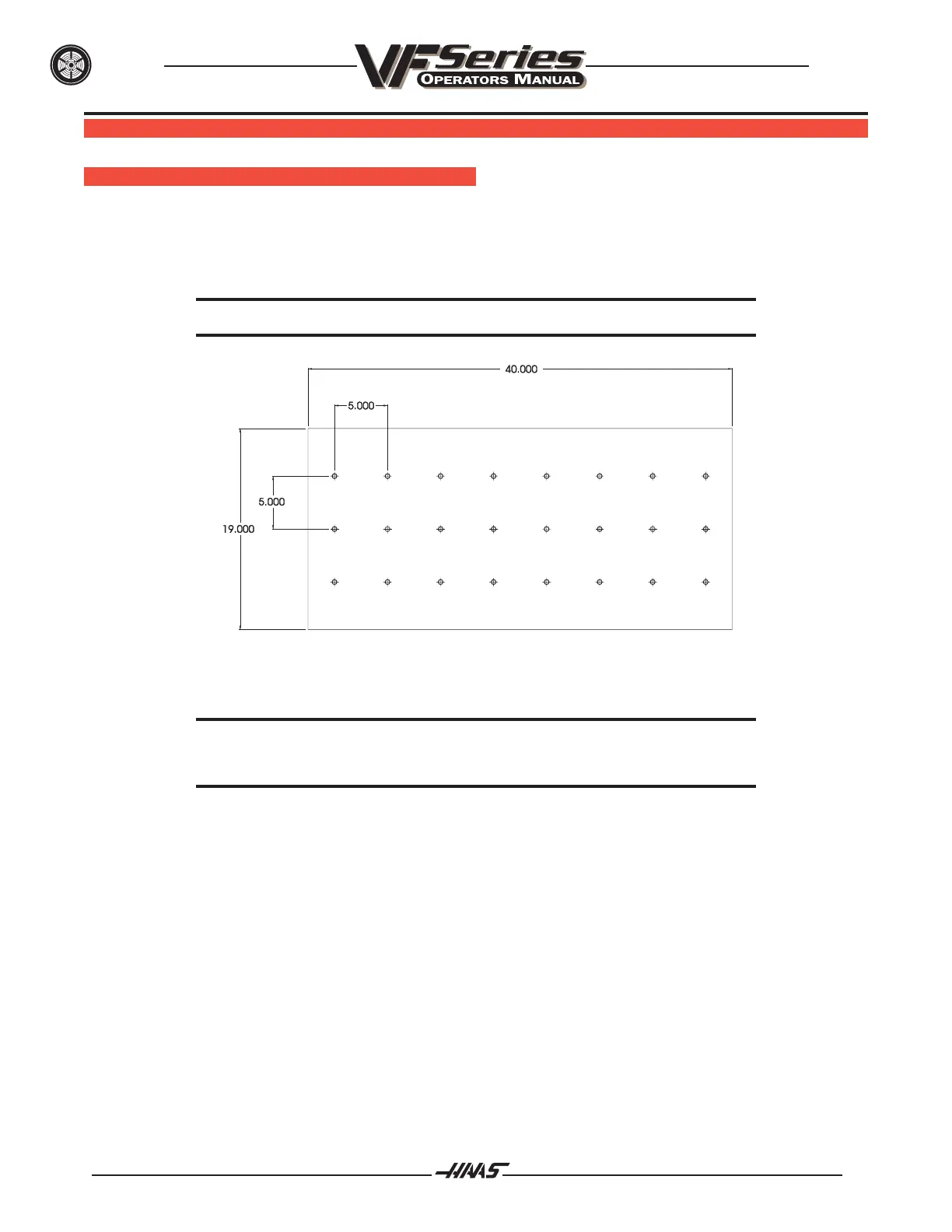

Figure 11.30 Pallet bolt hole pattern and spacing.
CAUTION! For pallet loads over 250 lbs, the load should be distributed evenly
around the center of the pallet to avoid tipping the pallet during
loading and unloading.
