PROGRAMMING EXAMPLES
22396-8000
June 1999
PROGRAM EXAMPLE DESCRIPTION
%
O1234 (Exercise program)
T1 M06 (TOOL #1 IS A .5 X 90 degree spot drill)
G00 G90 G54 X.565 Y-1.875 S1275 M03
G43 H01 Z.1 M08
G82 Z-.175 F10. R.1 P300 >(90 degree spot drill, the depth is)
X1.115 Y-2.750 (half of the chamfer diameter)
X3.365 Y-2.875
X4.188 Y-3.313
X5.0 Y-4.0
G00 G80 Z1.0 M09

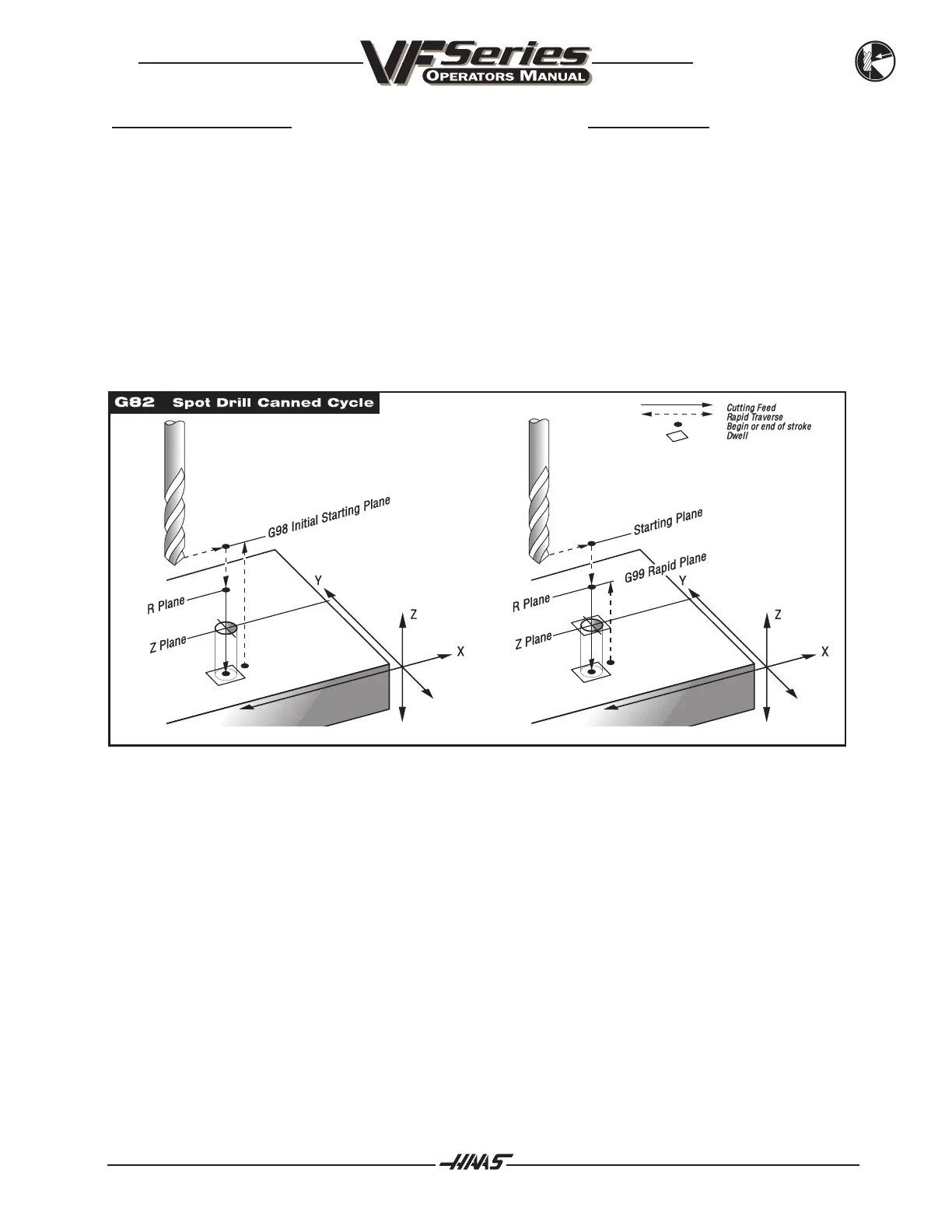

G82 Spot drilling example

Haas VF-6 Specifications

General

Machine Type	Vertical Machining Center
Spindle Motor	30 hp
Travels X Axis	64 in (1626 mm)
Travels Y Axis	32 in (813 mm)
Travels Z Axis	30 in (762 mm)
Spindle Speed	8, 100 rpm
Rapid Traverse on X	25.4 m/min
Rapid Traverse on Y	25.4 m/min
Rapid Traverse on Z	25.4 m/min
