PROGRAMMING EXAMPLES
22596-8000
June 1999

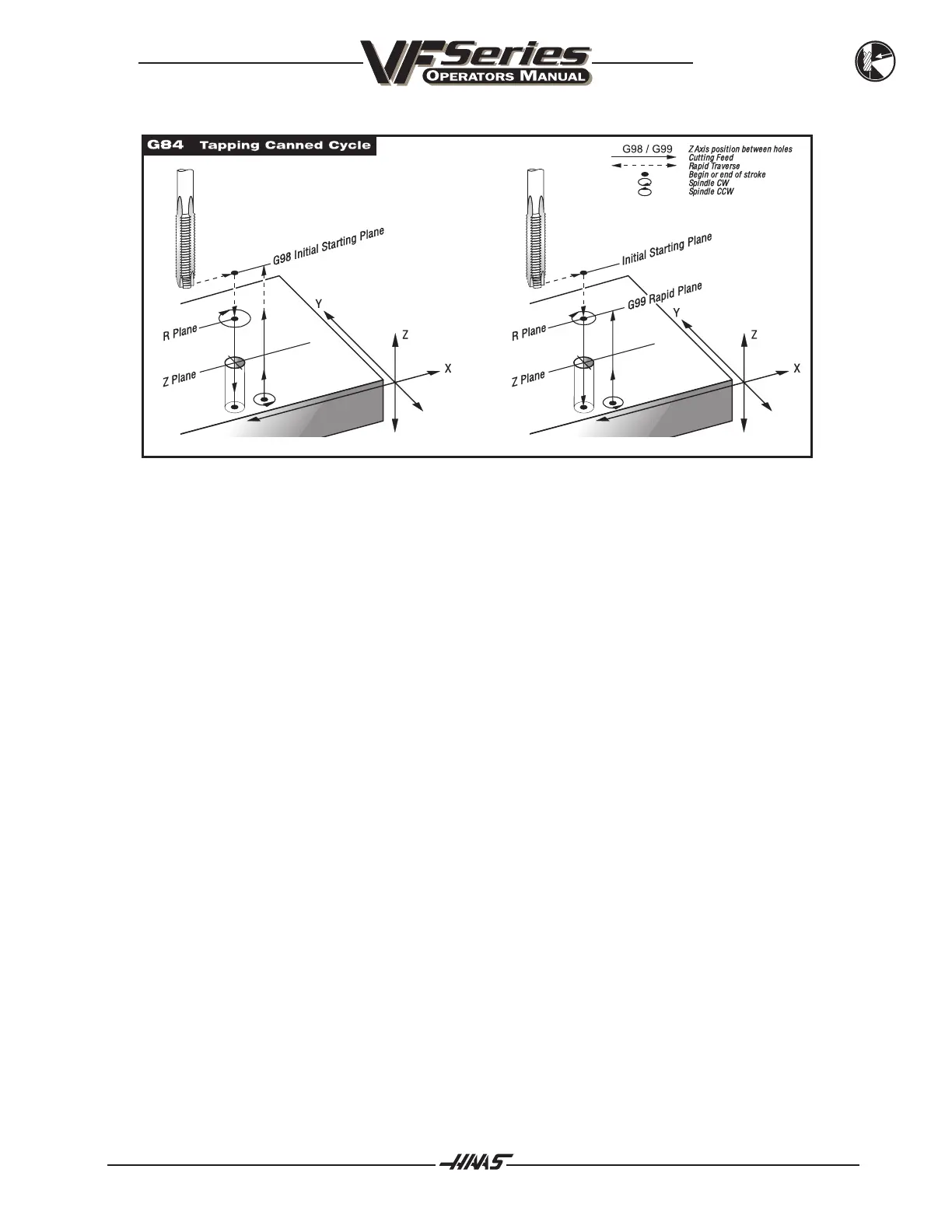

G 84 Tapping Canned Cycle Example
T3 M06 (Tool #3 is a 3/8-16 tap)
G00 G90 G54 X.565 Y-1.875 S900 M03
G43 H03 Z.2 M08
G84 Z-.600 F56.25 R.2 >(900 RPM divided by 16TPI = 56.25 IPM)
X1.115 Y-2.750
X3.365 Y-2.875
X4.188 Y-3.313
X5.0 Y-4.0
G00 G80 Z1.0 M09
G28 G91 Y0 Z0
M30
%

Haas VF-6 Specifications

General

Machine Type	Vertical Machining Center
Spindle Motor	30 hp
Travels X Axis	64 in (1626 mm)
Travels Y Axis	32 in (813 mm)
Travels Z Axis	30 in (762 mm)
Spindle Speed	8, 100 rpm
Rapid Traverse on X	25.4 m/min
Rapid Traverse on Y	25.4 m/min
Rapid Traverse on Z	25.4 m/min
