PROGRAMMING EXAMPLES

23196-8000

June 1999

RULES FOR BOLT PATTERN CANNED CYCLES:

1. The tool must be placed at the center of the bolt pattern before the canned cycle execution. The

center is usually X0, Y0.

2. The J code is the angular starting position and is always 0 to 360 degrees counterclockwise from

the three o'clock position.

In the case of conflicting address codes, You can specify a drilling cycle prior to the block that invokes the

special canned cycle. For instance:

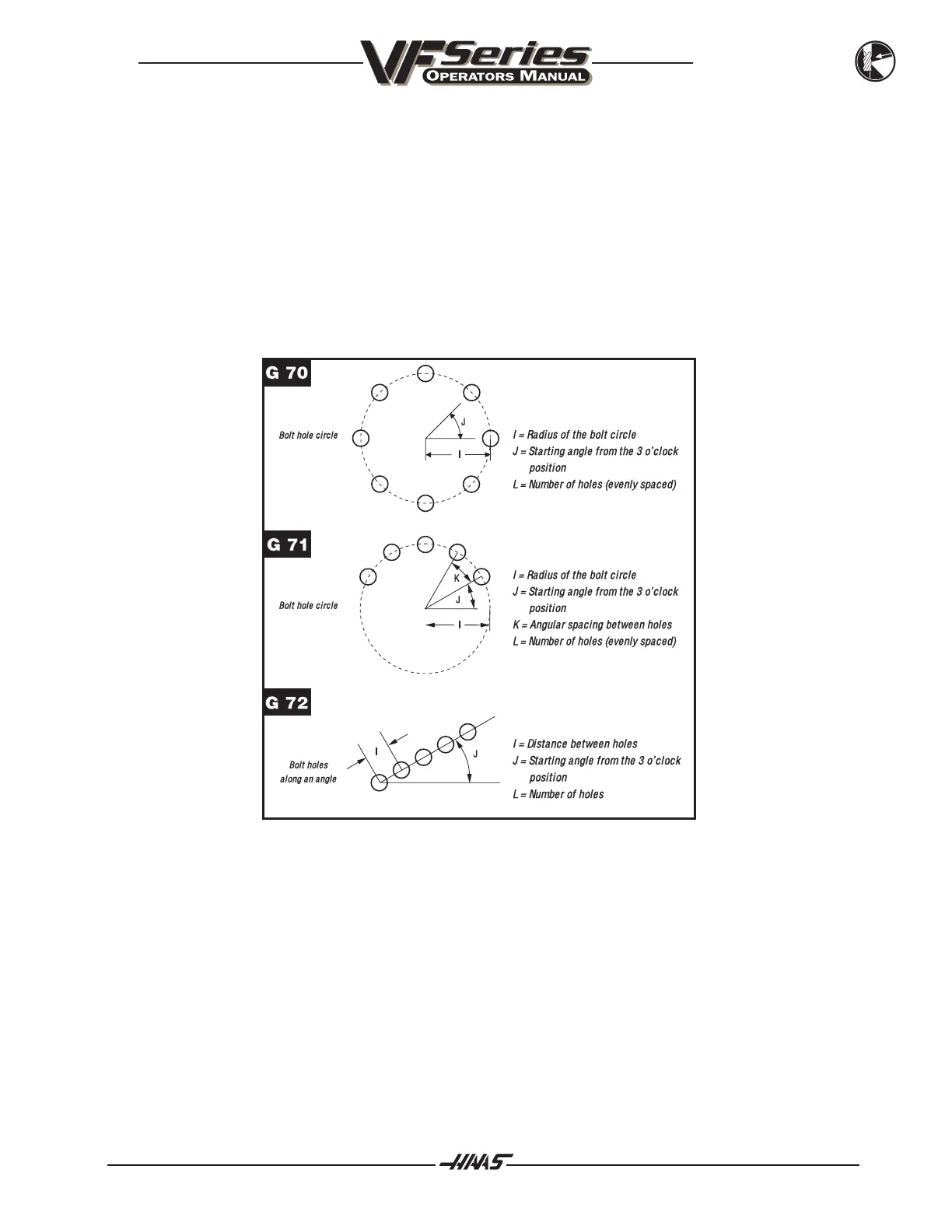

Bolt Hole Pattern Canned Cycles

05000

T1 M06

G00 G90 G54 X0 Y0 S1500 M03

G43 H01 Z.1 M08

G83 R.1 Z-1.0 I.25 J.03 K.15 F15. L0 (L0 PREVENTS DRILLING AT CENTER)

G70 I1.5 J0 L8

G00 G80 Z1. M09

G28 G91 Y0 Z0

M30
