PROGRAMMING EXAMPLES
96-8000
June 1999
SQUARE POCKET:

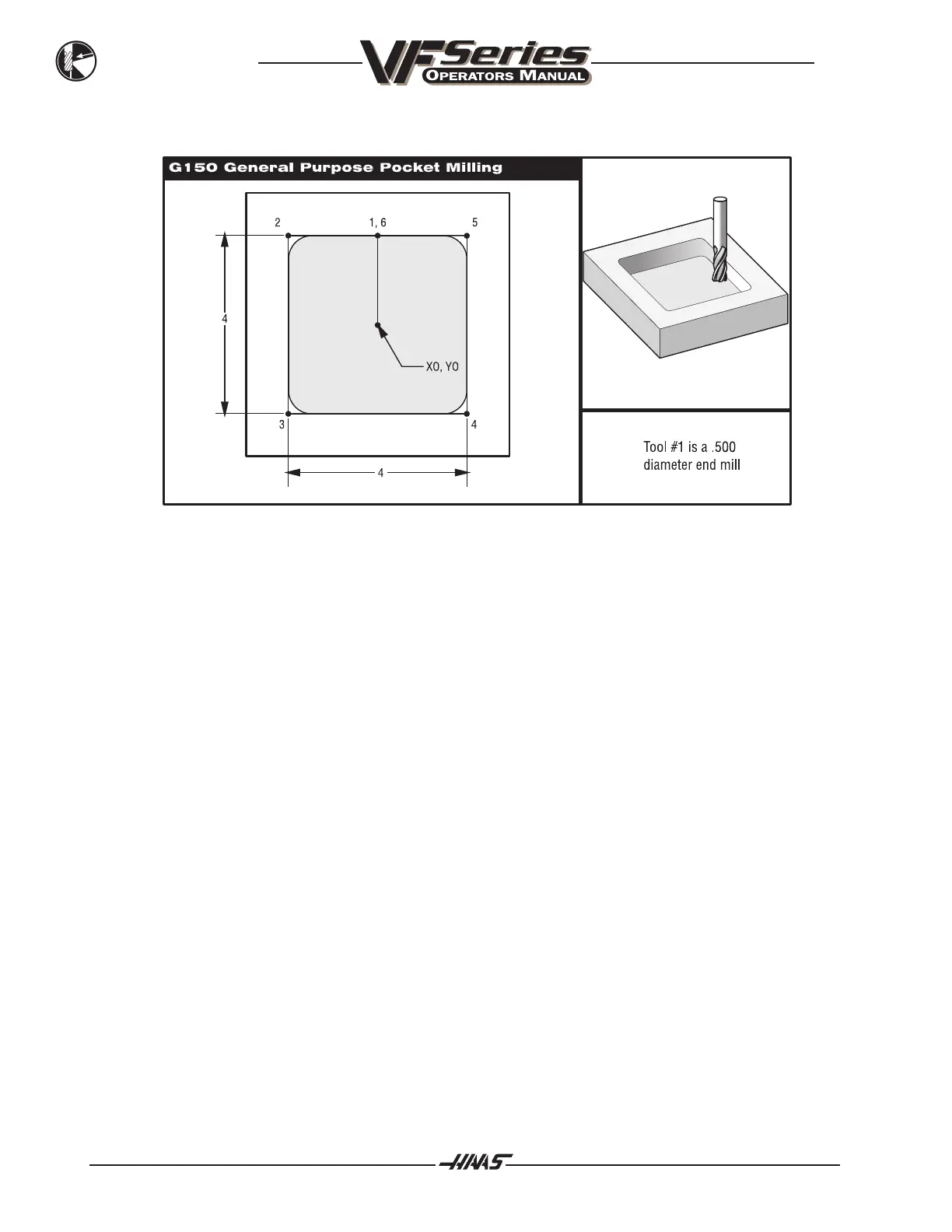

Pocket milling exercise for G150 operation.
4.0 x 4.0 x .500 DP. SQUARE POCKET:
%
O1000
T1 M06 (Tool #1 is a .500 diameter end mill)
G00 G90 G54 S2000 M03
G43 H01 Z.1 M08
G01 Z0 F10.
G150 X0 Y0 Z-.5 F10. R.1 Q.25 I.4 K.01 P500 D01 G41
G00 Z1.0 M09
G40 G28 G91 Y0 Z0
M30
%

Haas VF-6 Specifications

General

Machine Type	Vertical Machining Center
Spindle Motor	30 hp
Travels X Axis	64 in (1626 mm)
Travels Y Axis	32 in (813 mm)
Travels Z Axis	30 in (762 mm)
Spindle Speed	8, 100 rpm
Rapid Traverse on X	25.4 m/min
Rapid Traverse on Y	25.4 m/min
Rapid Traverse on Z	25.4 m/min
