96-8000 341

QUICK CODE

June 1999

- INVOKE THE SPOT DRILLING CANNED CYCLE

1.) JHCW and highlight the group titled DRILLING / BORING.

2.) JHCCW one click. SPOT DRILL will be highlighted.

3.) Press the WRITE key to insert the code for setting up spot drilling.

Note that QUICK CODE added a block to actually execute a spot drill at the location X0 Y0. This would

normally be edited to the first location you want to drill. You could also add more X and Y drill locations if

needed.

Your program will look like this.

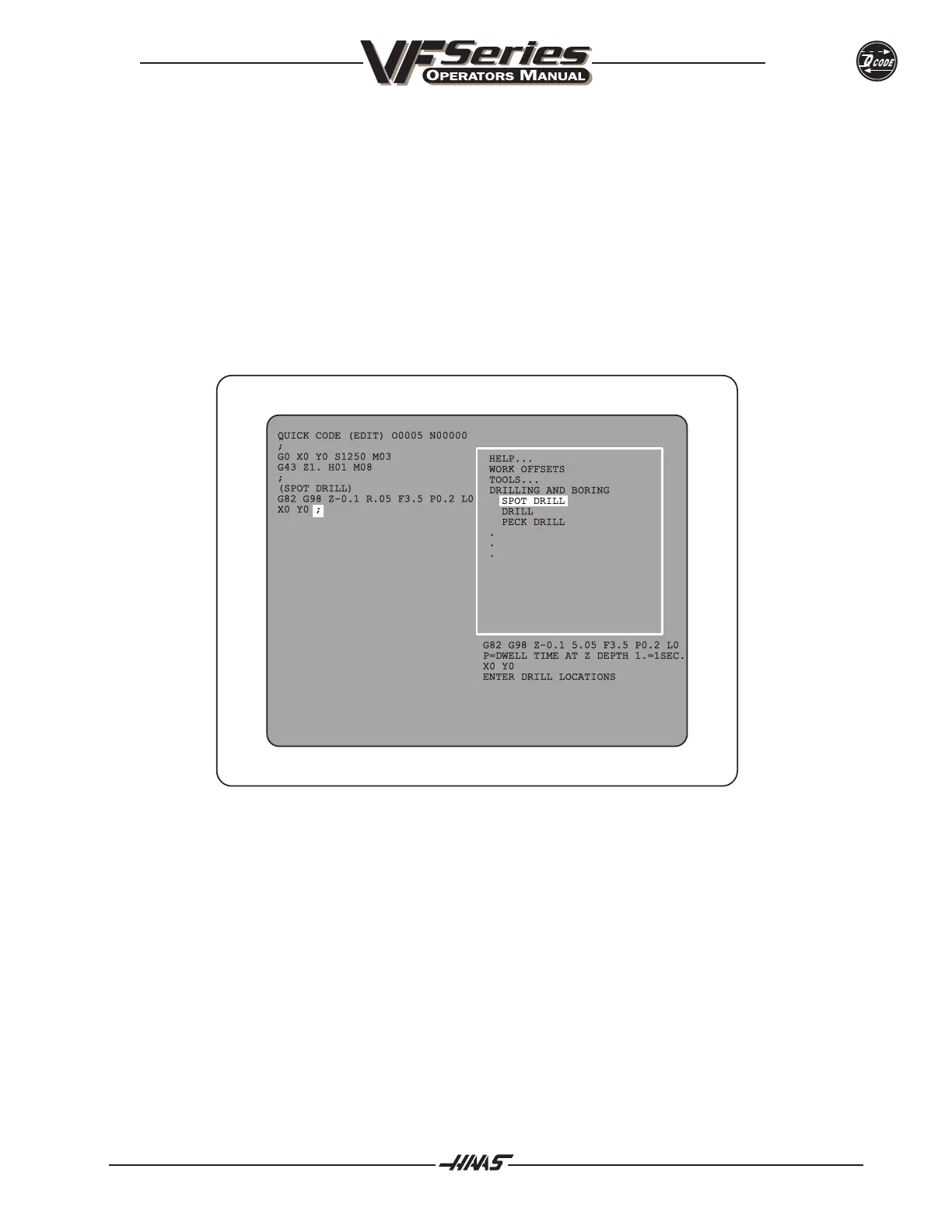

Figure 11-5. Program with spot drilling invoked.

For this example we do not want to drill a hole at X0 Y0. The bolt pattern will do all the work. At this time

delete X0 Y0 from the edit window.
