INSTALLATION

June 1999

96-8000

INSTALLING THE LIFT KIT

VF- 3 / 4

3. Install the lifting brackets with (2) 1/2"-13 SHCS and (2) 1/2' hard washers, [(2) washers under

bracket and (1) above bracket], to the base as shown in figure 1-3. Tighten securely.

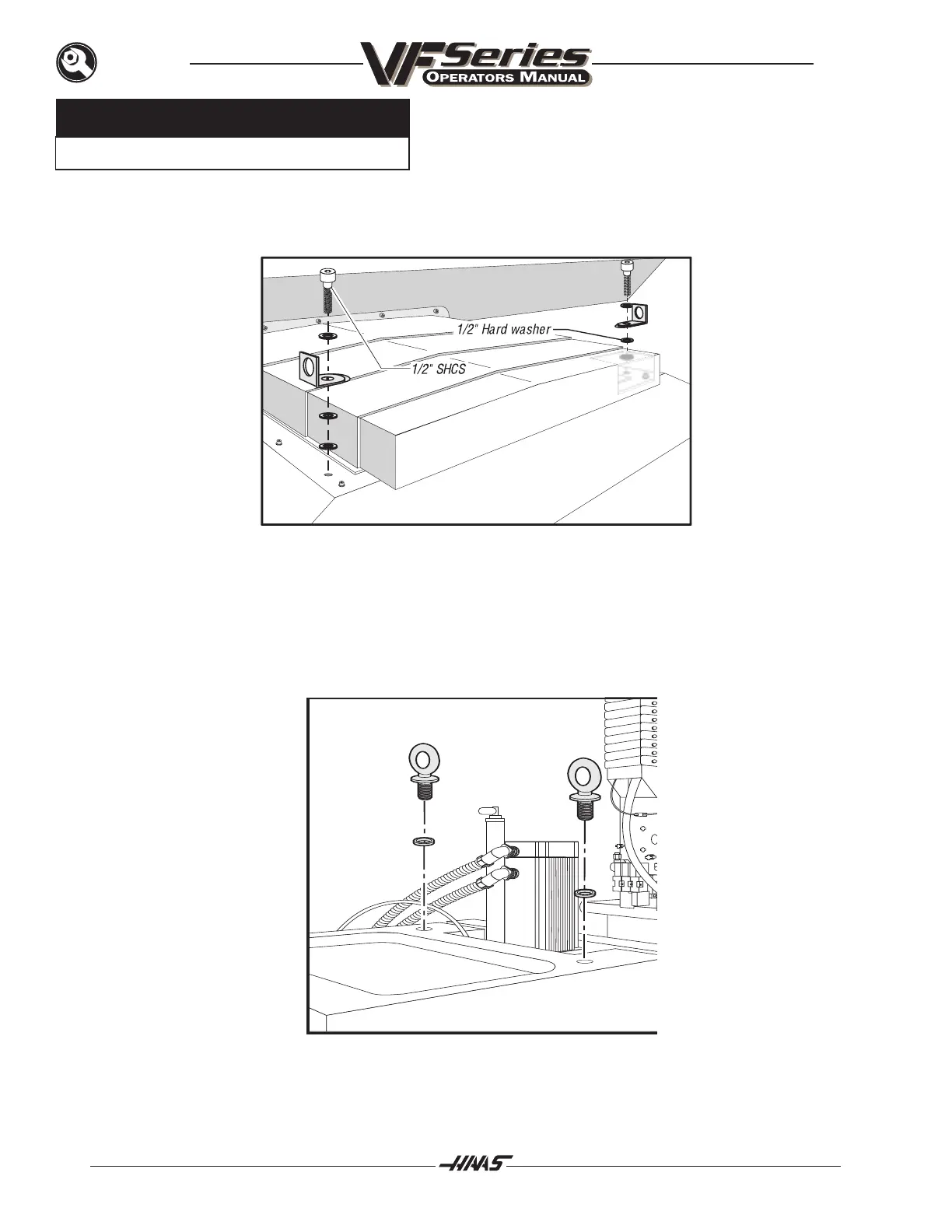

Fig. 1-3 Lifting bracket mounting location for VF-3 and VF-4.

4. Install (2) ¾-10 x 1¼" eyebolts and (2) 3/4' hard washers to the column casting as shown in figure

1-4. Tighten securely.

Fig. 1-4 VF-3/VF-4 eyebolt locations.
