INSTALLATION

June 1999

96-8000

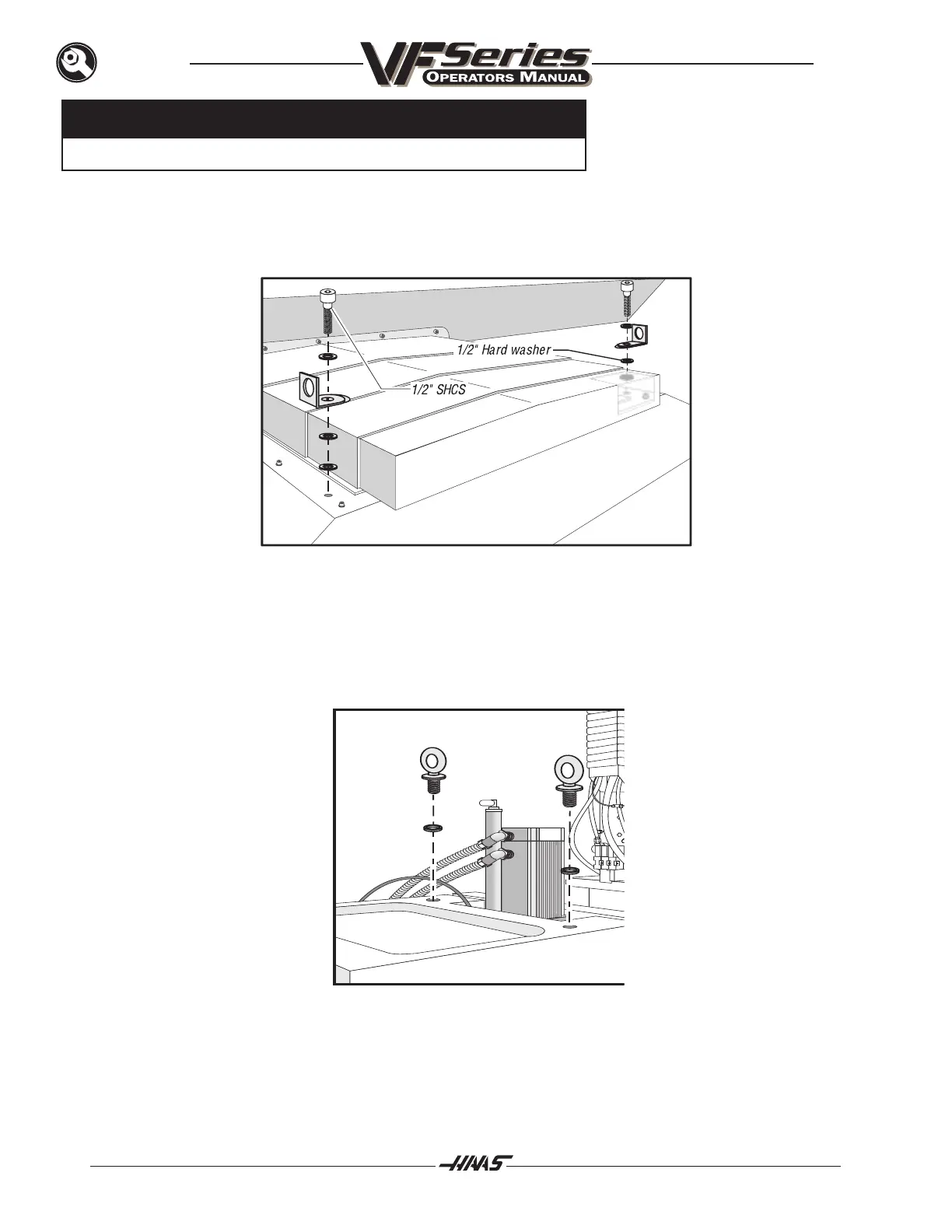

1. Install the lifting brackets with (2) 1/2" -13 SHCS and (2) 1/2" hard washers, [(2) washers under

bracket and (1) above bracket], to the base as shown in Figure 2-1. Tighten Securely.

Fig. 2-1 Lifting bracket mounting location for VF-5.

2. Install (2) 5/8 x 1 x 1

" eyebolts and (2) 3/4" hard washers to the column as shown in Figure 2-

2. Tighten securely.

Fig. 2-2 VF-5 eyebolt locations on top of column.

SECTION 2: INSTALLING THE LIFT KIT

VF-5 40 / 50 TAPER
