INSTALLATION
June 1999
96-8000
3. Attach the lifting chains to the rigging beam as shown. Use the spreader bars to protect against
any possible contact points.
IMPORTANT! The spreader bar above the column is used to keep the chains parallel to the column and evenly
distribute the load on the eyebolts.

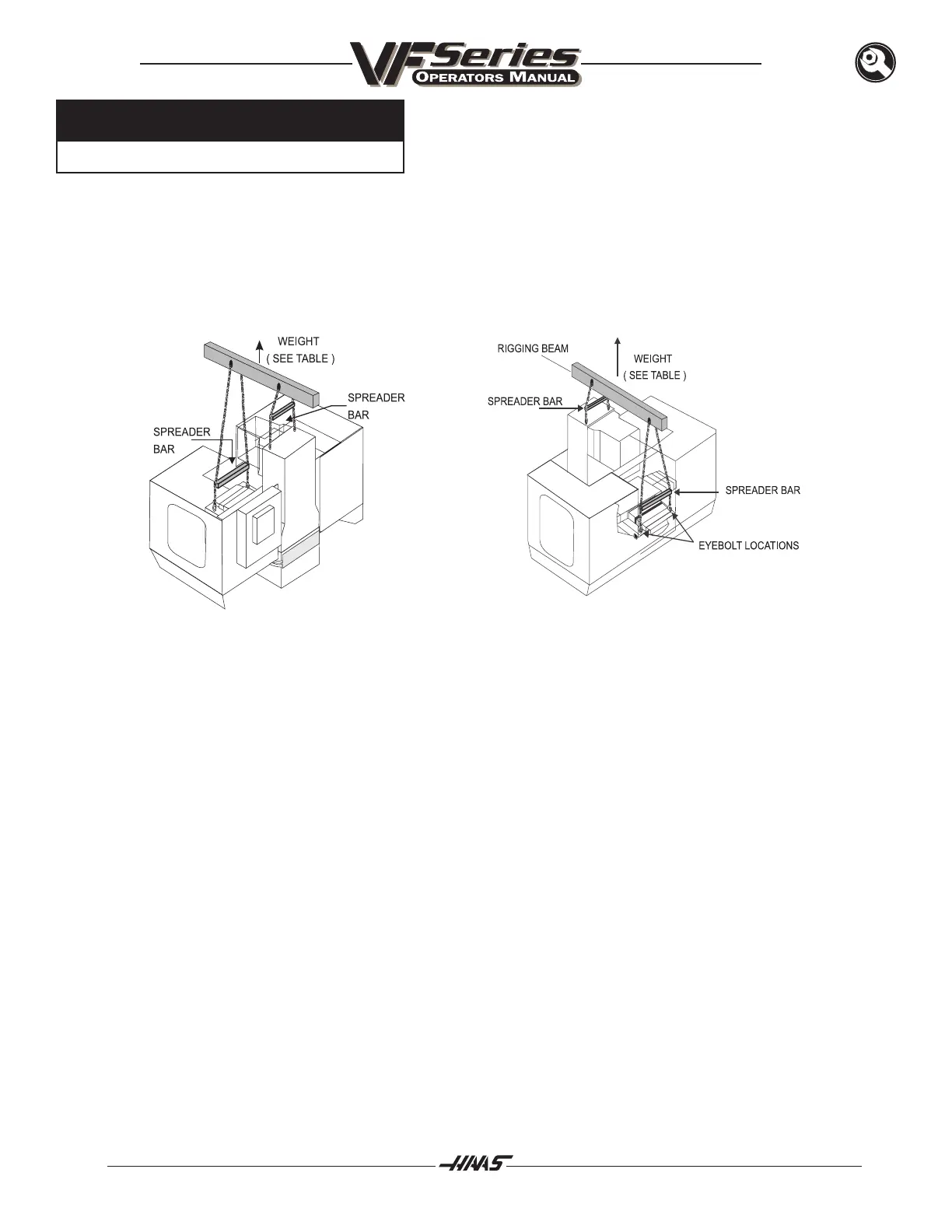

Fig. 2-3 VF-5 lifting positions.
BEAM STYLE LIFTING
VF-5 40 / 50 TAPER

Haas VF-6 Specifications

General

Machine Type	Vertical Machining Center
Spindle Motor	30 hp
Travels X Axis	64 in (1626 mm)
Travels Y Axis	32 in (813 mm)
Travels Z Axis	30 in (762 mm)
Spindle Speed	8, 100 rpm
Rapid Traverse on X	25.4 m/min
Rapid Traverse on Y	25.4 m/min
Rapid Traverse on Z	25.4 m/min
