70
INSTALLATION
June 1999
96-8000
VF-6 thru 10
SECTION 3: INSTALLING THE LIFT KIT
* On machines with eyebolt through holes, remove the eyebolt plugs on the base casting.
1. Install the two 1
1
/
8
- 7 eyebolts to the base casting as shown below and tighten. Eyebolts should
be facing towards the front of the machine when tightened.

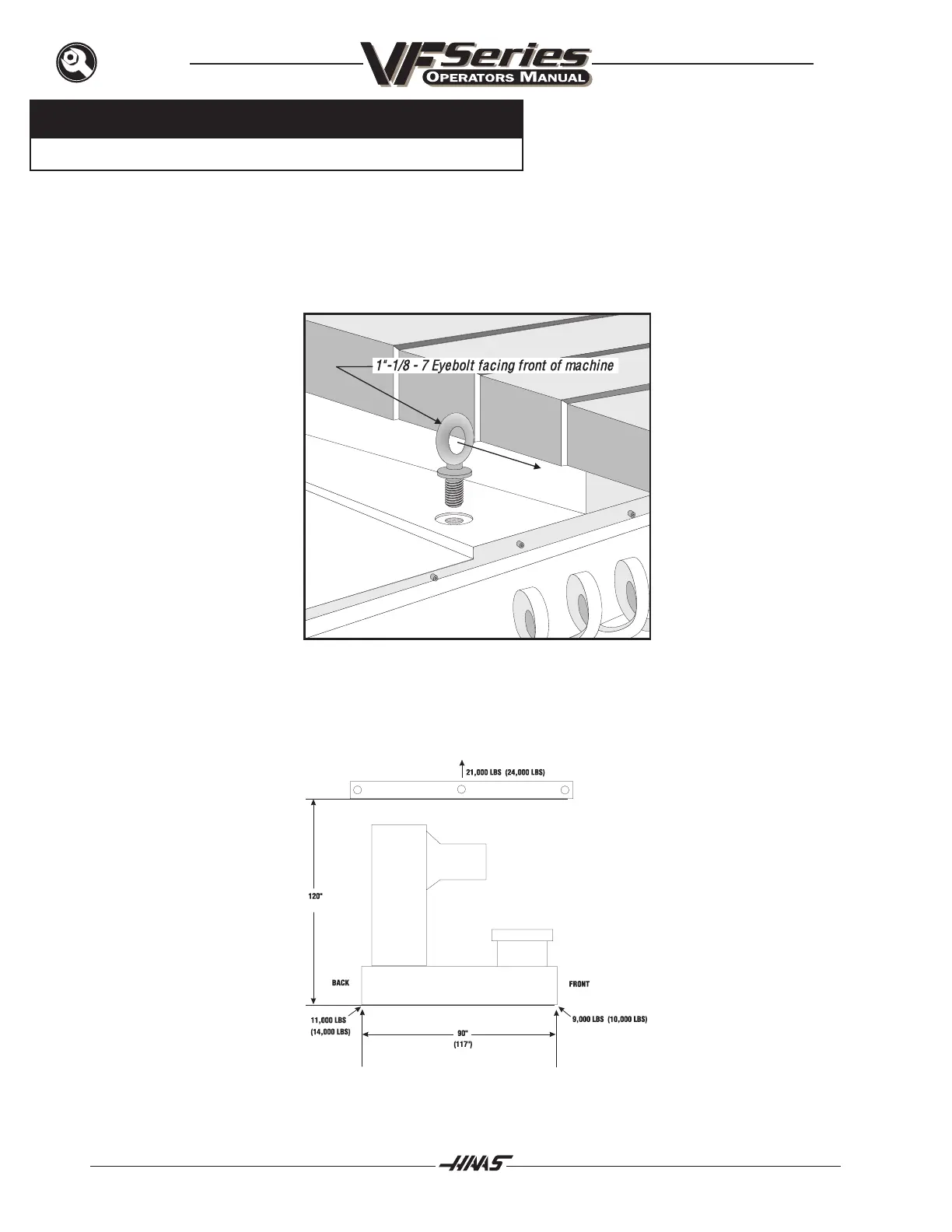

Fig. 3-1 Eyebolt and position access hole for VF-6 thru 10.
2. These specifications are an approximation of the weight distribution and chain length needed
to lift the VF-6 thru 10.
Fig. 3-2 VF- weight specifications.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Haas VF-6 and is the answer not in the manual?

Haas VF-6 Specifications

General IconGeneral
Machine TypeVertical Machining Center
Spindle Motor30 hp
Travels X Axis64 in (1626 mm)
Travels Y Axis32 in (813 mm)
Travels Z Axis30 in (762 mm)
Spindle Speed8, 100 rpm
Rapid Traverse on X25.4 m/min
Rapid Traverse on Y25.4 m/min
Rapid Traverse on Z25.4 m/min
