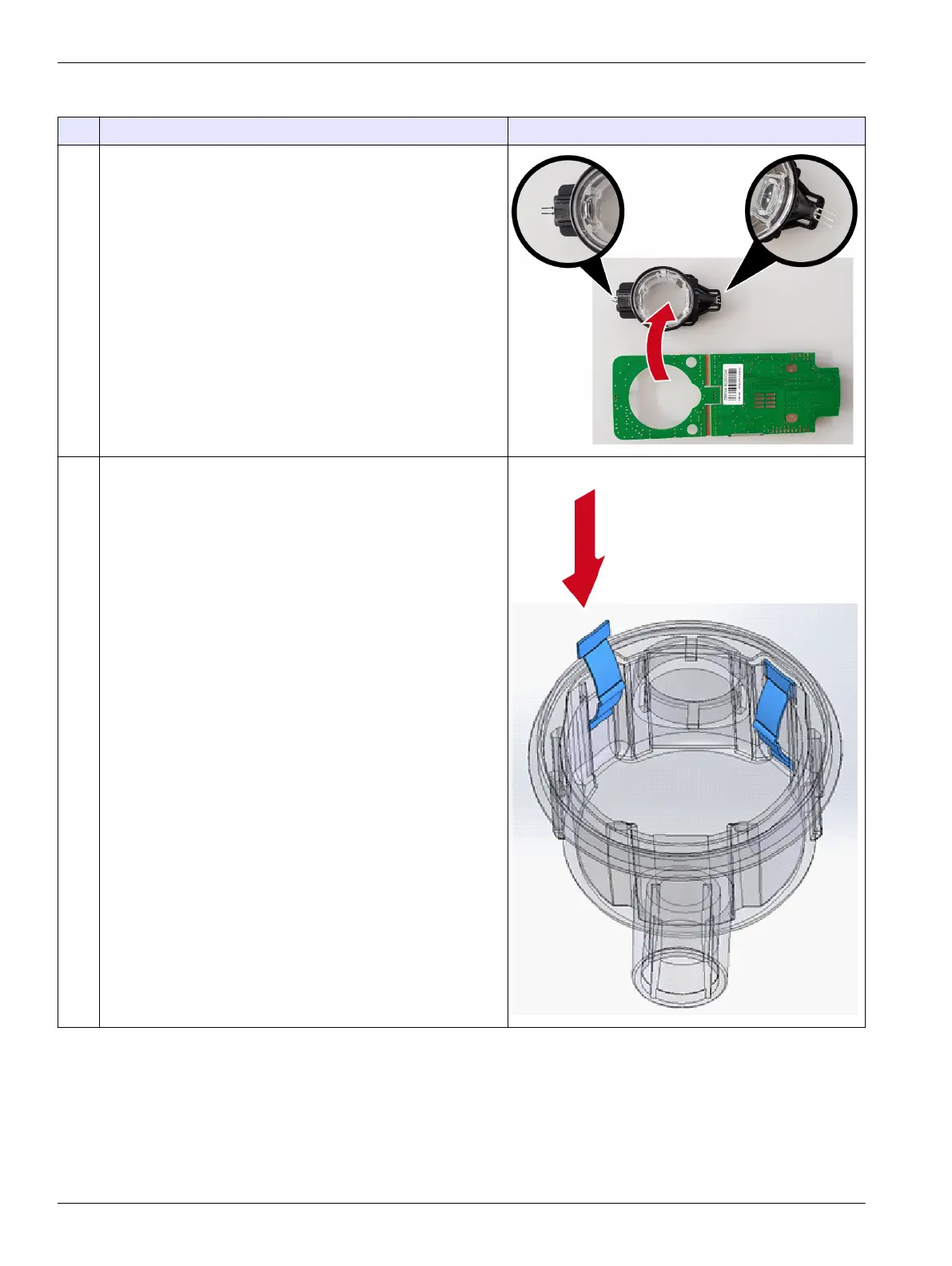

Krytox oil (item no. 16004801)
Step
Description
1
Open the instrument, refer to
Open the instrument
on page 35.
Remove the optical unit from the mainboard.
2
Insert retainer springs (2x) in the optical cup. Push the springs
in the correct position.
Repairs
38
39
41
Table of Contents
Table of Contents
3
Section 1 Specifications
5
Section 2 General Information
7
Safety Information
7
Use of Hazard Information
7
Precautionary Labels
7
Certification
7
Product Overview
8
Product Components
8
Keypad Description
9
Display Description
10
Section 3 Startup
11
Install the Batteries
11
Set the Time
11
Do a Test
11
Download a Test Procedure
13
Show Measurements
13
Install the Bluetooth Dongle
14
Section 4 Inspection
17
Visual Check
17
Clean the Instrument
17
Clean the Cell Compartment
17
Replace the Batteries
18
Inspection with Test Filter Set, Service Cable, PC and VAP235 Software
18
Install VAP235 Software
18
Insert the Service Cable
21
Do an Inspection with the Test Filter Set, Service Cable, PC and VAP235 Software
23
Do a Service Inspection with the Test Filter Set and Service Mode
30
Update the Software
35
Section 5 Repairs
37
Open the Instrument
37
Replace the Optical Unit
39
Replace the Mainboard
44
Set the Part Number
45
Set the Serial Number
46
Replace the Display
47
Replace the Keypad
49
Replace the Housing
49
Replace the Battery Contacts
51
Section 6 Troubleshooting
55
Get the Instrument Logger
58
Get the Data Logger
63
Set Back the Instrument to Factory Settings
64
Section 7 Replacement Parts and Accessories
67
Appendix A Certificate of Service Inspection
81
Appendix B Certificate of Service Inspection (Manually)
83
