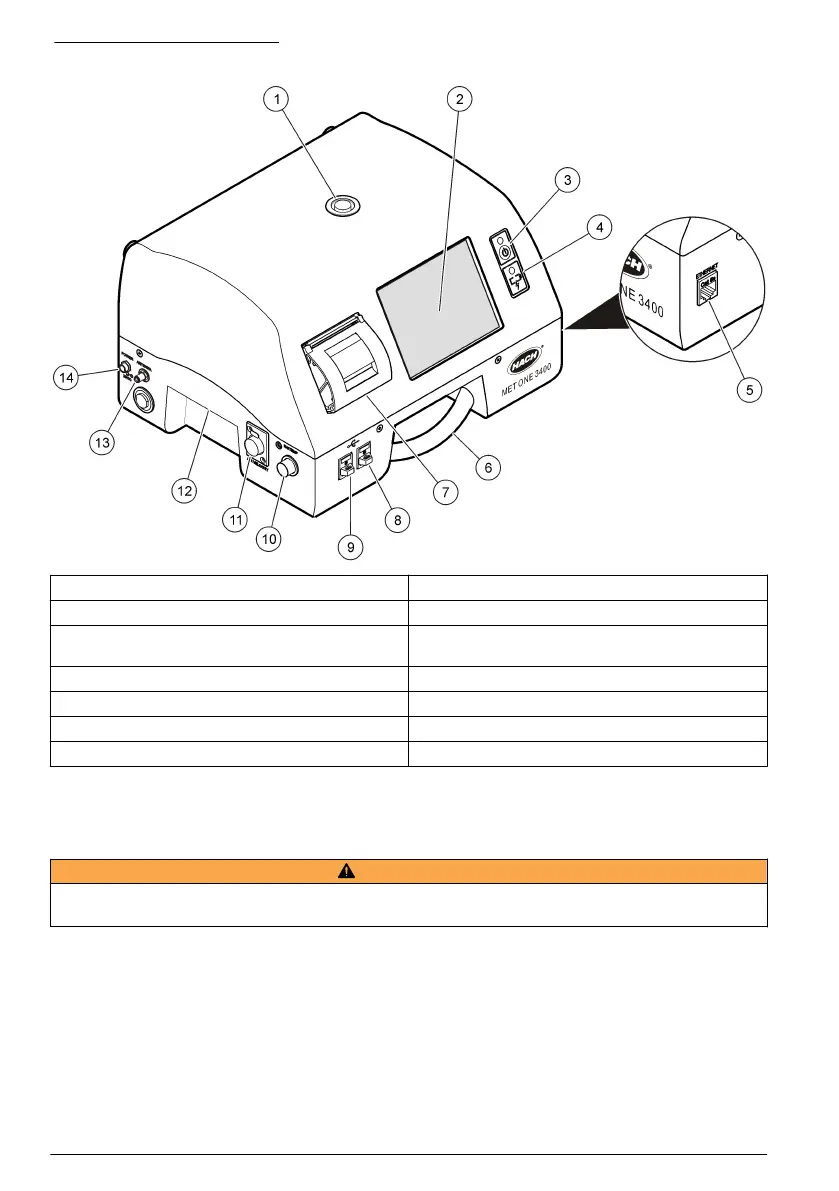

Figure 3 Front and side view
1 Sample intake nozzle 8 USB host connector
2 Touchscreen 9 USB client connector
3 Power button 10 Relative humidity and temperature probe
connector
4 Battery status indicator 11 Air velocity probe connector
5 Ethernet connector 12 Handle
6 Handle 13 Wireless antenna connector
7 Printer 14 Power connector
Note: For best results, use USB flash drives supplied by the manufacturer. Contact Customer Service for additional
support at 800.866.7889 or +1.541.472.6500.
Install the batteries
W A R N I N G
Explosion hazard. To avoid fire and/or explosion, use only the battery type and power supply/charger specified by
the manufacturer. For part numbers, refer to Figure 1 on page 10.
12 English
