Hach Polymetron 9500 Basic User Manual

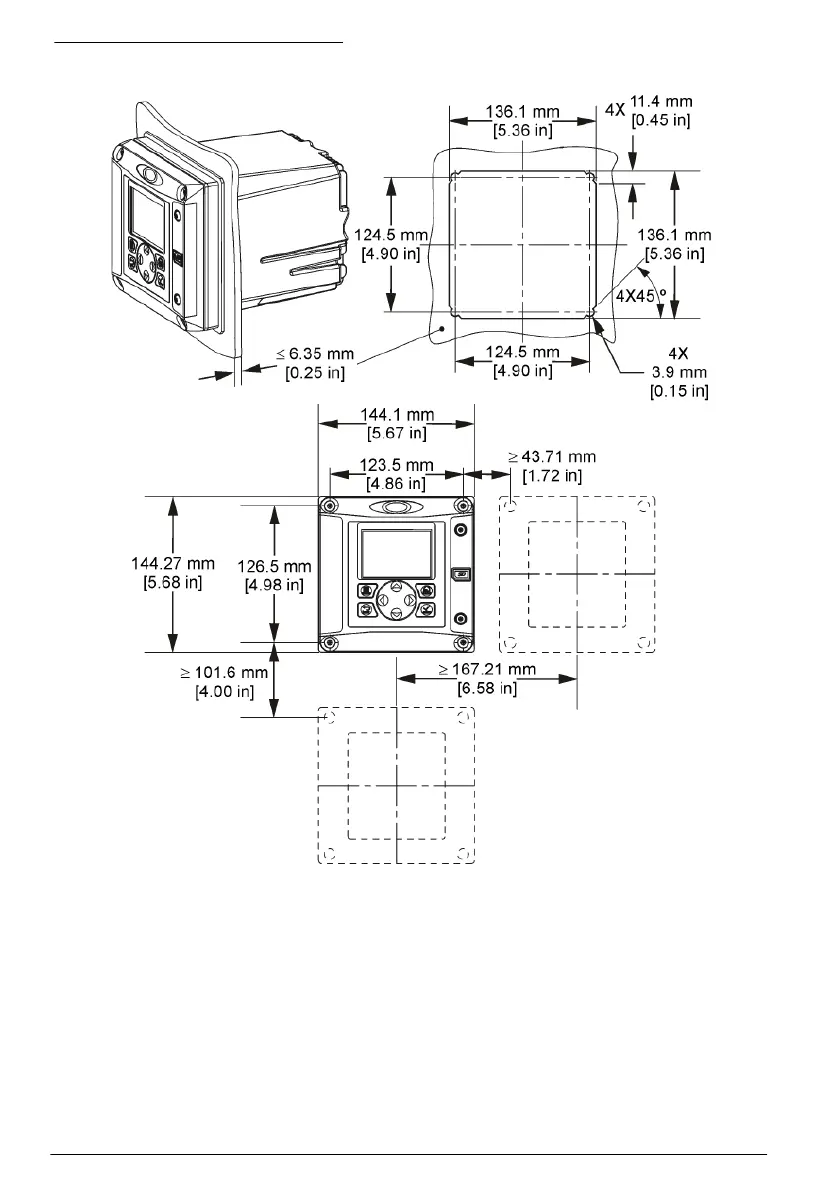

Figure 4 Panel mounting dimensions
Note: If using the bracket for panel mounting (supplied), push the controller through the hole in the panel and then
slide the bracket over the controller on the back side of the panel. Use the four 15 mm pan head screws (supplied)
to attach the bracket to the controller and secure the controller to the panel.
10
English

Hach Polymetron 9500 Specifications

General

Brand	Hach
Model	Polymetron 9500
Category	Controller
Language	English
