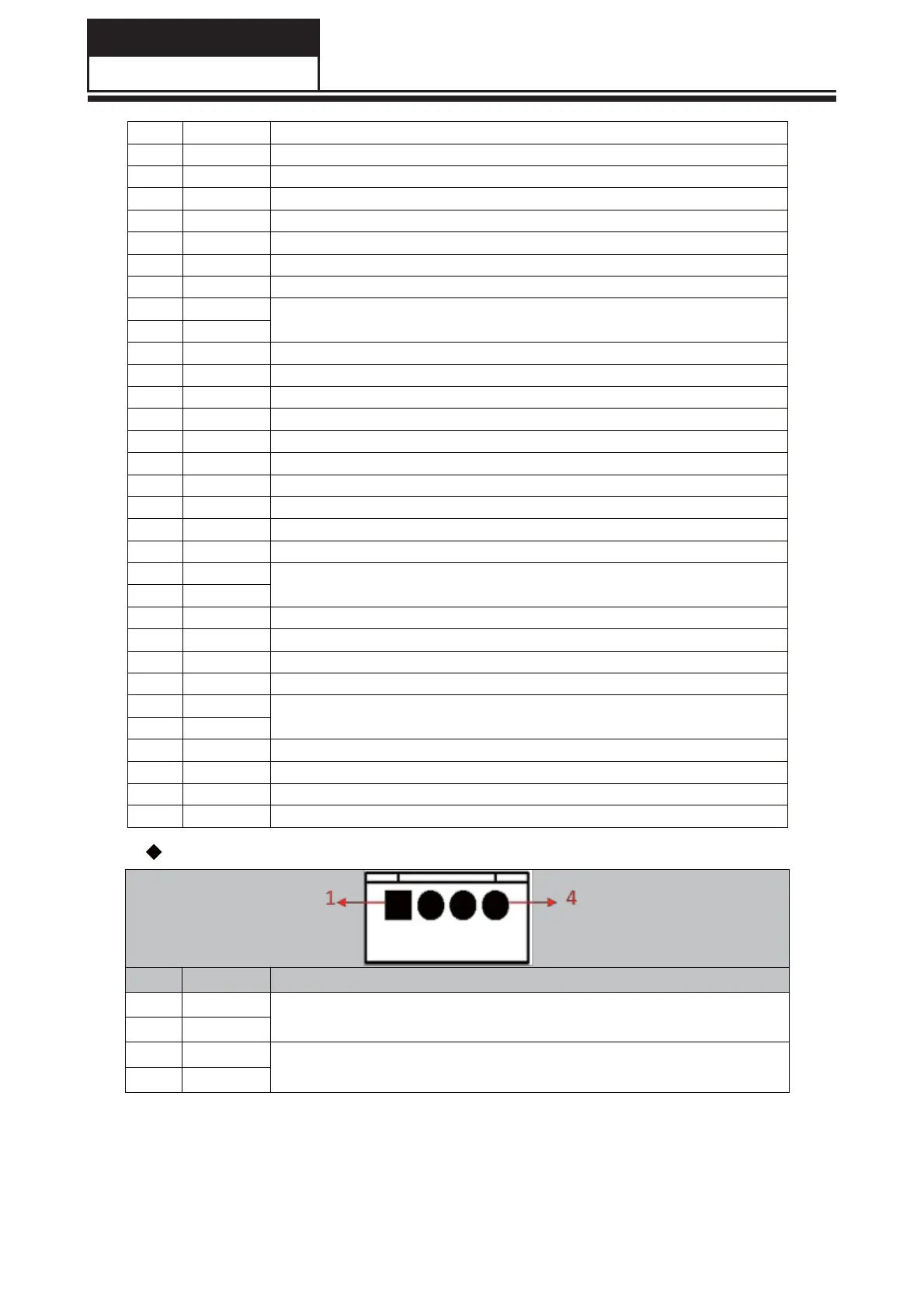

Haier 48E2500 - LVDS and EXT-5 V Connectors; LVDS Interface Connector Details; EXT-5 V Connector Pinout

Service Manual
Model No.: 48E2500
- 10 -
5GND
6 NC No Connection
7RXO0- LVDSODD0-Signal
8RXO0+ LVDSODD0+Signal
9RXO1- LVDSODD1-Signal
10 RXO1+ LVDS ODD 1+ Signal
11 RXO2- LVDS ODD 2- Signal
12 RXO2+ LVDS ODD 2+ Signal
13 GND
Ground
14 GND
15 RXOC- LVDS ODD Clock- Signal
16 RXOC+ LVDS ODD Clock+ Signal
17 RXO3- LVDS ODD 3- Signal
18 RXO3+ LVDS ODD 3+ Signal
19 RXE0- LVDS EVEN 0- Signal
20 RXE0+ LVDS EVEN 0+ Signal
21 RXE1- LVDS EVEN 1- Signal
22 RXE1+ LVDS EVEN 1+ Signal
23 RXE2- LVDS EVEN 2- Signal
24 RXE2+ LVDS EVEN 2+ Signal
25 GND
Ground
26 GND
27 RXEC- LV D S EVEN Clock- Signal
28 RXEC+ LVDS EVEN Clock+ Signal
29 RXE3- LVDS EVEN 3- Signal
30 RXE3+ LVDS EVEN 3+ Signal
*31 GND
Ground
*32 GND
*33 CON1 LOGIC LEVEL CONTROL(DEFIAULT FOR NC)
*34 CON2 LOGIC LEVEL CONTROL (DEFIAULT FOR NC)
*35 VSEL1 Reserved Power or I
2
CSCL
*36 VSEL2 Reserved Power or I
2
CSDA
*CN1 (4PIN/2.0): EXT-5V CONNECTOR
NO. SYMBOL DESCRIPTION
1GND
Ground
2GND
35V
+5V DC Power Supply
45V
