11

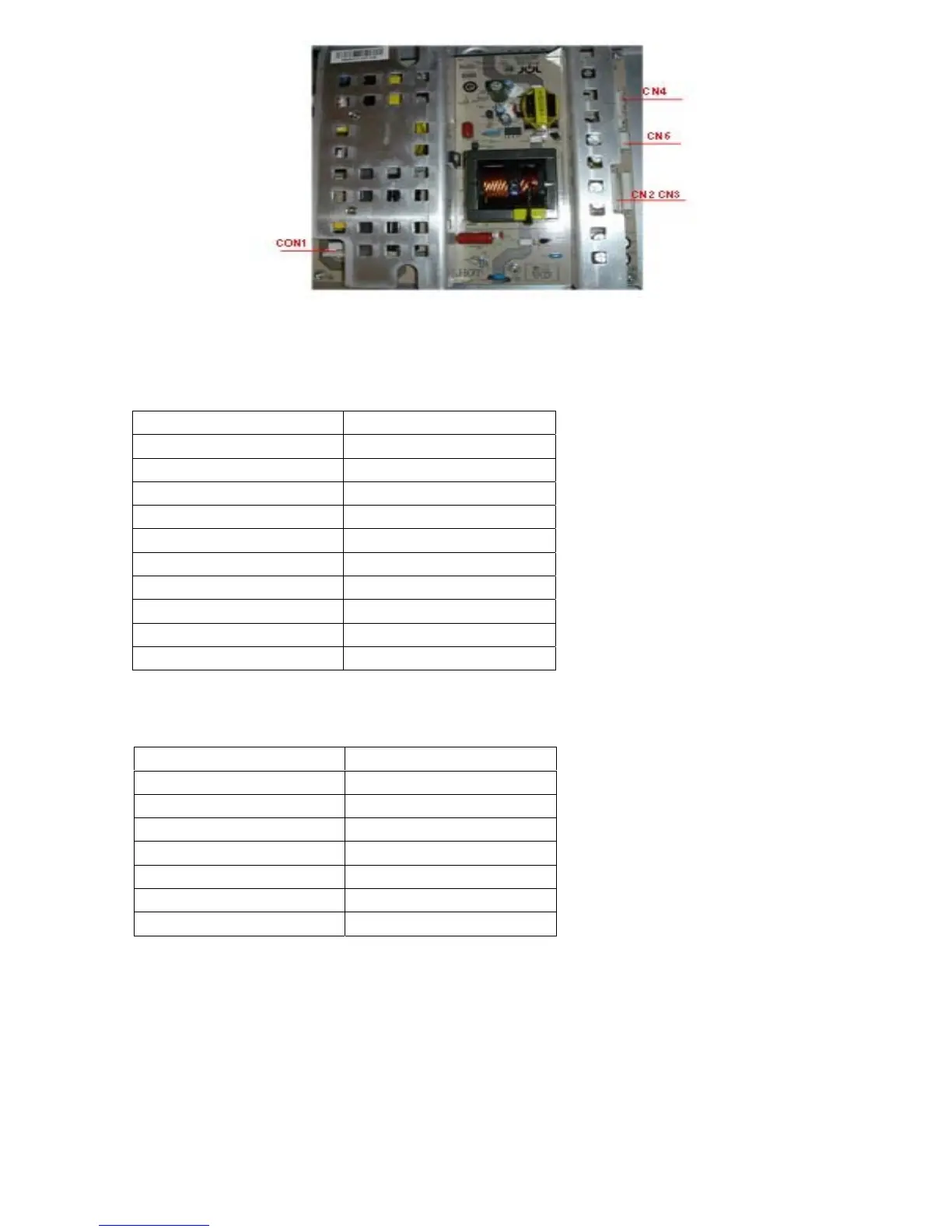

3.3.2 Connector definition
CONNECTO
R (CN2 CN3)
CONNECTOR (CN4)
CN2 CN3 Signal name
1 24V
2 24V
3 24V
4 24V
5 24V
6 GND
7 GND
8 GND
9 GND
10 GND
CN4 Signal na
me
1 ON/OFF
2 GND
3 5VSB
4 GND
5 GND
6 12V
7 12V
