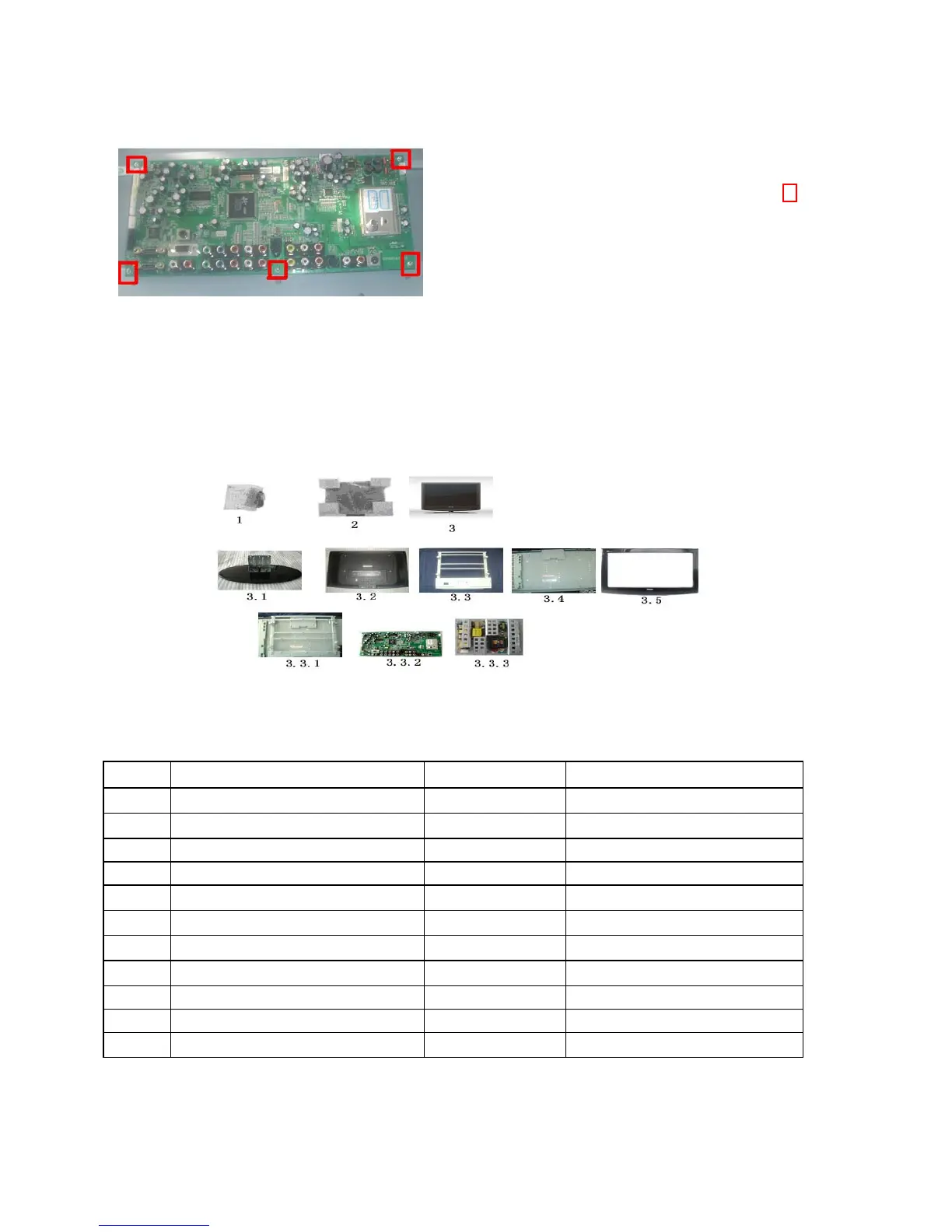

6. Remove the Main board
A. Disconnect the 7 connectors – CNA1,
CN1, CNE1, CNE2, CND1, CNA2
B. Remove the five screws indicated with
6.1 Whole Machine
The whole machine includes Packaging subassembly, Front-frame subassembly, Back-cover
subassembly, Screen bracket subassembly, Base subassembly, LCD panel, Power Supply
P.C.B., and Wire subassembly.
Components List
NO Name Description Parts number
1 Bagging of owner's manual
2 Bagging of whole machine
3 TV Set
/
3.1 Base subassembly
3.2 Back cover subassembly
3.3 Armor Plate
3.3.1 Metals slice
3.3.2 Main Board
3.3.3 PSU
3.4 LCD PANEL
3.5 Front frame subassembly
26
