13
27 RE[1]P EVEN LVDS SINGAL-
28 RE[1]N EVEN LVDS SINGAL+
29 RE[2]P EVEN LVDS SINGAL-
30 RE[2]N EVEN LVDS SINGAL+

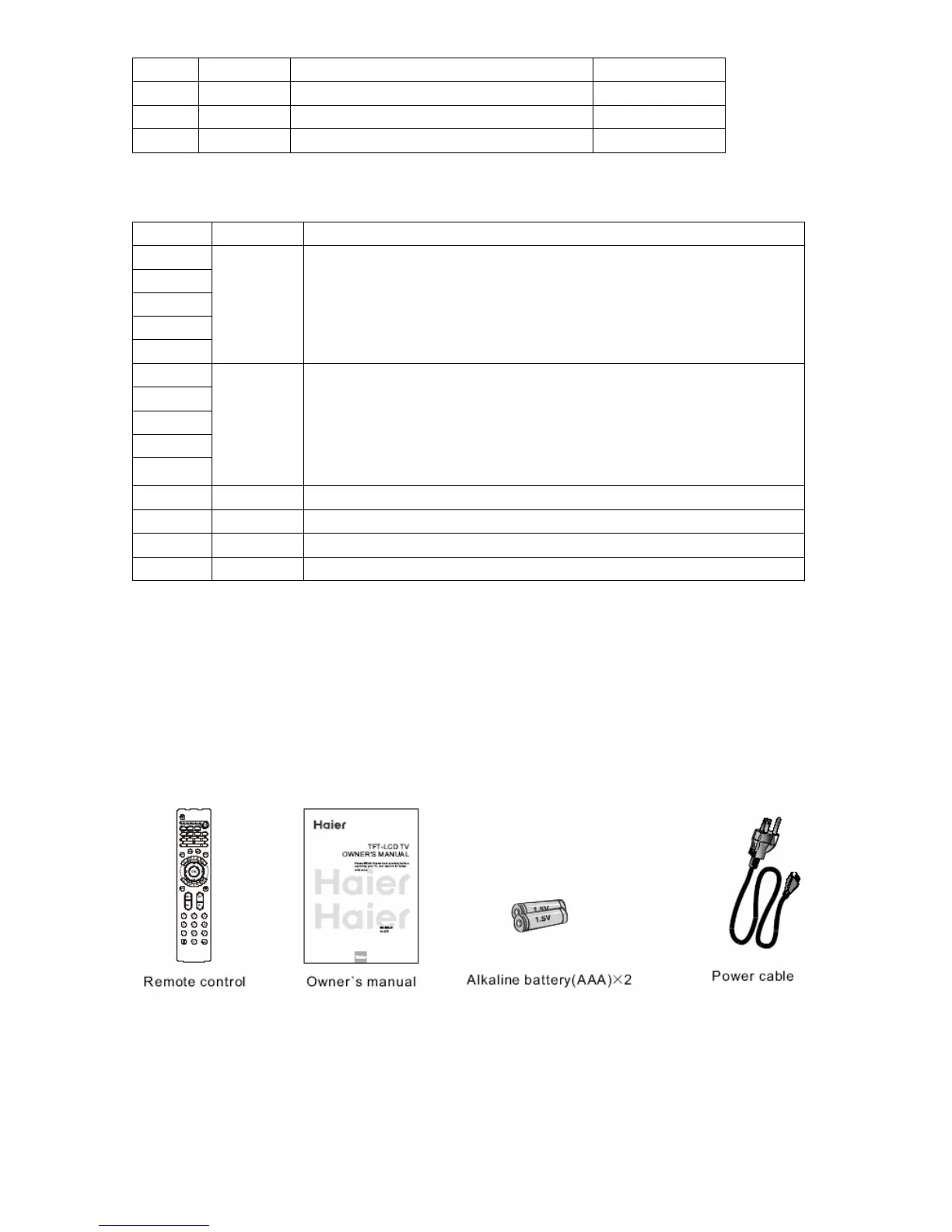

CND1(Header):S14B-PH-SM4-TB(D)(LF)(JST) or equivalent.
Pin No. Symbol Description
1
2
3
4
5
VBL +24V Power input
6
7
8
9
10
GND Ground
11 NC NC
12 BLON BL ON/OFF
13 PWM Internal PWM Control
14 NC NC
4. INSTALLATION INSTRUCTIONS
4.1 External Equipment Connections
Accessories
Antenna Connection
Generally speaking, to enjoy a clearer picture, we recommend that you use a CATV system or an
outdoor antenna . location and antenna positioning.
