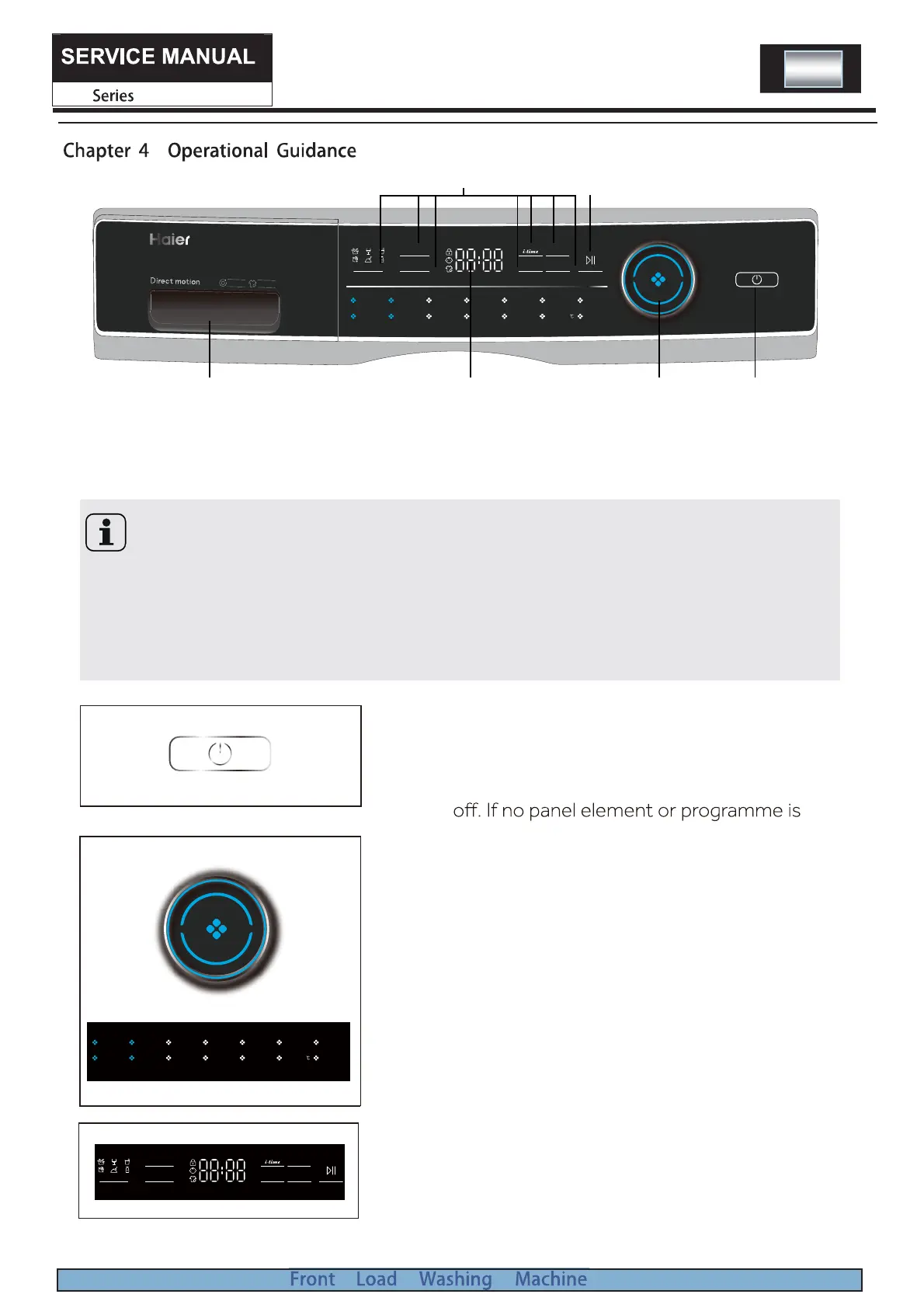

Haier HW100-B14979 Service Manual

1
“Power” button
2
Programme selector
3
Display
Detergent /Softener drawer4
5
Function buttons
6
“Start/Pause“ button
Stain removal
Delay
Steam
Extra Rinse
Speed
Temp.
Outdoor
Spin
Cotton
Synthetics
Wool
Express 15’
Refresh
MixBabycare
Duvet
Eco 40-60Cotton 20
Delicate
Fast
REFRESH
525 DRUM
4 2
3 1
6
5
Note : Acoustic signal
In following cases, an acoustic signal is no sounds by default:
▶ when pressing a button
▶ when turning the programmes selec
tor
▶
▶
at the end of programme
The acoustic signal can be selected if necessary ; see DAILY USE.
4.1 ”Power” button
4.2 Programme selector
4.3 Display
Touch this button (Fig. 4-2) gently to switch on, the
display is shining, the indicator of the “Start/Pause”
button is flashing. Press it again for about 2 seconds
to switch
By turning the knob (Fig. 4-3) one of 14 programmes
can be selected, related LED will light up, its default
settings will be displayed.
The display (Fig. 4-4) shows following information:
Washing time
▶
End time delay
▶
Error codes and service information
▶
Function buttons and “Start/Pause“ button
activated after a while machine will shut down auto-
matically.
4-2
4-3
Outdoor
Spin
Cotton
Synthetics
Wool
Express 15’
Refresh
MixBabycare
Duvet
Eco 40-60Cotton 20
Delicate
Fast
4-4
Stain removal
Delay
Steam
Extra Rinse Speed
Temp.
979
9

Haier HW100-B14979 Specifications

General

Door color	Black
Door hinge	Left
Motor type	Beltless
Water fill	Cold
Control type	Rotary, Touch
Display type	LED
Loading type	Front-load
Tub material	Plastic
Drum material	Stainless steel
Product color	White
Built-in display	Yes
Custom panel-ready	-
Illumination color	Blue
Appliance placement	Freestanding
Drum capacity	10 kg
Cycle time (max)	238 min
Delay start (max)	24 h
Spin-drying class	B
Maximum spin speed	1400 RPM
Noise level (spin)	69 dB
Noise level (wash)	- dB
Number of washing programs	14
Maximum washing temperature	90 °C
Power plug type	Type F (CEE 7/4)
AC input voltage	220 - 240 V
Energy efficiency scale	A to G
Power consumption (standby)	0.45 W
Water consumption per cycle	51 L
Energy consumption washing per cycle	0.512 kWh
Package depth	646 mm
Package width	653 mm
Package height	890 mm
Package weight	82000 g

Weight and Dimensions

Depth	620 mm
Width	590 mm
Height	850 mm
Weight	77000 g
