●Adjusting the solder feed position
Adjustment screw ②
Eccentric tuning screw ③
17
●How to change the solder diameter
You can change the solder diameter by replacing the teflon tube, the solder feed guide set or
the solder feed pulley unit.
The compatible solder diameters varies by model number of the HAKKO FU-500.
Please check your model number and then see the part list on the back cover of this manual when
you need some part replacement.
Loosen
Loosen
Loosen
●How to install the teflon tube
Turn the solder feed guide nozzle counterclockwise and remove the solder feed guide support.
You can now install the teflon tube. Lastly, insert the guide pipe.
The teflon tube is quite long in length. Cut the excess length of the teflon tube to leave an appropriate
length (about 3 to 5 mm) from the guide pipe before use.
Guide pipe
Guide tube
Solder feed guide support
Teflon tube
Solder feed guide nozzle

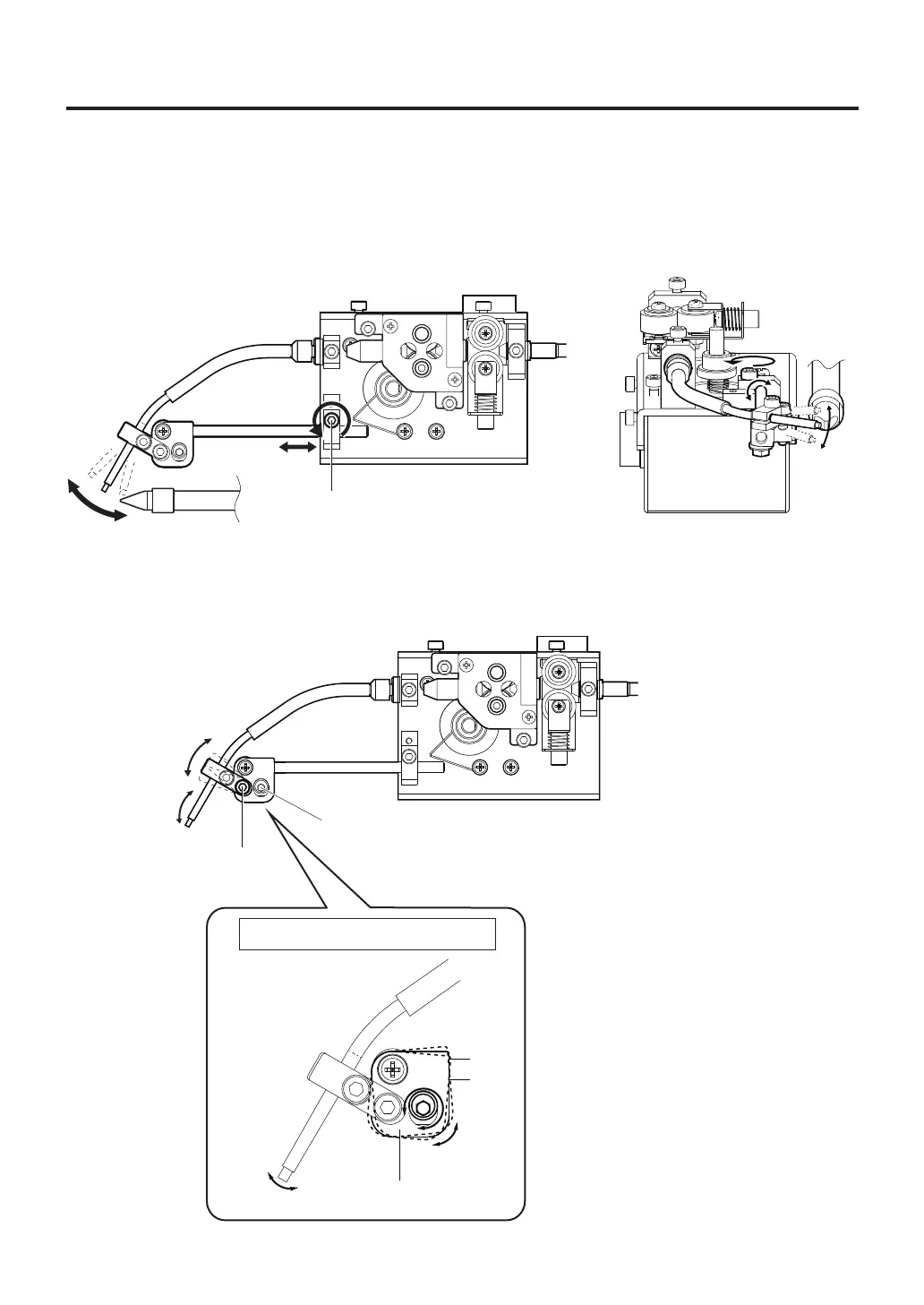

１. Loosening the adjustment screw ① will allow you to move the entire solder feed guide set as shown
in the figure below. Move the solder feed guide set to the tip.
２. Loosening the adjustment screw ② will allow you to move the guide pipe as shown in the figure
below. Move the guide pipe until solder comes into contact with the tip.
Turning the eccentric tuning screw ③
will turn the feed position adjuster
together, allowing you to make tuning.
(This screw cannot be removed.)
Adjustment screw ①
Only use compatible solder of specified size.
Failing to do so may cause a failure.
The attachment of the solder feed pulley unit
for φ0.3mm (BX1000) is different.
Refer to the “How to set solder” in the BX1000.
Feed position adjuster
Eccentric tuning screw③
Makesurethattheteflontubeprotrudesfromtheguidepipebeforeuse.
Otherwise,theguidepipemaybecloggedwithsolder.
Itisimportanttouseacutterknifeinsteadofscissorstocuttheteflontubecarefullyinordertoprevent
theendofsolderwirefrombeingsquished.
Cut
About 3 to 5 mm
CAUTION
CAUTION
Hex wrench size : 2.5mm
