9.6 Drilling
Note: A workpiece lying on the mortising table is held in place by an eccentric clamp and can only be
machined on the front side.
9.6.1 Work place/work position

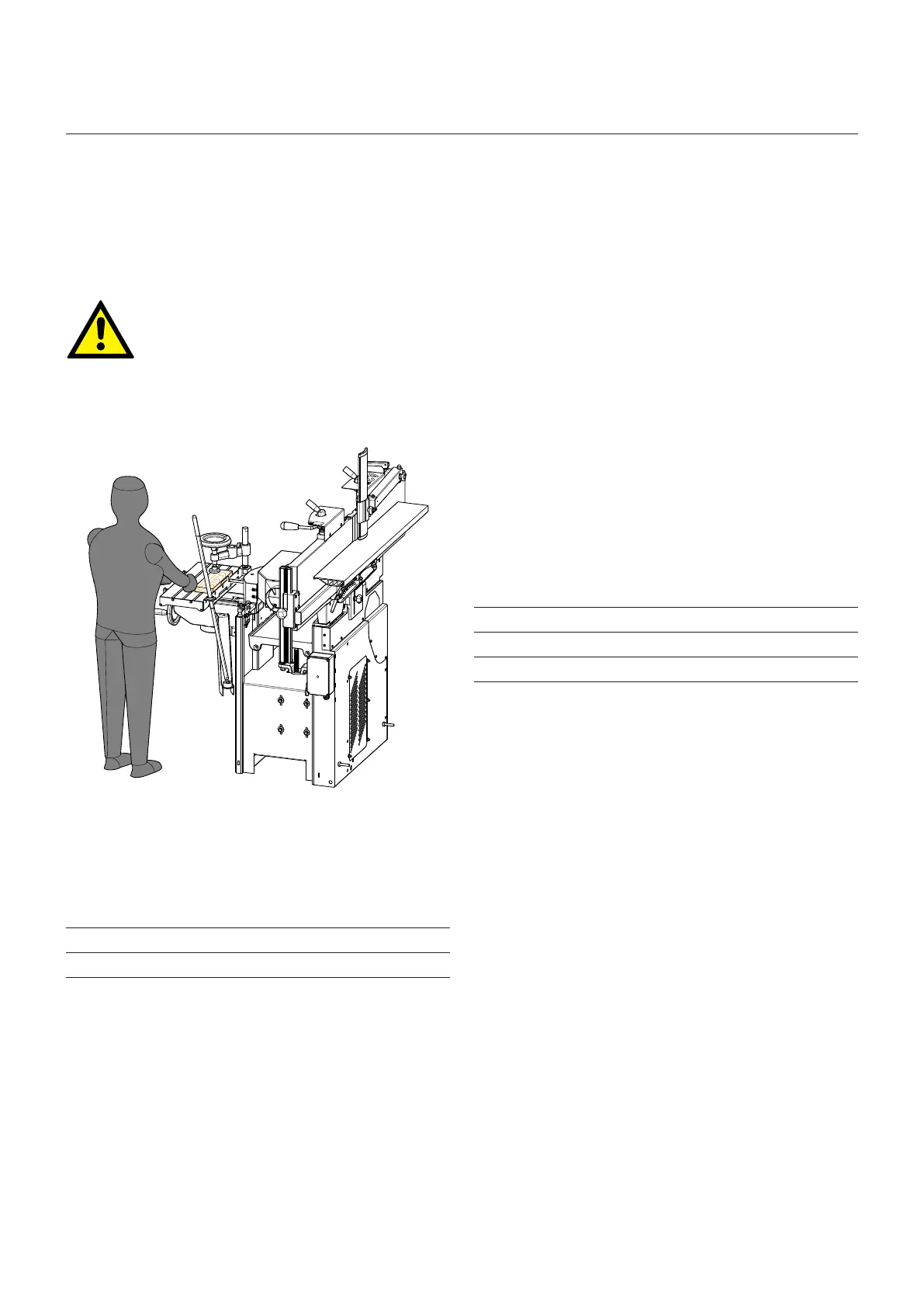

Fig. 9-20: Work place/work position
Only the following working techniques are permitted on
the drilling unit:
• Drilling holes with or without a depth stop
• Removing knots
• Creating dowel holes
• Producing slots and deep holes
It is absolutely forbidden to perform the following wor-
king techniques on the drilling unit:
• Using abrasive wheels of any kind
• Moulding with moulding tools
9.6.2 Workpiece dimensions
9.6.3 Authorised and prohibited work techniques
Length max. 1500 mm
Width max. 200 mm
Thickness max. 100 mm
Attention! Risk of injury!
The drill bit can bore all the way through the workpiece. Do not place your hand on the workpiece in the
vicinity of the bore.
When working, adopt the working position displayed in
the diagram opposite.
Use only original HAMMER mortising tools (See Acces-
sory catalogue) Only the following left-hand cutting tools
are authorised:
Dowel bit Ø 4–6 mm
Router bit Ø 4–16 mm
Forstner drill Ø 15–35 mm
Plug cutters Ø 10–35 mm
Operation
