Planer-Thicknesser
A3-26 / A3-31 / A3-41
11.6 Correcting the angle of the planing fence
1. Before beginning any maintenance work on the
machine, switch it off and secure it against acciden-
tally being switched on again.
2. Loosen the clamping lever.
3. Loosen the lock nuts.
4. Position a sample workpiece or right angle against
the combination fence
5. adjust the fence screws
6. Tighten the lock nuts.
7. Test the adjustment and if required, readjust.
! fence screws - 90°
" fence screws - 45°
# Lock nut

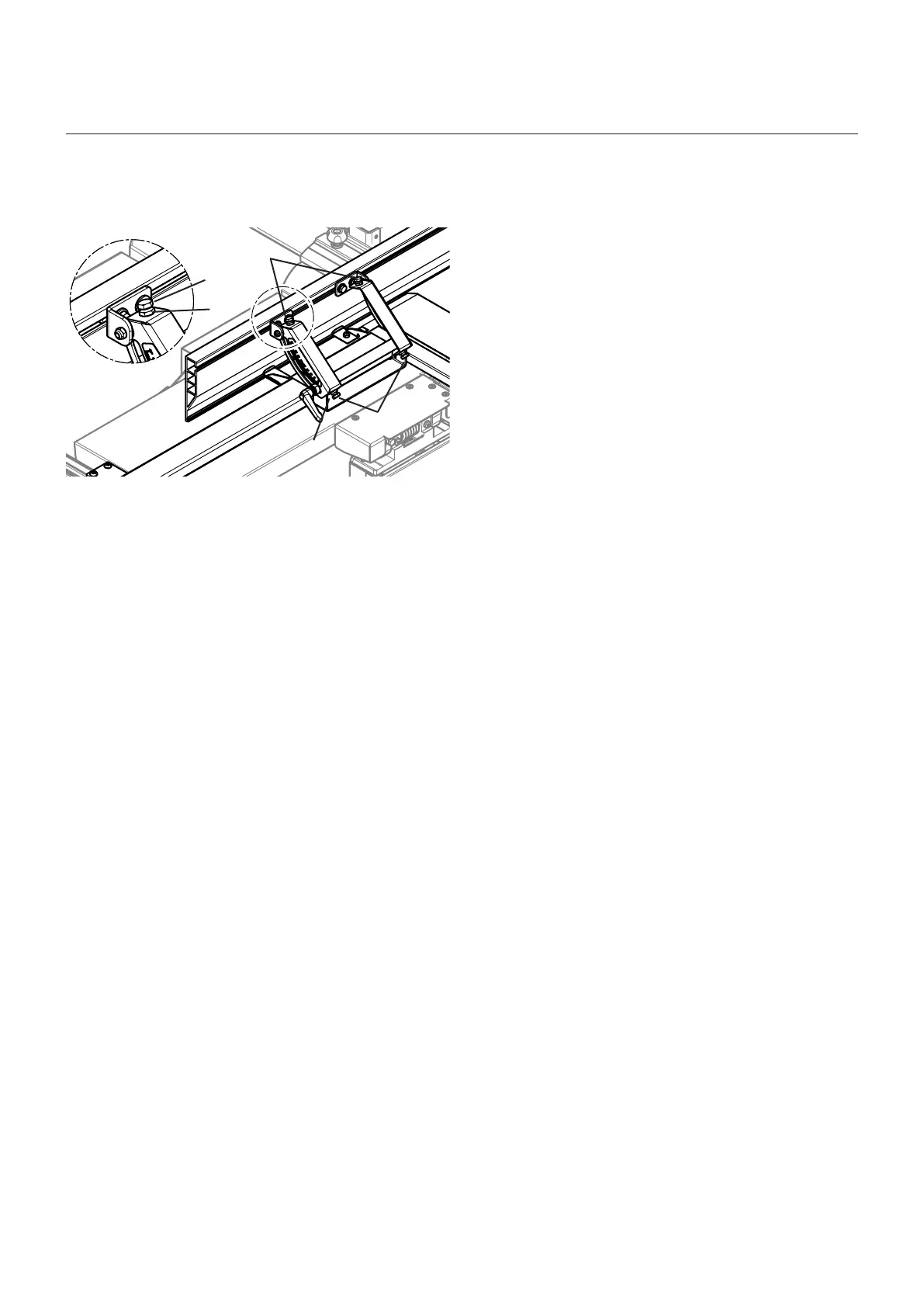

Fig. 11-6: Correcting the angle of the combination fence
