Hammer N2-38 - Data Plate; Automatic Braking System; Brake System - USA Model

18
!
Bandsaw
N2-38 / N3800 / N4400

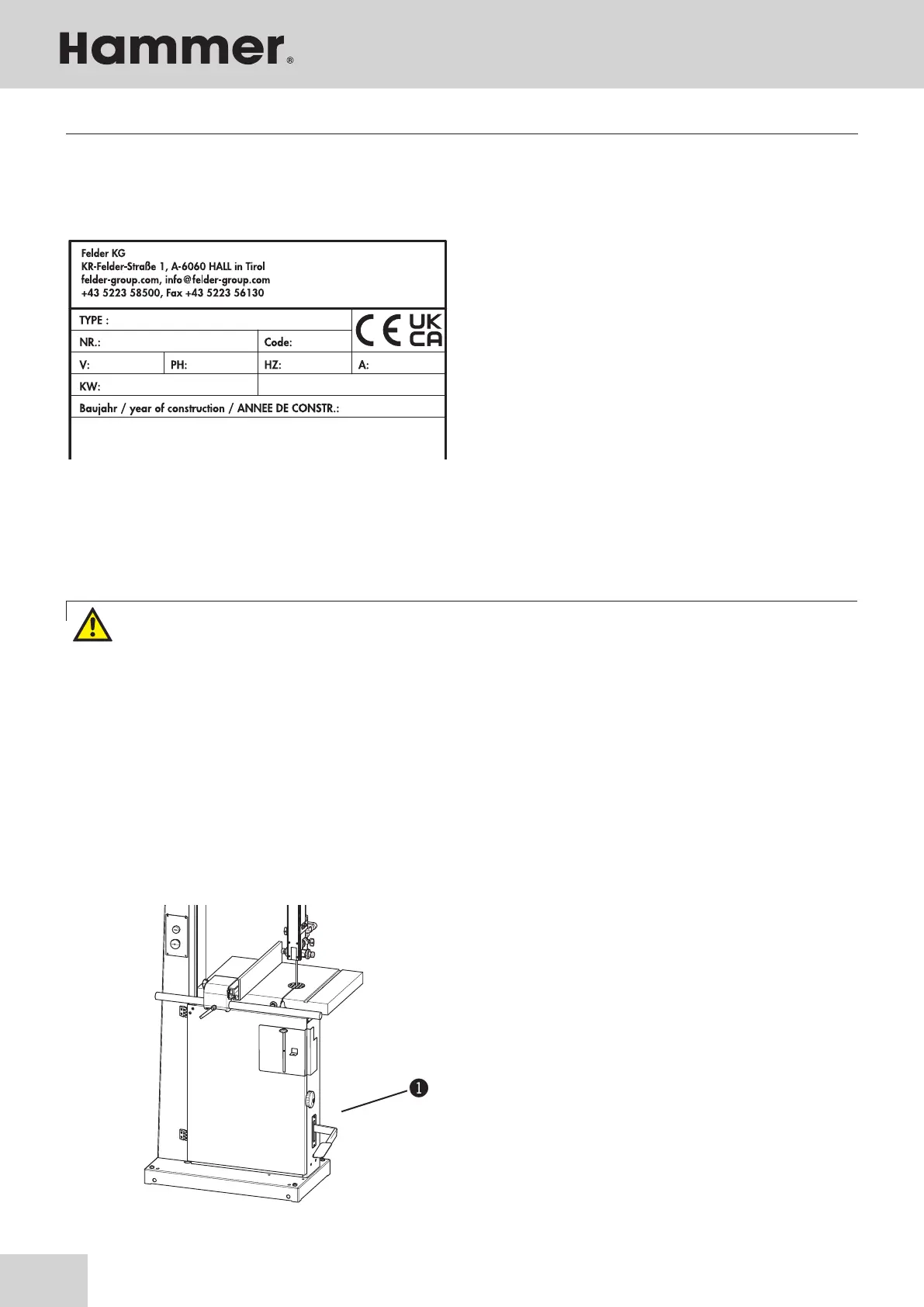

5.2 Data plate
The data plate displays the following specifications:
• Manufacturer information
• Model designation
• Machine number
• Voltage
• Phases
• Frequency
• Motor
• Power supply
• Year of construction
• Motor specifications
Fig.. 5-2: Data plate
The machine is equipped with a mechanical brake,
which guarantees that all the moveable parts will come
to a stop within 10 seconds, once the machine has been
switched off.
Les machoires du frein sont des pièces d‘usure et doivent
être contrôlées régulièrement et si nécessaire échangées,
afin que le frein fonctionne dans le délai impartit.
Please contact the FELDER KG service department, if
problems or a fault- function should occur!
5.4 Brake system - USA model
!Foot brake
Fig. 5-3: Foot brake
5.3 Automatic braking system
Your machine is equipped with an automatic braking
unit. The brake is a maintenance-free DC braking unit.
All necessary adjustments are done ex factory.
Please contact the FELDER KG service department, if
problems or a fault- function should occur!
Assembly
Warning! Risk of injury!
In the event of a power supply failure, the electric brake is deactivated. The tool can therefore not come to
a complete stop within 10 seconds.
In this case, the machine will stop without using the the automatic braking system!
