Bandsaw
N2-38 / N3800 / N4400
Operation
Setting the rear guides
1. Loosen the clamping screw.
2. Move the back guide.
Adjust the back guide parallel to the saw band back
with a small distance.
3. Tighten the clamping screw.
Setting the side guiding elements
direction A
1. Loosen the clamping screw.
2. Move the saw band guide on the adjusting pin.
The side guides must be positioned behind the main
teeth of the saw blade, and even when cutting, must
not be able to come in contact with the teeth.
3. Tighten the clamping screw.
direction B
1. Loosen the thumb nut.
2. Adjust the distance with the adjusting screw.
The side guide rollers should touch the saw blade
slightly so as to obtain a straight and vibration-free
cut.
3. Secure the thumb nut.
! Clamping screw
" Sliding link pins
# Thumb nut
$ setscrew

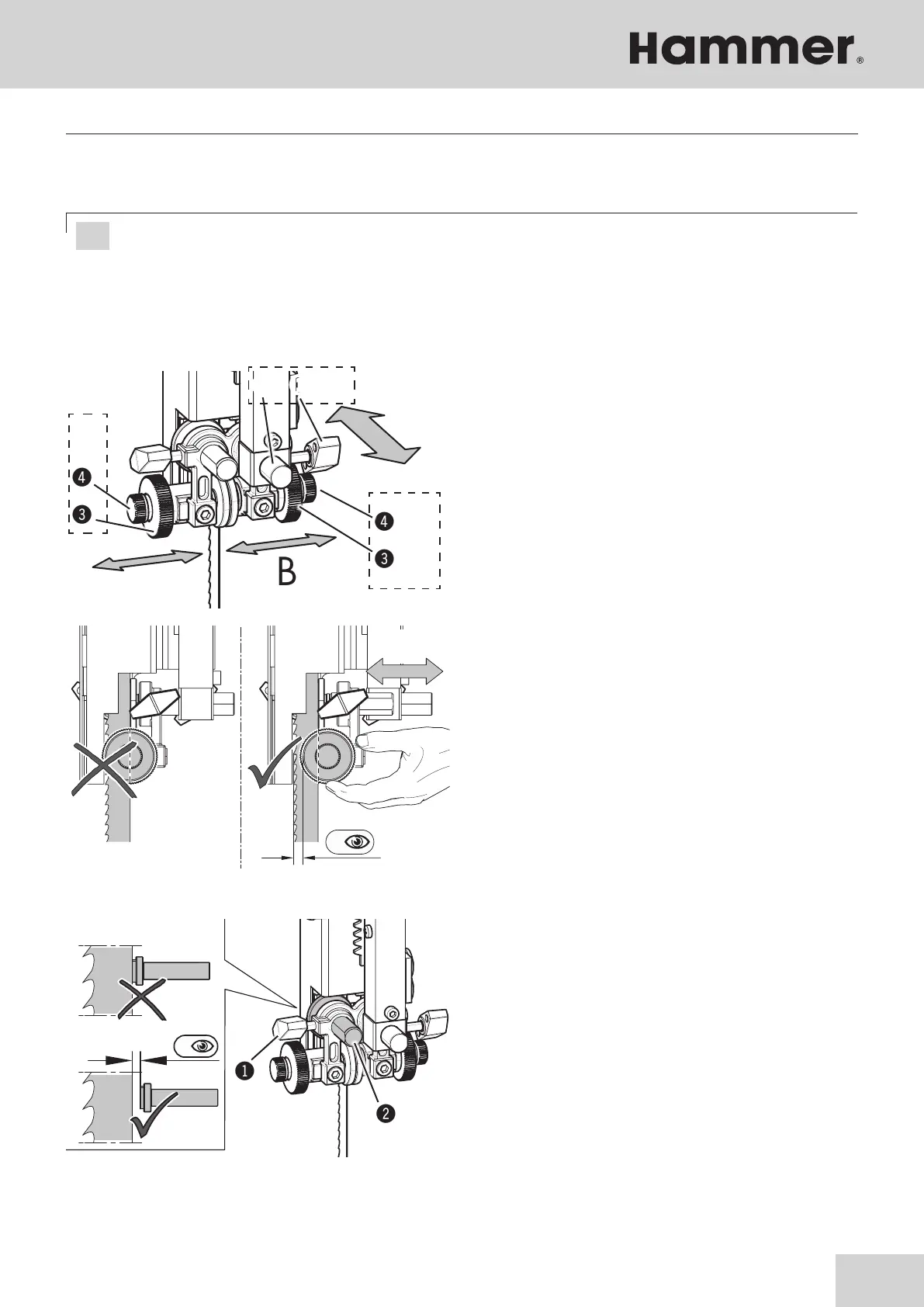

Fig. 7-6.1: Setting the side guiding elements
! Clamping screw
" back guide
Fig. 7-6.2: Setting the rear guides
7.5.3 Saw blade guide - General guidelines
Attention! Risk of material damage!
The saw band guides can only be adjusted after the band tension and band run have been set correctly. The
saw band guides must be readjusted after each saw band change.
Make the following settings precisely to prevent possible ignition sparks.
