Hammond B-3 - Names and Functions; Top View of the Organ

*#1 $OM%OM$2OMOwner’s Manual
20
SWITCH PLATE
1. POWER Switch
This switch turns the power on and off.
CAUTION
Even when the POWER switch is turned off, electricity
is still flowing to the instrument at a minimum level. When
you are not using the instrument for an extended time,
make sure you unplug the power cord from the wall AC
outlet.
2. MOTOR CONTROL Switch
This is for changing the pitch while playing. If you move it back,
the pitch rises. If forward, it falls.
3. PILOT LAMP
Lights while the power is on.
LEFT TABLETS
4. VOLUME Tablet
This is for switching the volume; NORMAL or SOFT.
5. VIBRATO SWELL Tablet
This is for switching the vibrato and chorus on/off on the Swell
Manual Drawbars.
6. VIBRATO GREAT Tablet
This is for switching the vibrato & chorus on/off on the Great
and Pedal Drawbars.
7. VIBRATO & CHORUS MODE Knob
This is for switching the depth of vibrato and the chorus effects.
DRAWBARS
8. SWELL(Upper) A< Drawbars
These are for adjusting the harmonics of the Swell(Upper)
Manual, when the Preset Key [A<] of the Swell Manual is se-
lected.
9. SWELL(Upper) B Drawbars
These are for adjusting the harmonics of the Swell(Upper)
Manual, when the Preset Key [B] of the Swell Manual is se-
lected.
10. PEDAL Drawbars
These are for adjusting the harmonics of the Pedalboard.
11. GREAT(Lower) A< Drawbars
These are for adjusting the harmonics of the Great(Lower)
Manual, when the Preset Key [A<] of the Great Manual is se-
lected.
12. GREAT(Lower) B Drawbars
These are for adjusting the harmonics of the Great(Lower)
Manual, when the Preset Key [B] of the Great Manual is se-
lected.

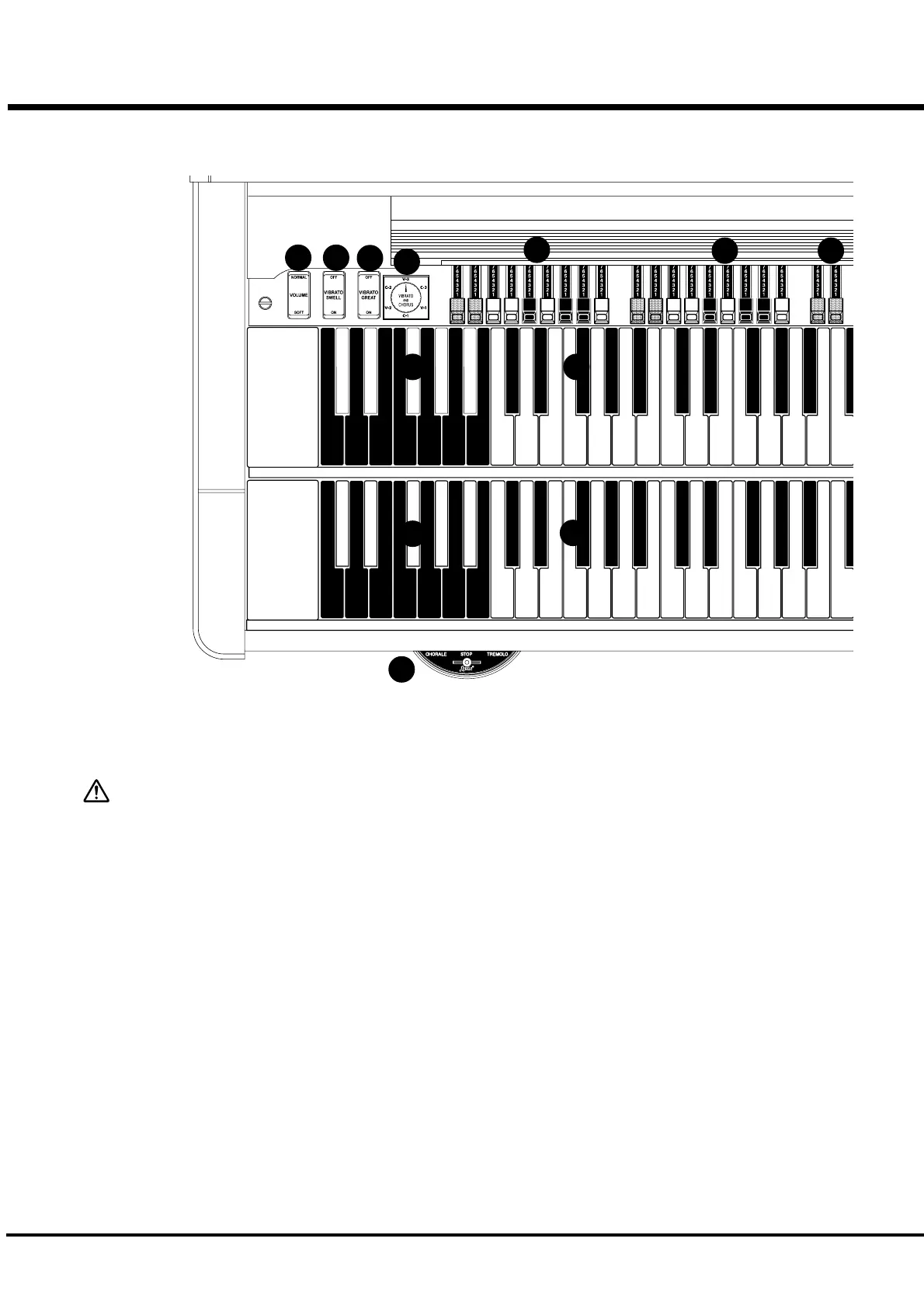

NAMES AND FUNCTIONS
Top View of the Organ
4 5
6
109
17 18
19
21
20
7
8
