*#1 $OM%OM$2OMOwner’s Manual
22

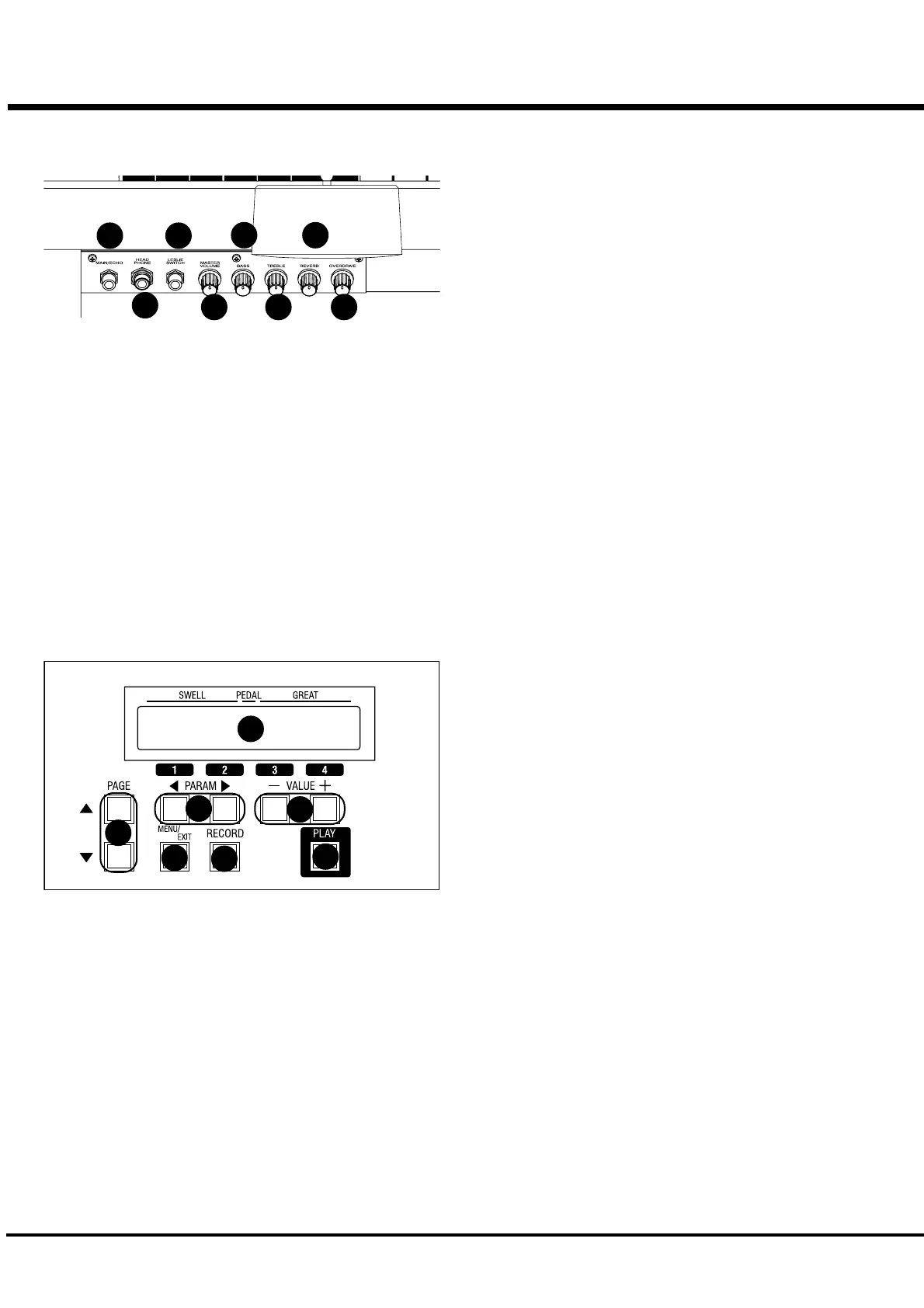

Volume Panel
Control Panel
Contained in the drawer on the bottom right of the manual. [B-3 mk2 and C-3 mk2]
Located inside the lid on the left-hand-side front panel. [B-3P mk2]
22. MAIN/ECHO Jack
This is for connecting the Main/Echo Switch MES-1.
23. HEADPHONE Jack
This is for connecting Headphones. The external Leslie speaker
is turned off, when a plug is inserted to this jack.
24. LESLIE SWITCH Jack
This is for connecting the Leslie Speed Switch (provided).
25. MASTER VOLUME Knob
This is for controlling the total volume of this organ.
26. BASS Knob
This is for increasing/decreasing the volume of the Bass frequen-
cies.
27. TREBLE Knob
This is for increasing/decreasing the volume of the Treble fre-
quencies.
28. REVERB Knob
This is for adjusting the depth of the Reverb effects.
29. OVERDRIVE Knob
This is for adjusting the depth of the Overdrive effects.
30. Display
Various information is displayed here.
31. PAGE Button
Used to scroll through the various pages of controls and param-
eters.
32. PARAM Button
This is used for selecting the parameter item to edit, also to se-
lect items #1 and #2 on the basic edit pages.
33. VALUE Button
This is used to increase or decrease values, also to select items
#3 and #4 on the basic edit pages.
34. MENU/EXIT Button
This is for calling the MENU mode, A for exiting from various
function modes, and jump to function modes.
35. RECORD Button
This is for recording Presets, also for shifting values or items.
36. PLAY Button
This is for jumping to the basic Play mode. It is also for using
the temporary scope function, or for changing the registrations
while the Preset Keys from [C<] to [A] are selected.
22
23
24
33
34
32
29
31
28
27
26
25
35
36
30
