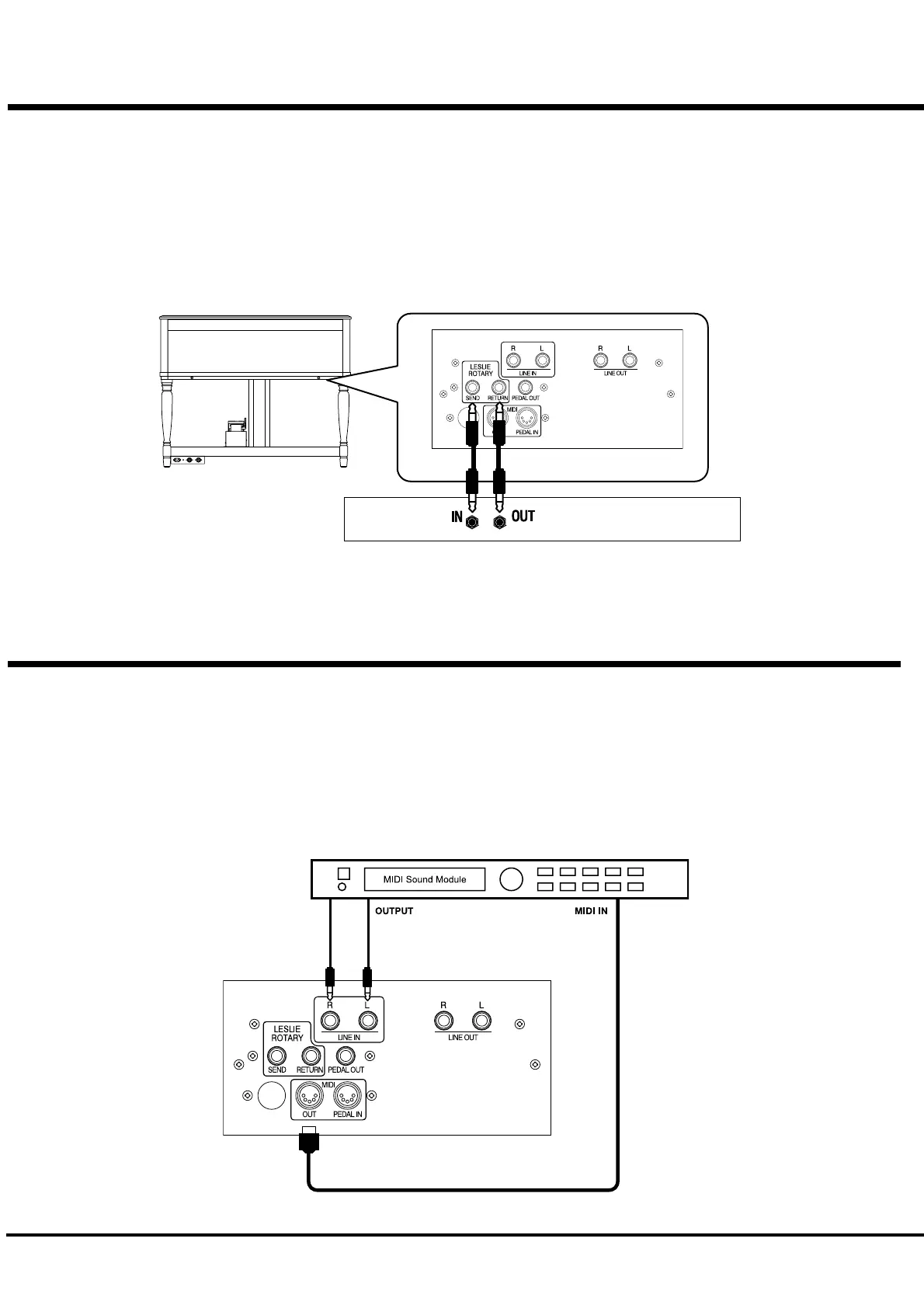

USING EFFECT LOOP
External effects may be used while a Leslie Speaker is connected
to the organ using the Effect Loop.
The effects unit should have the same input/output gain and cor-
responding with the rating level of +4dBm.
USING A MIDI SOUND MODULE
Each Manual and the Pedalboard on this organ has 3 External
Zones for controlling an external MIDI sound module. When
connected to the LINE IN jacks, the external MIDI sound mod-
ule output is sent to the stationary channel of the Leslie terminal
(on a so-equipped Leslie), the LINE OUT jack and the headphone
jack.
NOTE: Adjust the volume of the equipment connected to the
LINE IN jack on the external equipment itself.
NOTE: The Effect Loop is inserted between the built-in Effect
(Leslie, Reverb, etc.) and the Master Volume.
NOTE: If using the LINE OUT jack and the HEADPHONE jack,
simultaneously the Effect Loop will only function on the
R (right) side.
