Introduction
Hammond XPK-100 Quick Features Guide

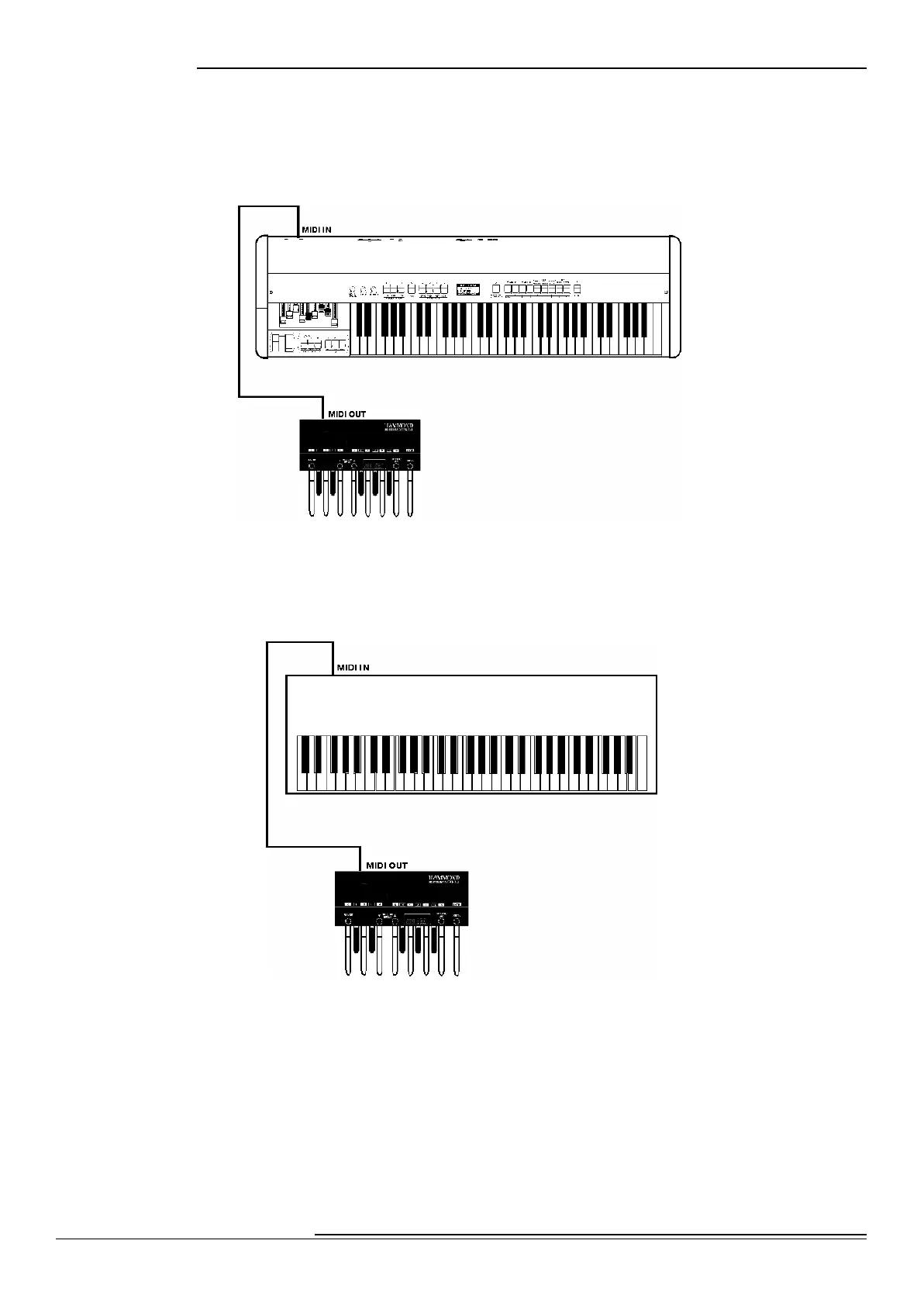

Connecting the XPK-100 to a Hammond Drawbar Keyboard
The XPK-100 is designed to interface directly with any current single-manual Hammond Drawbar
Keyboard. Simply connect the MIDI OUT of the XPK-100 into the MIDI IN of the Hammond Drawbar
Keyboard.
Connecting the XPK-100 to another keyboard instrument
The XPK-100 can also interface with other keyboard instruments - simply connect the MIDI OUT of the
XPK-100 into the MIDI IN of the other keyboard.
NOTE: Since there are a wide variety of MIDI-compatible keyboard instruments available, please consult the
documentation that came with your instrument to insure maximum compatibility. You may need to set certain
parameters such as MIDI Channel, etc., before the XPK-100 will function with your particular instrument.
