Hammond XPK-100 User Manual

3
Introduction
Hammond XPK-100 Quick Features Guide
MIDI Merge - Connecting the XPK-100 to the Hammond XM-1 Drawbar Module
Your XPK-100 is equipped with MIDI Merge technology, thereby making it easier to connect multiple
keyboards to it in order to play “organ style”: i.e., two manuals and pedals. Below is an example of how
to connect multiple keyboards and the XPK-100 together with the Hammond XM-1 Drawbar Module to
create a “virtual B-3":
Channel 1 -
Upper Manual
Channel 2 -
Lower Manual
Ham mond XM -1
Channel 3 -
Pedals
Connecting the XPK-100 to a Hammond Drawbar Keyboard and another keyboard instrument

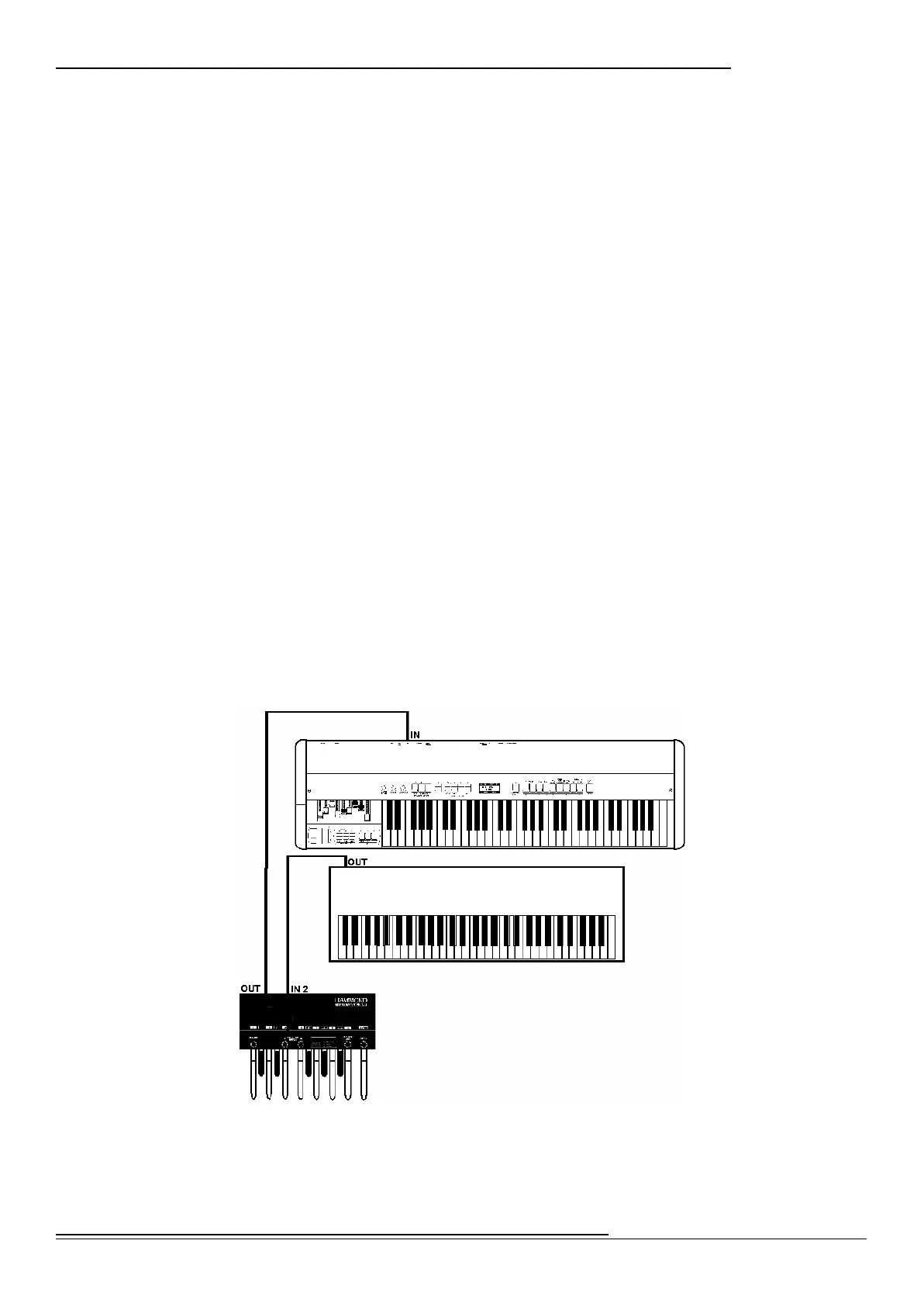

The bottom diagram shows how your XPK-100 can be connected to two keyboards, one of them being
a Hammond Drawbar Keyboard.

Hammond XPK-100 Specifications

General

Brand	Hammond
Model	XPK-100
Category	Music Pedal
Language	English
