Hamtronix ELEKTRA 2500 User Manual

ELEKTRA 2500 HAMTRONIX
4
CONNECTORS
PINOUT

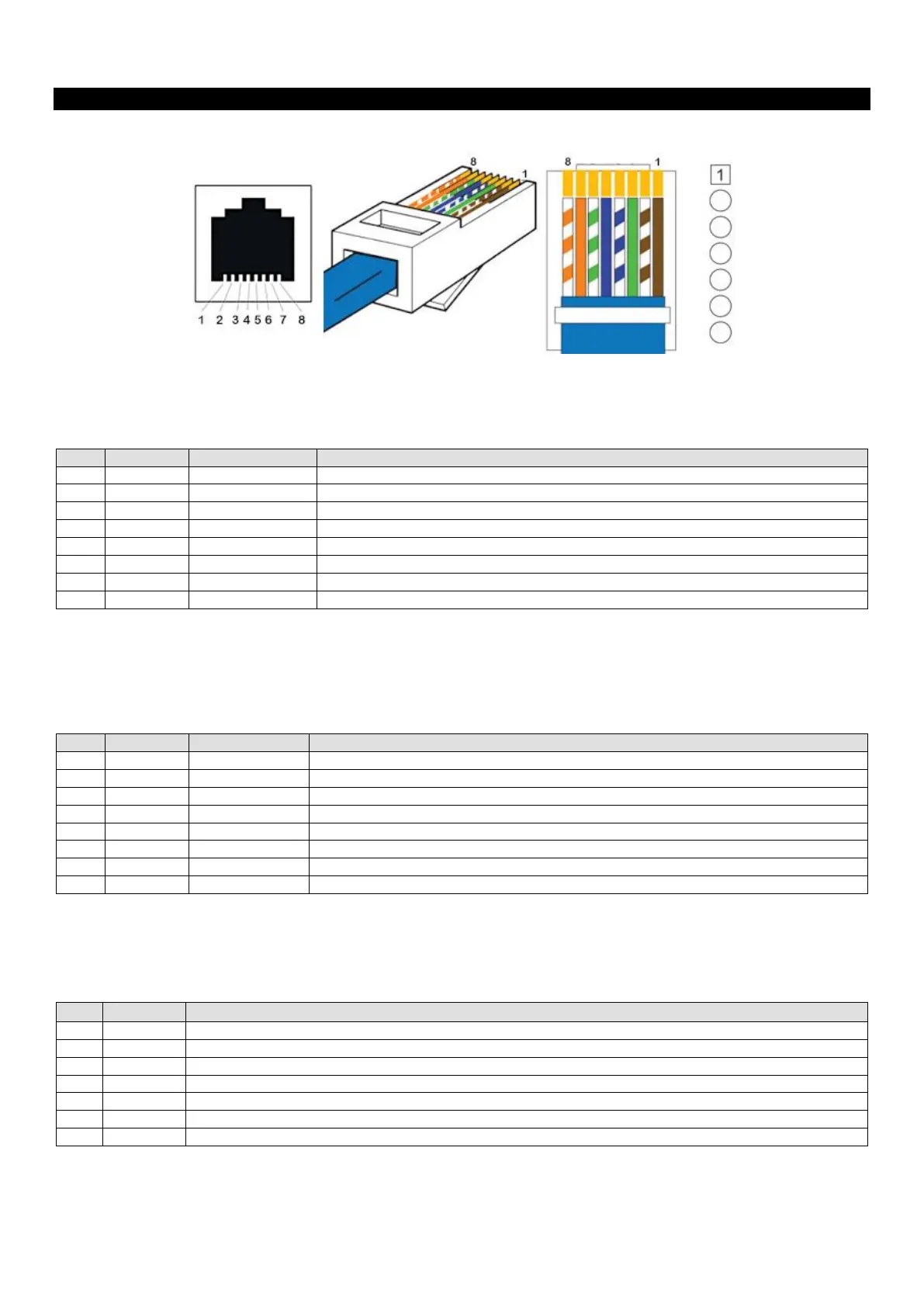

Female CN1/CN2 Male CN1/CN2 Male CN3
CN1 – Repeater (RPT)
Pin
Signal
Color
Description
1
RX1
Brown
RX audio input (come from receiver discriminator)
2
GND
Brown/White
Common ground (from power supply/receiver/transmitter)
3
MIC/MOD
Green
TX audio output (go to the transmitter mic/modulator)
4
PTT1
1
Blue/White
PTT output (go to the transmitter PTT)
5
COR1
2
Blue
COR/COS input (from receiver COR/COS) (Max. 15V)
6
TONE1
2
Green/White
PL/CTCSS logic input
7
FAN
3
Orange
Fan output
8
VCC
Orange/White
+ 13.8V DC VCC/170mA max.
Nota
1
: Open collector type – active in low - max. 300mA.
Nota
2
: COR1: J5 in C position and select the correct COR polarity in J3. Squelch: J5 in S position and J3 in (-).
Nota
3
: Active in low (low: < 0.6V/high: > 2.4V and < 5.1V). Not used in model 2500CT.
Nota
4
: Open collector type – active in low - max. 300mA. To avoid noises in transmission use AC powered fan.
CN2 – Auxiliary (AUX)
Pin
Signal
Color
Description
1
RX2
Brown
RX audio input (come from receiver discriminator or speaker)
2
GND
Brown/White
Common ground (from power supply/receiver/transmitter)
3
MIC/MOD
Green
TX audio output (go to the transmitter mic/modulator)
4
PTT2
1
Blue/White
PTT output (go to the transmitter PTT)
5
COR2
Blue
COR/COS input (come from receiver logic)
6
TONE2
2
Green/White
PL/CTCSS logic input
7
ALM IN
Orange
Alarm input (active when higher than 2V DC (max. 15V)
8
MON IN
Orange/White
Monitoring input (active when higher than 2V DC (max. 15V)
Nota
1
: Open collector type – active in low - max. 300mA.
Nota
2
: Active in low (low: < 0.6V/high: > 2.4V and < 5.1V).
CN3 – Remote
Pin
Signal
Description
1
OUTPUT 1
Remote Logic Output 1 (OV=OFF/5V=ON)
2
OUTPUT 2
Remote Logic Output 2 (OV=OFF/5V=ON)
3
OUTPUT 3
Remote Logic Output 3 (OV=OFF/5V=ON)
4
OUTPUT 4
Remote Logic Output 4 (OV=OFF/5V=ON)
5
OUTPUT 5
Remote Logic Output 5 (OV=OFF/5V=ON)
6
OUTPUT 6
Remote Logic Output 6 (OV=OFF/5V=ON)
7
GND
Common Ground
Note 1: 10mA per port maximum. Exceeding this limit can damage the microcontroller.
Note 2: These digital output ports are also available in 2500CT model but cannot be used at the same time with the
built in CTCSS decoder. If the decoder is being used and you change a remote output, the frequency of the decoder
will change randomly.
