Hanbell RC2-930A - Page 61

Technical Manual VERSION 2.0 -10-18-2018
61

 



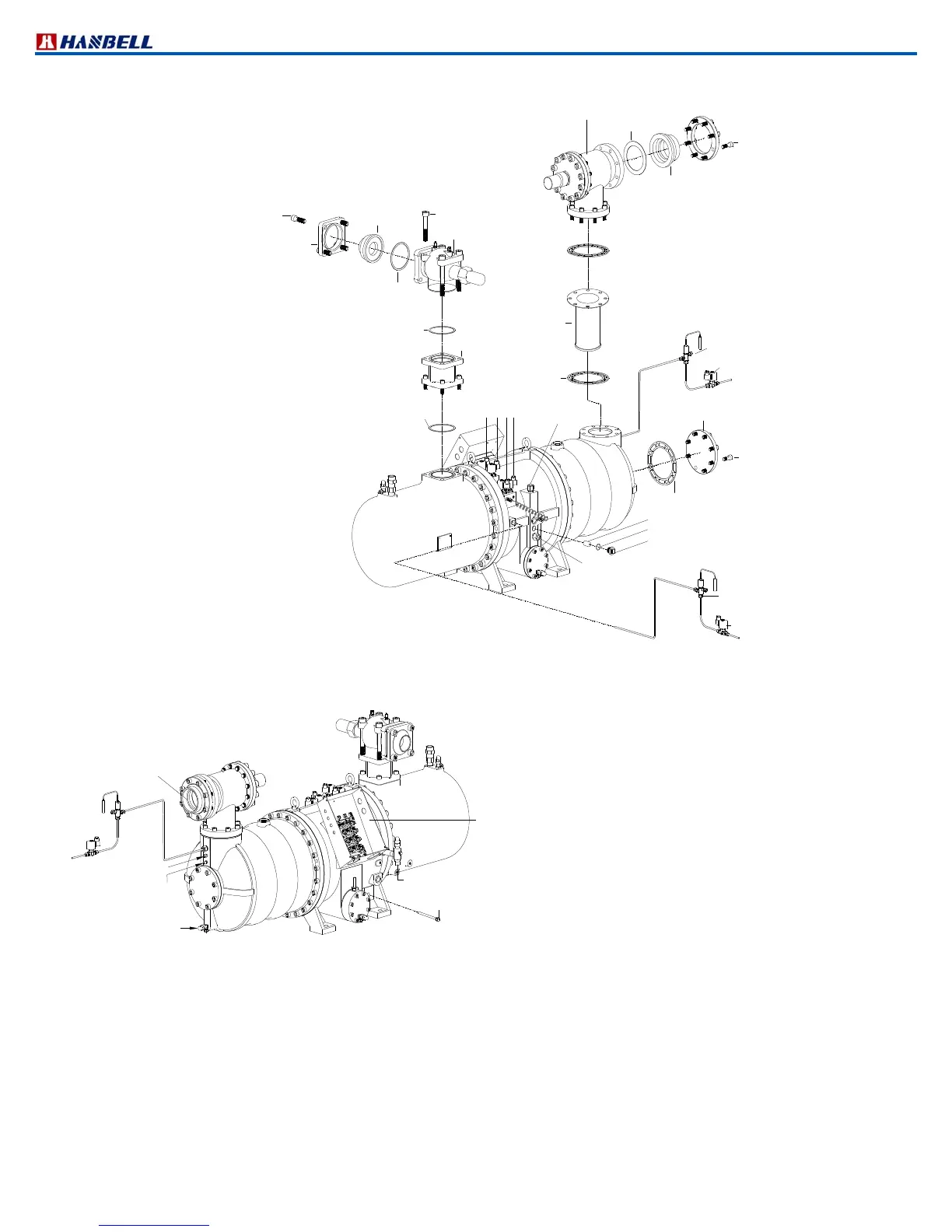

c. RC2710, RC2790, RC2830, RC2930
Check valve
Stop valve
Bolt
Discharge
flange
Gasket
Gasket
Gasket
Bolt
Bolt
Gasket
Gasket
Bushing
Liquid injection solenoid valve
Liquid injection expansion valve
Gasket
Bushing
Bolt
Oil cooler out
Oil cooler in
1
4
3
2
◆ Soleniod valve description 
1. Solenoid valve ( only stepless )
2. Solenoid valve ( 25% ,30% ,35% )
3. Solenoid valve ( 50% )
4. Solenoid valve ( 75% )
◆ Capacity control system module :
A. Stepless capacity control:
1 ( stepless ) + 2 ( 25% ,30% ,35%)
B. 4 step capacity control:
2 ( 25% ,30% ,35% ) + 3 ( 50% ) + 4 ( 75% )
C. Stepless+step capacity control:
1 + 2 + 3 + 4
Suction Filter
Suction filter Flange
Cable box
Power bolt
PTC terminal
PTC controller
connector
Refrigerant
service valve
Angle valve
Oil heater
Stop valve
Suction port
Discharge port
Stop pin
Oring
Plug
Liquid injection solenoid valve
Liquid injection expansion valve
ECO stop valve
( motor)
( Compression chamber )
( Only for application of oil cooler )
Gasket
