2.3 RC2 series compressor construction

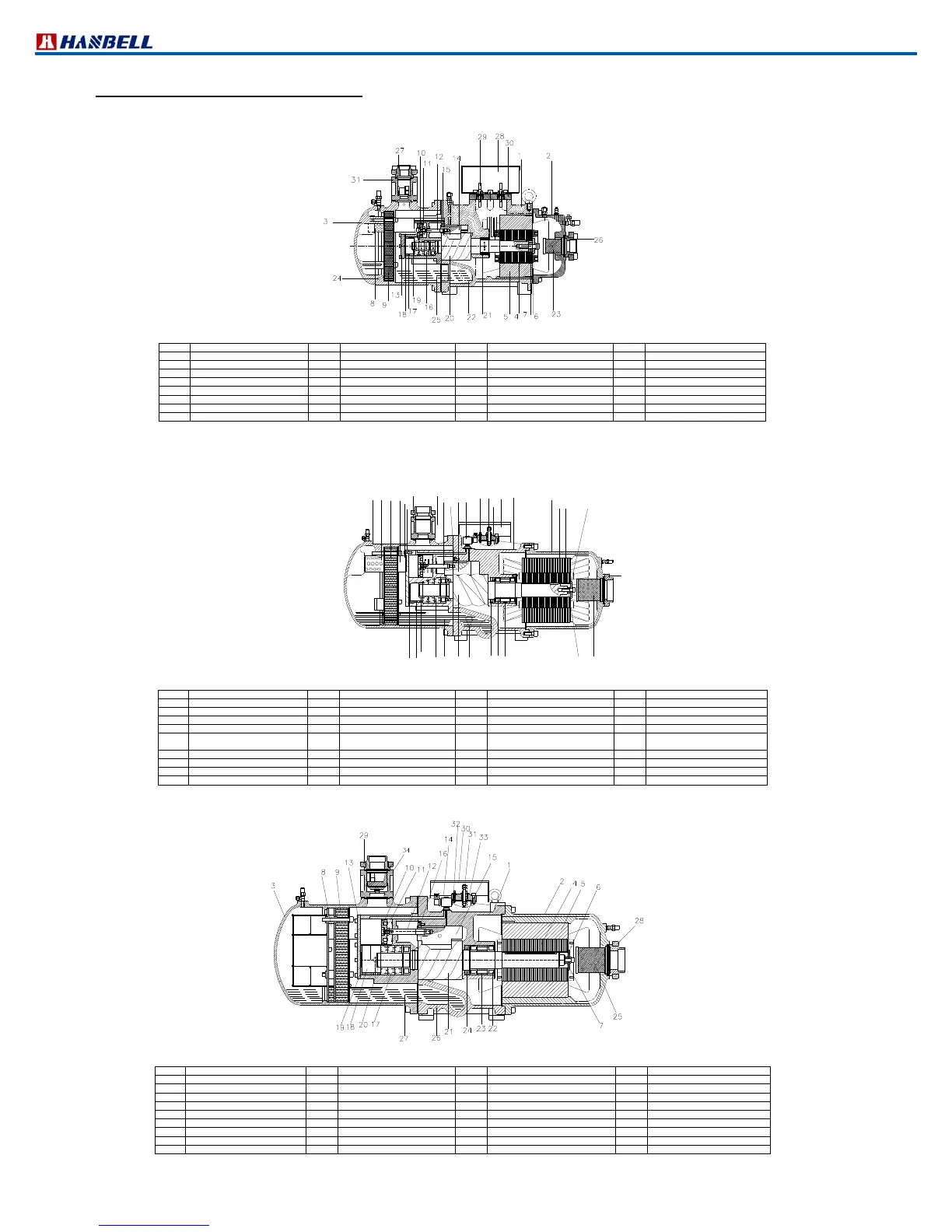

RC2100, RC2140, RC2180 Construction

Figure 1
Item
Description
Ite
m
Description
Item
Description
Item
Description
1 Compressor casing 9 Oil separator cartridge 17 Discharge fixed ring 25 Refrigeration Lubricant
2 Motor casing 10 Piston 18 Disc spring 26 Suction flange
3 Oil separator 11 Piston spring 19 Bearing lock nut 27 Discharge flange
4 Motor rotor assembly 12 Piston rod 20 Male rotor 28 Cable box
5 Motor stator assembly 13 Bearing seat’s cover plate 21 Suction bearings 29 Power bolt
6 Motor rotor washer 14 Modulation slide valve 22 Oil filler cartridge 30 Motor cable cover plate
7 Motor rotor spacer ring 15 Slide valve key 23 Suction filter 31 Discharge check valve
8 Oil separator baffle 16 Discharge bearings 24 Oil heater

RC2200, RC2230, RC2260, RC2300, RC2310, RC2320, RC2340, RC2370, RC2410, RC2430, RC2470,
RC2510, RC2580 Construction
1
2
3
45
6
7
8
9
10
11
13
12
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
3031
32
33
34

Figure 2
Item
Description
Item
Description
Item
Description
Item
Description
1 Compressor casing 10 Piston 19 Disc spring 28 Suction flange
2 Motor casing 11 Piston spring 20 Bearing lock nut 29 Discharge flange
3 Oil separator 12 Piston rod 21 Male rotor 30 Cable box
4 Motor rotor assembly 13 Bearing seat’s cover plate 22 Suction bearings 31 Power bolt
5 Motor stator assembly 14 Modulation solenoid valve 23
Suction bearings inner/outer spacer
ring
32 Thermostat terminals
6 Motor rotor washer 15 Modulation slide valve 24 Oil guiding ring 33 Motor cable cover plate
7 Motor rotor spacer ring 16 Slide valve key 25 Suction filter 34 Discharge check valve
8 Oil separator baffle 17 Discharge bearings 26 Oil heater
9 Oil separator cartridge 18 Discharge fixed ring 27 Refrigeration Lubricant

RC2550, RC2620 Construction
Figure 3
Item
Description
Item
Description
Item
Description
Item
Descript
ion
1 Compressor casing 10 Piston 19 Disc spring 28 Suction flange
2 Motor casing 11 Piston spring 20 Bearing lock nut 29 Discharge flange
3 Oil separator 12 Piston rod 21 Male rotor 30 Cable box
4 Motor rotor assembly 13 Bearing seat’s cover plate 22 Suction bearings 31 Power bolt
5 Motor stator assembly 14 Modulation solenoid valve 23 Suction bearings inner/outer spacer ring 32 Thermostat terminals
6 Motor rotor washer 15 Modulation slide valve 24 Oil guiding ring 33 Motor cable cover plate
7 Motor rotor spacer ring 16 Slide valve key 25 Suction filter 34 Discharge check valve
8 Oil separator baffle 17 Discharge bearings 26 Oil heater
9 Oil separator cartridge 18 Discharge fixed ring 27 Refrigeration Lubricant
