Technical Manual VERSION 2.0 -10-18-2018
7

 



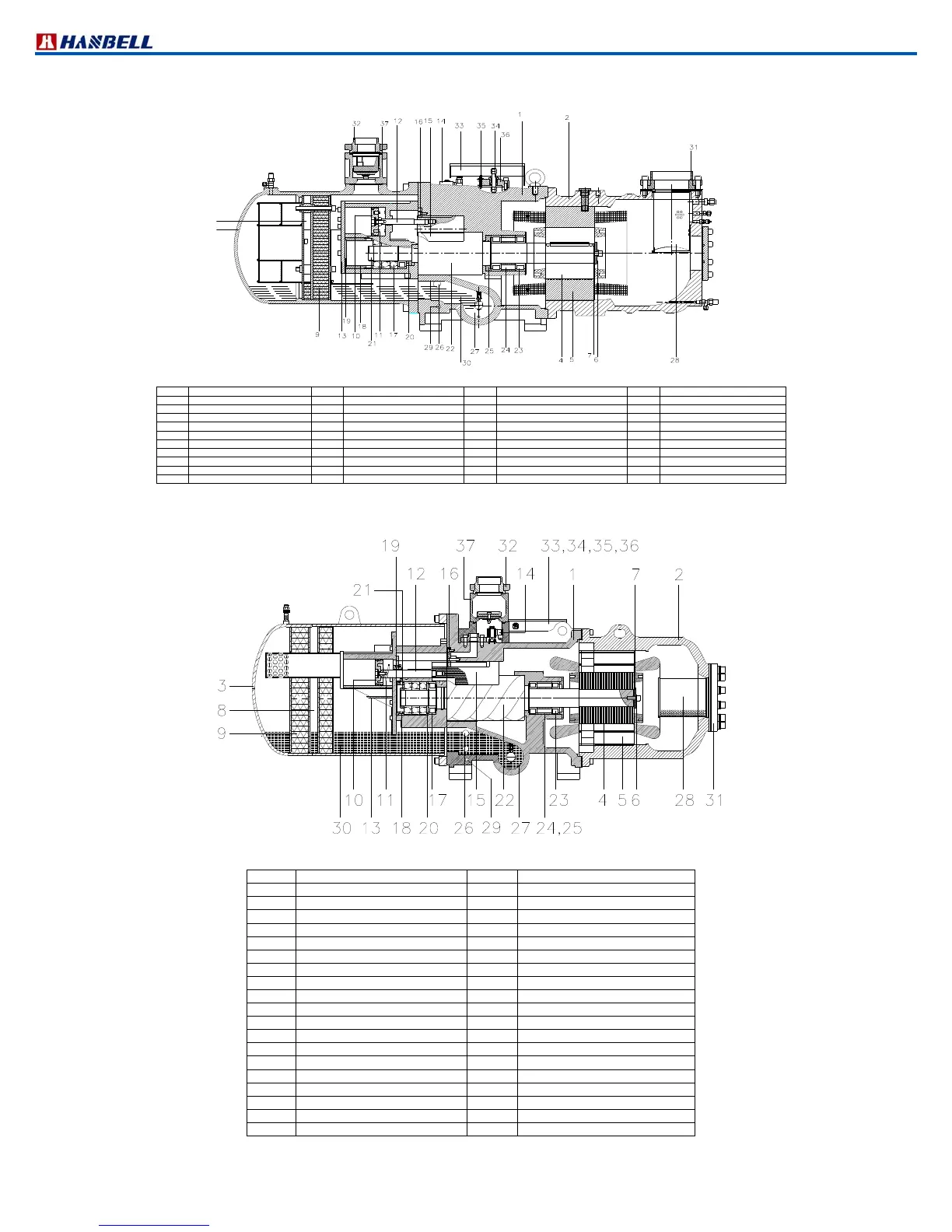

RC2710, RC2790, RC2830, RC2930 Construction
Figure 4
Item
Description
Item
Description
Item
Description
Item
Description
1 Compressor casing 11 Piston spring 21 Bearing lock nut 31 Suction flange
2 Motor casing 12 Piston rod 22 Male rotor 32 Discharge flange
3 Oil separator 13 Bearing seat cover plate 23 Suction bearings 33 Cable box
4 Motor rotor assembly 14 Modulation solenoid valve 24 Suction bearings inner/outer spacer ring 34 Power bolt
5 Motor stator assembly 15 Modulation slide valve 25 Oil guiding ring 35 Thermostat terminals
6 Motor rotor washer 16 Slide valve key 26 Oil level sight glass 36 Motor cable cover plate
7 Motor rotor spacer ring 17 Discharge bearings 27 Oil filler cartridge 37 Discharge check valve
8 Oil separator baffle 18 Discharge fixed ring 28 Suction filter
9 Oil separator cartridge 19 Disc spring 29 Oil heater
10 Piston 20 αBalance piston 30 Refrigeration Lubricant
RC21020, RC21130, RC21270, RC21530 Construction
Figure 5
Item Description Item Description
1 Compressor casing 20 Balance piston
2 Motor casing 21 Bearing slot nut
3 Oil separator 22 Male rotor
4 Motor rotor assembly 23 Suction bearings
5 Motor stator assembly 24 Suction bearings inner/outer spacer ring
6 Motor rotor washer 25 Oil guiding ring
7 Motor rotor spacer ring 26 Oil level sight glass
8 Oil separator Baffle 27 Oil filler cartridge
9 Oil separator cartridge 28 Suction filter
10 Piston 29 Oil heater
11 Piston spring 30 Refrigeration Lubricant
12 Piston rod 31 Suction flange
13 Bearing seat cover plate 32 Discharge flange
14 Modulation solenoid valve 33 Cable box
15 Modulation slide valve 34 Power bolt
16 Slide valve key 35 Thermostat terminals
17 Discharge bearings 36 Motor cable cover plate
18 Discharge fixed ring 37 Discharge check valve
19 Disc spring
