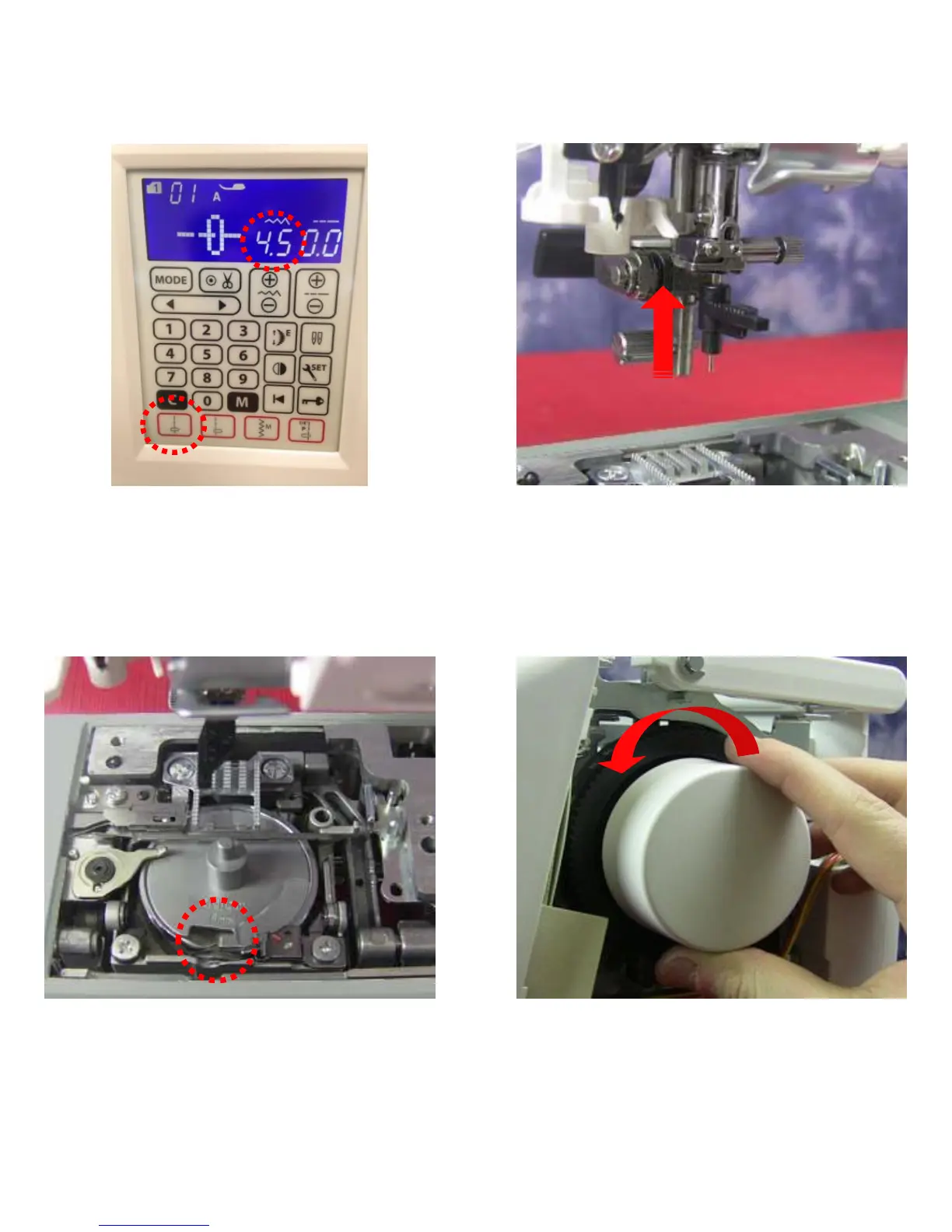

Needle Bar Height (1 of 2)
1. Turn the machine on and select
straight-stitch, center needle
position. Now remove the needle plate
and the presser foot with shank.
2. Attach the needle bar height gauge
with the black post sticking out toward
you. Be sure the gauge is all of the way
up into the needle bar.
3. Insert the 9mm radial timing gauge #
202112101 from HQ Stitch tool kit
#SM49280. Make sure the tip of the
hook is touching the flat spot of the
gauge at all times. This is necessary for
both proper timing checks and
adjustments.
4. Turn the hand wheel toward you to
bring the needle bar down.
38
