handi quilter HQ Stitch 710 - Test 08: FC (Foot Control)

Diagnostic Test 08 / FC (Foot Control)

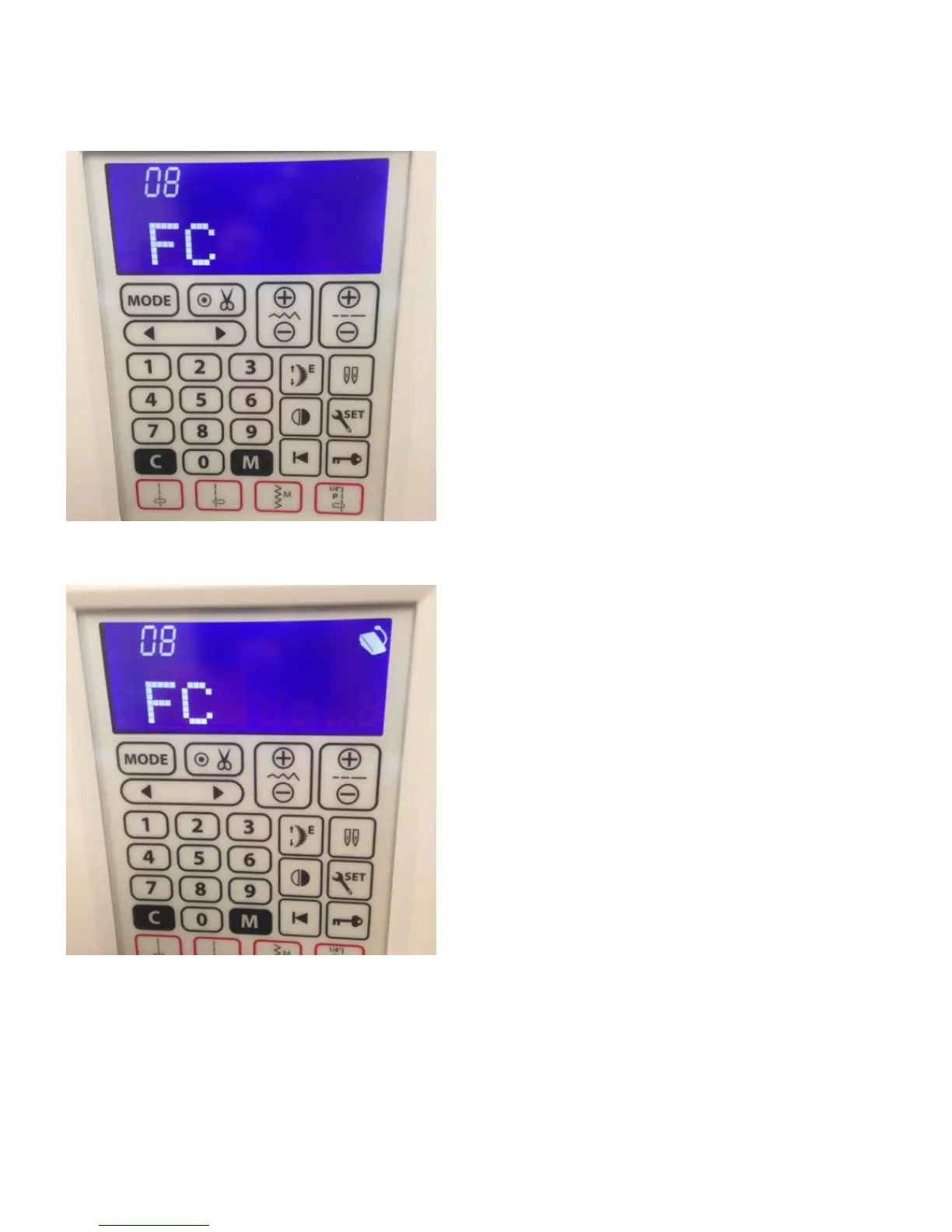

1. When test 08 is selected, the LCD displays
“08” and “FC”. Attach the foot control to the
machine. Depress the foot control as far as it
goes and then release it.
2. The foot control symbol appears when the
foot control is attached.
Buzzer sounds when the foot control is deeply
depressed or released.
Buzzer sounds when the foot control is
connected or disconnected.
3. Fault note: If the control symbol does not
appear or the buzzer does not sound.
See Diagnostics Appendix 08 for more
information.
82
